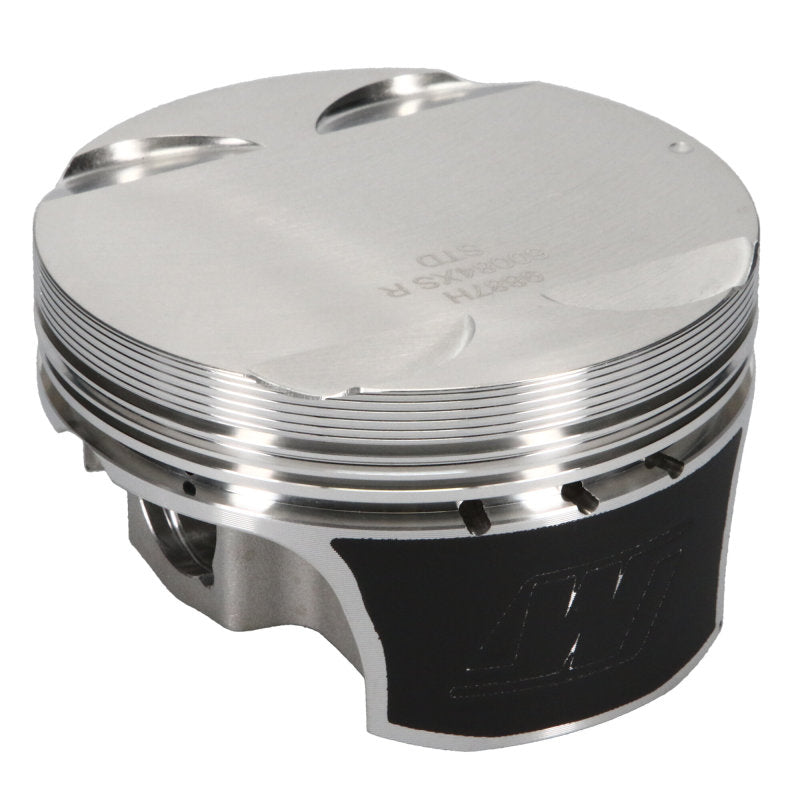

Wiseco's new ArmorGlide skirt coating is the result of testing, development, and benchmarking through Wiseco in-house dyno prog.. The outcome – minimized friction, maximum horsepower, and improved wear resistance. Not only is ArmorGlide a high-tech lubricant that reduces friction, but it also allows the piston to be fitted tighter within the bore than a non-coated piston. Better ring seal reduces noise from piston rock. ArmorGlide is being applied to selected pistons.
Bore (in):3.630 in.

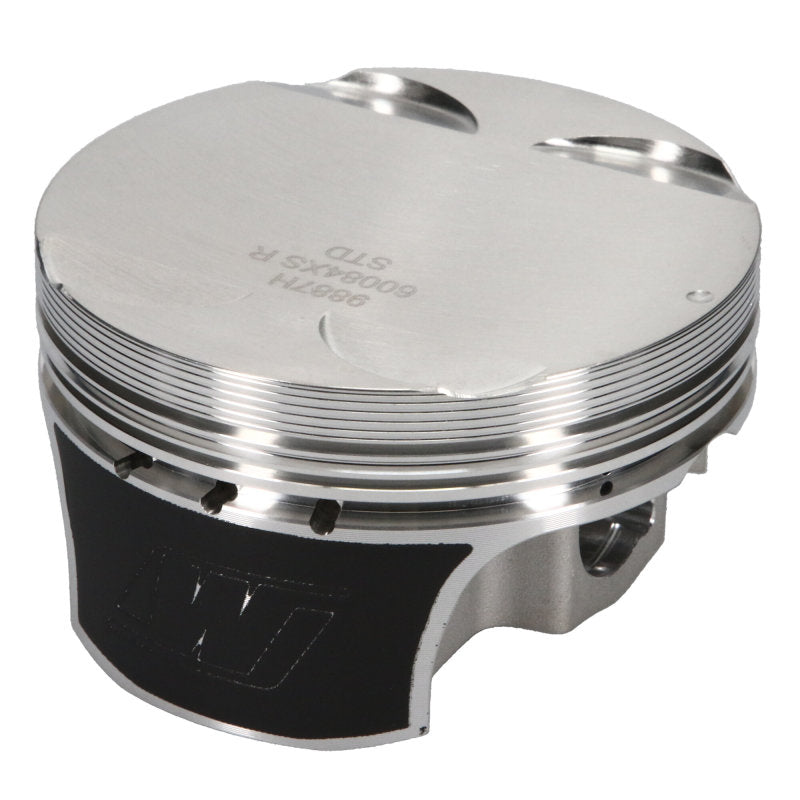

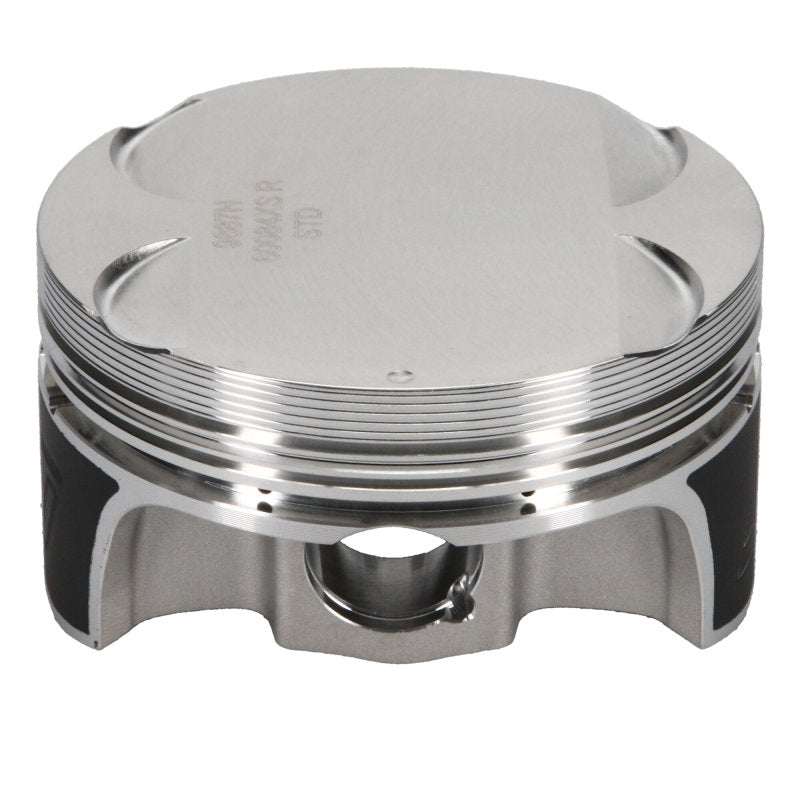

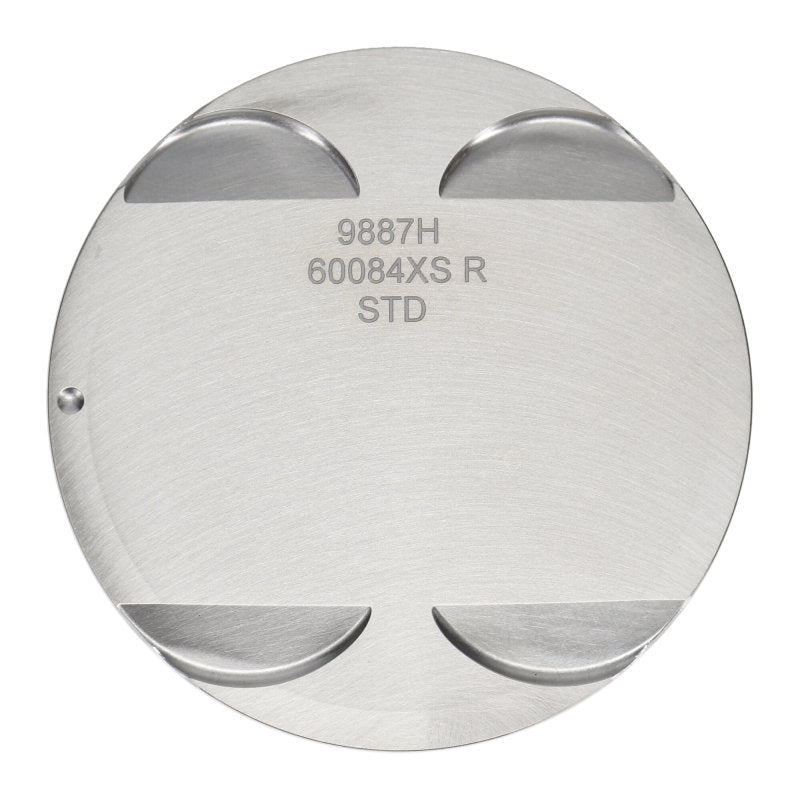

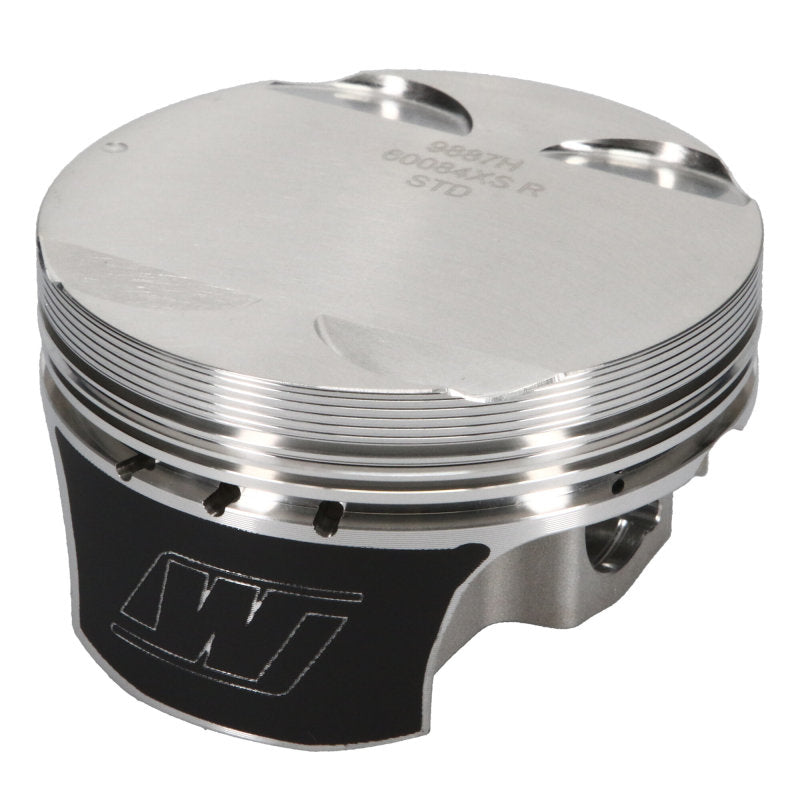

Piston Style:Dish, with four valve reliefs
Piston Material:Forged aluminum
Compression Distance (in):1.176 in.
Piston Head Volume (cc):-2.00cc
Wrist Pin Style:Press-fit or floating
Pin Diameter (in):0.866 in.
Top Ring Thickness:1.5mm
Top Ring Material:Steel
Top Ring Facing Material:Gas nitrided
Second Ring Thickness:1.5mm
Second Ring Material:Cast iron
Second Ring Facing Material:Phosphate coated
Oil Ring Thickness:3.0mm
Oil Ring Material:Stainless steel
Oil Ring Tension:Standard

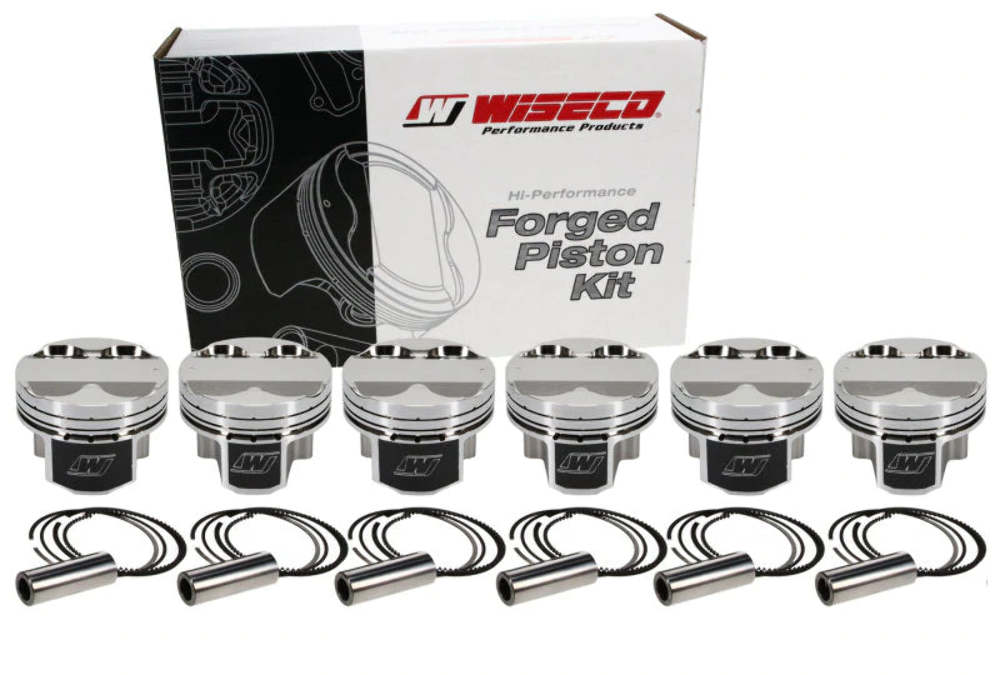

Quantity:Sold as a kit
Part # K0085XS
