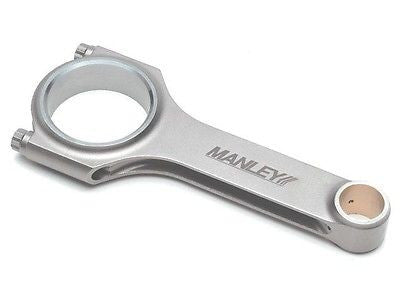

Manley H-Beam Connecting Rods Toyota Supra MKIV 2JZ-GTE 14027-6

Description

For the budget conscious enthusiast, we also offer our very high quality, yet economical, H-Beam design connecting rods. These are also manufactured from 4340 alloy forgings. They are fully machined, heat treated, stress relieved, shot peened, and magnafluxed. They also are built standard with 3/8" ARP 2000 bolts.

All Manley connecting rod sets, are weight matched to ± 1.5 grams, big and small end bores are final honed to a tolerance of ± .0002", critical bend and twist attributes are held to a minimum, and exacting attention is paid to every detail by our final inspection department; thus rendering a finished product that is second to none .

Part Number: 14027-6

Application:
Toyota 2JZGE/2JZGTE Engines

Specs:

Center-to-Center: 5.590"
Big End Width: 1.015"
Pin Diameter: .866" (22mm )
Big End Bore: 2.167"
Pin Bore: .8671"
Weight: 552g
