HPT Valve Spring Compressor Tool- for Honda K20a, K24a, F20C, F22C S2000

Description

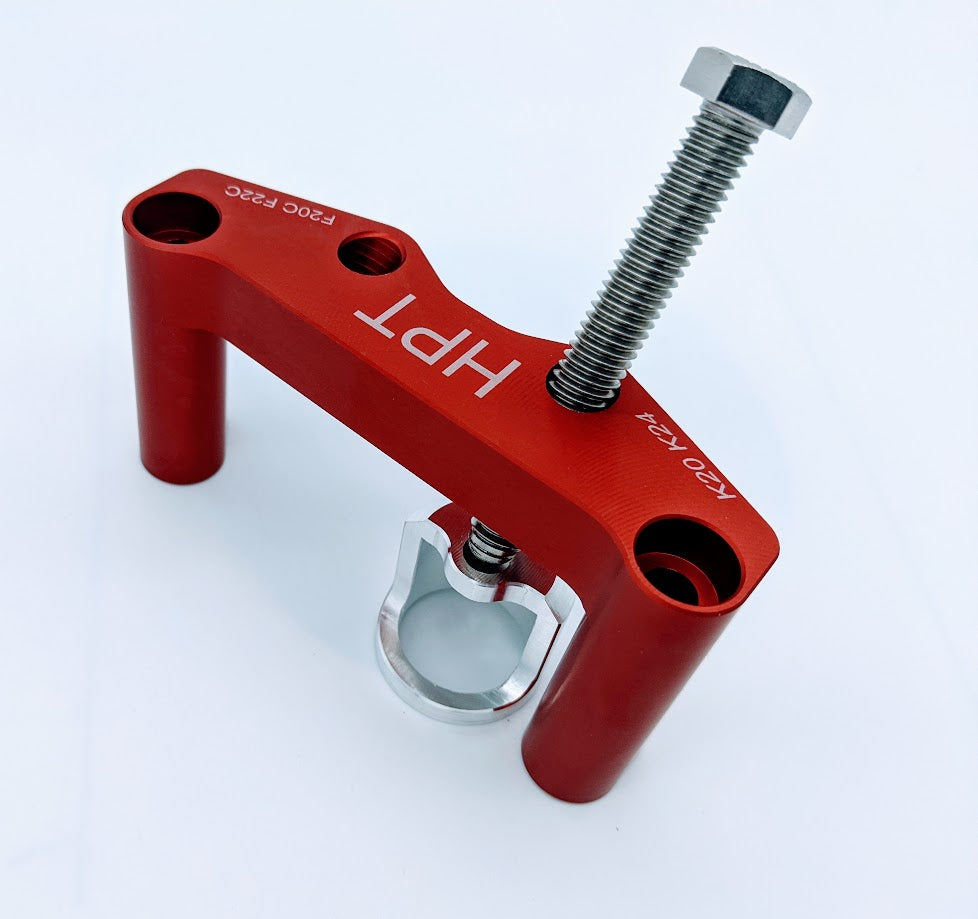

HPT Valve Spring Compressor Tool V2 – For Honda K20, K24, F20C, F22C Engines

Take your valve train work to the next level with the HPT Valve Spring Compressor Tool – Version 2.0, redesigned from the ground up for better fitment, stronger materials, and easier use, especially on in-car engine service.

This tool is perfect for Honda K-Series (K20/K24) and F-Series (F20C/F22C) engines, including Honda S2000 applications. Unlike the older version, V2.0 eliminates interference with the intake manifold or fuel rail, making it easier to use with the engine still installed in the car.

✅ Key Features:

• One-piece billet aluminum construction – no weak welds or joints

• Red anodized finish – durable and corrosion-resistant

• Laser-engraved branding

• Redesigned retainer cup – 30% larger working area

• Works with engine in the car – no need to remove cylinder head

• Ideal for replacing valves, valve springs, retainers, and valve seals

• 100% Made in the USA

🔧 How It Works:

1. Bolt the tool onto the cylinder head using the included hardware

2. Place the retainer cup on the spring/retainer

3. Use the long adjustment bolt to compress the spring

4. Remove keepers with the included magnetic screwdriver

5. Release the bolt and remove the spring

6. Repeat as needed

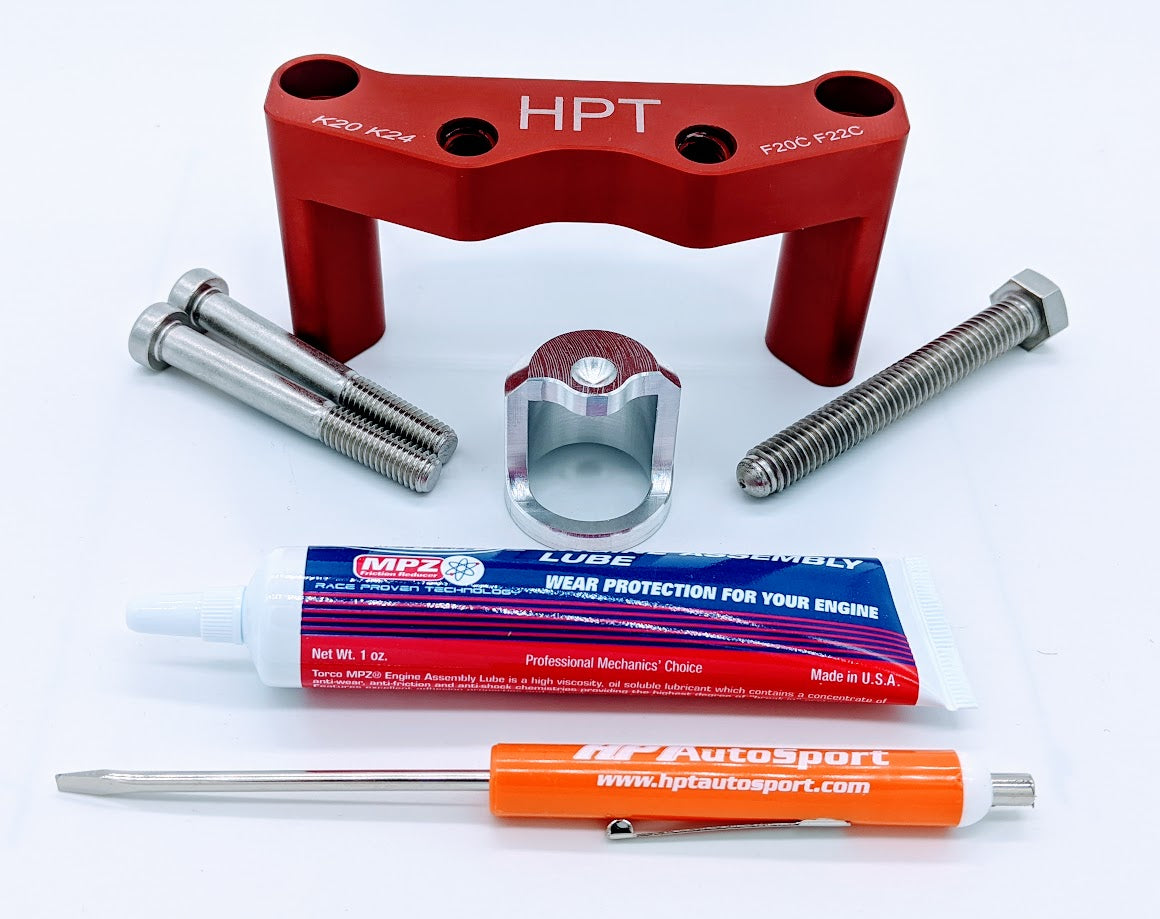

📦 Kit Includes:

• (1) Valve Spring Tool w/ Retainer Cup

• (2) Bolts for mounting to cylinder head

• (1) Long adjustment bolt

• (1) HPT magnetic screwdriver

• (1) Packet of Torco assembly lube

Part Number: HPT-K20-VST

🔩 Vehicle Compatibility:

• Honda K20A / K20Z / K24A Engines

• Honda S2000 F20C / F22C Engines

• Works on K-Series & F-Series DOHC VTEC engines

Note: Tool is designed for OEM-style cylinder heads. Some aftermarket heads may require slight modification or custom fitment.

⚠️ Please Note:

• No returns accepted on tools – double-check compatibility before purchase

• Professional installation or mechanical knowledge is recommended

🧰 Whether you're doing a head refresh, cam upgrade, or valve seal job, the HPT V2 Valve Spring Compressor Tool is the go-to solution for in-car servicing on your K- or F-series engine.
