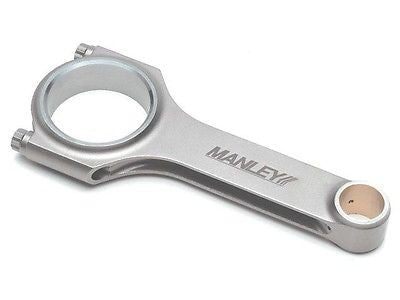

Manley H-Beam Connecting Rods Nissan KA24 14006-4
For the budget conscious enthusiast, we also offer our very high quality, yet economical, H-Beam design connecting rods. These are also manufactured from 4340 alloy forgings. They are fully machined, heat treated, stress relieved, shot peened, and magnafluxed. They also are built standard with 3/8" ARP 2000 bolts.
All Manley connecting rod sets, are weight matched to ± 1.5 grams, big and small end bores are final honed to a tolerance of ± .0002", critical bend and twist attributes are held to a minimum, and exacting attention is paid to every detail by our final inspection department; thus rendering a finished product that is second to none .
Part # 14006-4
Nissan KA24 motor
Center to Center: 6.495"
Big End Bore: 2.086"
Big End Width: .973"
Pin Diameter: .827" (21mm)
Pin Bore: .8281"
Gram Weight: 618
