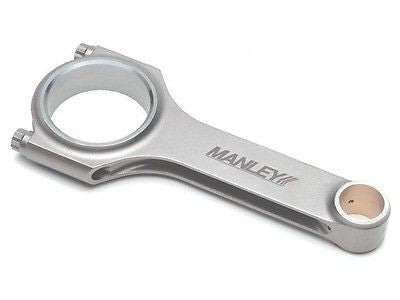

Manley H-Beam Connecting Rods Fits Nissan SR20 S13 S14 14023-4
For the budget conscious enthusiast, we also offer our very high quality, yet economical, H-Beam design connecting rods. These are also manufactured from 4340 alloy forgings. They are fully machined, heat treated, stress relieved, shot peened, and magnafluxed. They also are built standard with 3/8" ARP 2000 bolts.
All Manley connecting rod sets, are weight matched to ± 1.5 grams, big and small end bores are final honed to a tolerance of ± .0002", critical bend and twist attributes are held to a minimum, and exacting attention is paid to every detail by our final inspection department; thus rendering a finished product that is second to none.
Part # 14023-4
- SR20 Engine
Pin Bore: .8671"
Big End Bore: 2.008"
Pin Diameter: .866" (22mm )
Big End Width: .900"
