Manley H-Beam Connecting Rods 3S-GTE MR2 Alltrac Celica 14008-4
Description

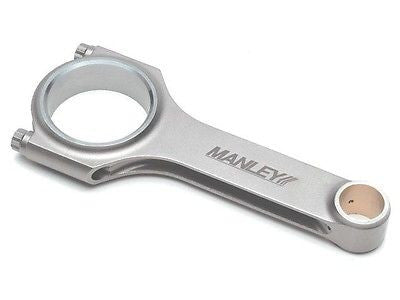

For the budget conscious enthusiast, we also offer our very high quality, yet economical, H-Beam design connecting rods. These are also manufactured from 4340 alloy forgings. They are fully machined, heat treated, stress relieved, shot peened, and magnafluxed. They also are built standard with 3/8" ARP 2000 bolts.
All Manley connecting rod sets, are weight matched to ± 1.5 grams, big and small end bores are final honed to a tolerance of ± .0002", critical bend and twist attributes are held to a minimum, and exacting attention is paid to every detail by our final inspection department; thus rendering a finished product that is second to none .
Part # 14008-4
Application's:
- 3S-GTE motor
Specs:
Center to Center Length -- 5.428"
Big End Bore -- 2.008"
Big End Width -- 1.055"
Pin Diameter -- 0.866" (22mm)
Pin Bore -- 0.8671"
Gram Weight -- 564
