Darton Mid Block Sleeve Kit - K24 - ILX/TSX/Accord/Civic/Element - 2003-2015 - 400-200-P

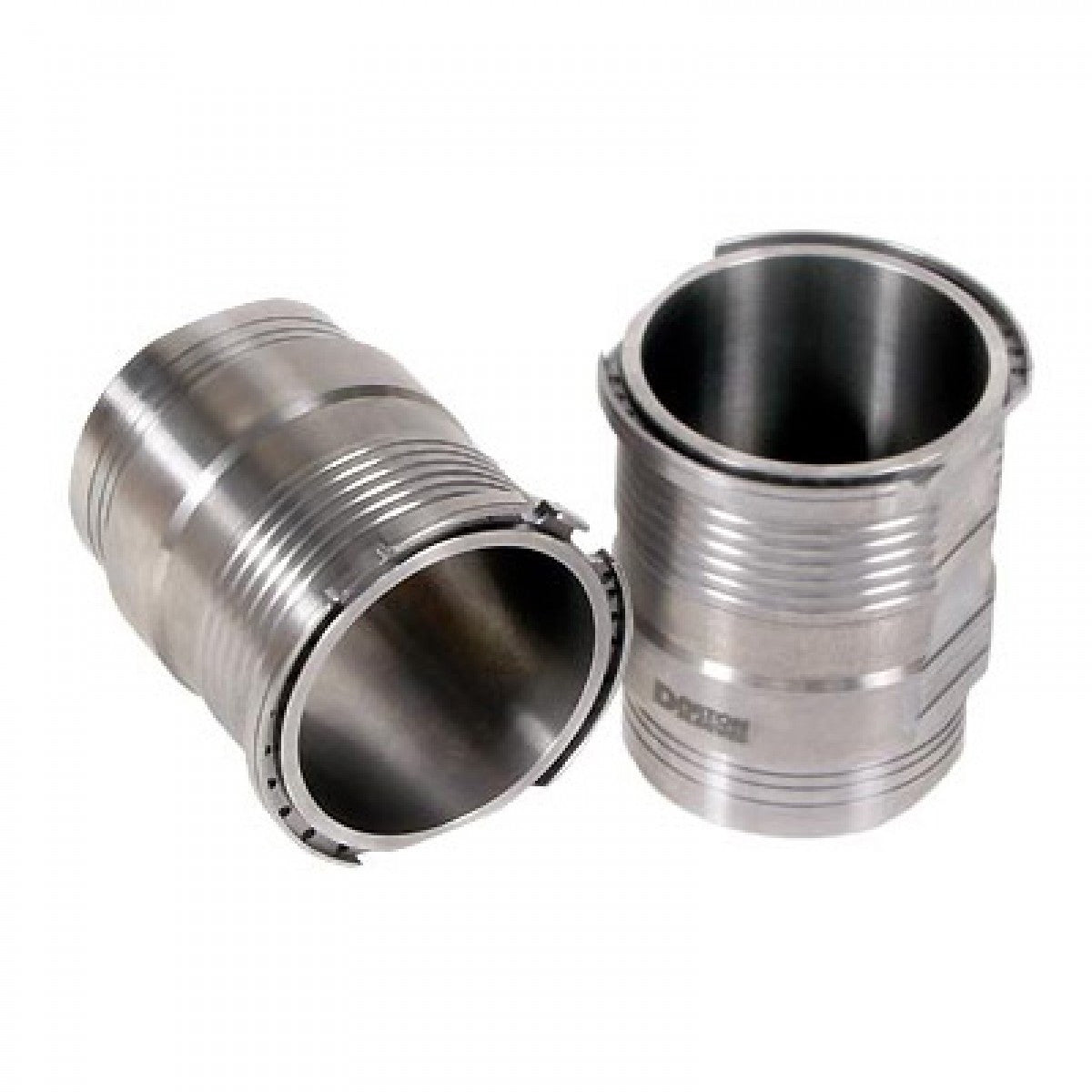

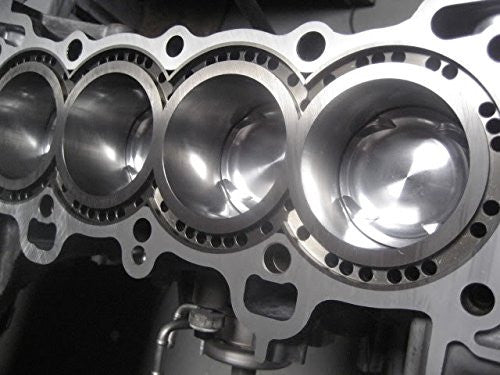

Many production cast iron and aluminum blocks suffer from a design weakness of cylinder stability by nature of poor support at the upper deck area. The manufacturing process of "cast in sleeves" provides for economy of scale in low horsepower engines, but does not accommodate high horsepower, high boost, or larger bore sizes. Darton has engineered a superior patented solution by using a unique designed cylinder sleeve which when siamesed and nested, creates a solid deck of sleeve flanges held in tension, reinforcing the upper deck area and provides for individual replacement with what they call Modular Integrated Deck (MID).
In addition, Darton designs' manage and enhance water flow from block to head to promote stability of cooling and all sleeves are of the "Wet" design. The enhanced water flow in and around the flange area is possible because of ported water flow control engineering Darton calls "Swirl Coolant Technology". Heat is also dissipated through the use of "Register Fins". While heat is generally considered to translate into energy, high resident heat in the combustion chamber can lead to detonation, the single highest cause of engine failure in the high horsepower regimes.

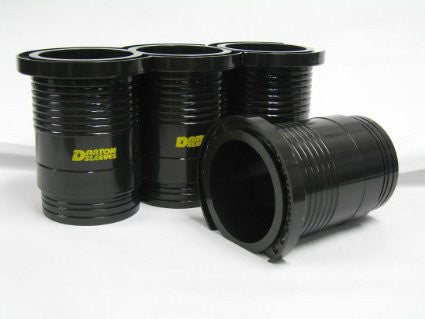

Darton supplies the MID sleeves with a phosphate coating. Phosphate coating is the treatment with a solution whereby the surface of the metal is covered with an integral, protective layer of insoluble crystalline. This microcrystalline structure on the MID sleeve makes it optimal for corrosion and rust resistance. Additionally this adds another protective barrier for the o-rings in the lower register of the sleeve extending their lifespan even longer.
Darton MID Key Benefits:
- Cast iron performance in an aluminum block
- Improved block integral strength
- Improved cooling
- "Wet sleeve" replace-ability
- Increased horsepower output potential
- Superior oil and compression control
- Superior cylinder sealing and ring wear
- Street or strip application
- Bulletproof Darton ductile iron
- 130,000-psi tensile strength
- Bore: 3.415in
- Outer Diameter: 3.850in
- Wall Thickness: 0.217in
- OAL: 5.800in
- Flange Thickness: 0.500in
- Flange Diameter: 4.826in
- Application: 87mm to 90mm MAX
APPLICATIONS: 2013 Acura ILX, 2014 Acura ILX, 2015 Acura ILX, 2004 Acura TSX, 2005 Acura TSX, 2006 Acura TSX, 2007 Acura TSX, 2008 Acura TSX, 2009 Acura TSX, 2010 Acura TSX, 2011 Acura TSX, 2012 Acura TSX, 2013 Acura TSX, 2014 Acura TSX, 2003 Honda Accord, 2004 Honda Accord, 2005 Honda Accord, 2006 Honda Accord, 2007 Honda Accord, 2008 Honda Accord, 2009 Honda Accord, 2010 Honda Accord, 2011 Honda Accord, 2012 Honda Accord, 2012 Honda Civic SI, 2013 Honda Civic SI, 2003 Honda Element, 2004 Honda Element, 2005 Honda Element, 2006 Honda Element, 2007 Honda Element, 2008 Honda Element, 2009 Honda Element, 2010 Honda Element, 2011 Honda Element, 2012 Honda Element, 2013 Honda Element
