Product Description:

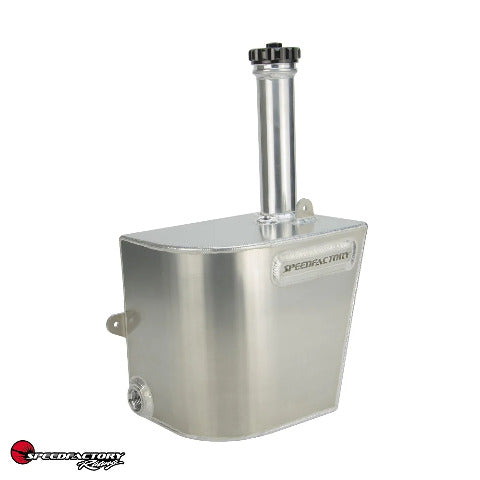

SpeedFactory Racing Front-Mount Drag Race Fuel Cell — SKU SF‑02‑090
Fits: EG (’92–95) Civic, EK/DC Integra (’94–01) – Left Side Frame Rail Mount
SpeedFactory answers racer requests with this engineered fuel cell, designed for maximum safety, performance, and compact fitment in drag or high-speed builds. Featuring premium hardware, it replaces OEM rear tank setups with a lightweight, front-left chassis-mounted unit.
SpeedFactoryRacing
+12
SpeedFactoryRacing
+12
IPGparts
+12
🔧 UNIQUE FEATURES:
Anodized 2.5″ billet fill cap with built-in rollover vent valve to prevent pressure/vacuum build-up and fuel spillage in a crash — mounted at the highest point for proper venting.
kstuned.com
+6
IPGparts
+6
JHPUSA
+6
Female -12AN ORB feed fitting with internal pickup tube ensures maximum flow and prevents cavitation during launch or slosh.
Female -10AN ORB return fitting, directing returned fuel to the pickup inlet for reliable low-level operation.
Straight vertical filler neck simplifies filling and fuel level viewing.
2.2-gallon capacity, ideal for turbo/methanol builds and fits under slicks up to 24.5″ diameter.
SpeedFactoryRacing
+6
IPGparts
+6
SpeedFactoryRacing
+6

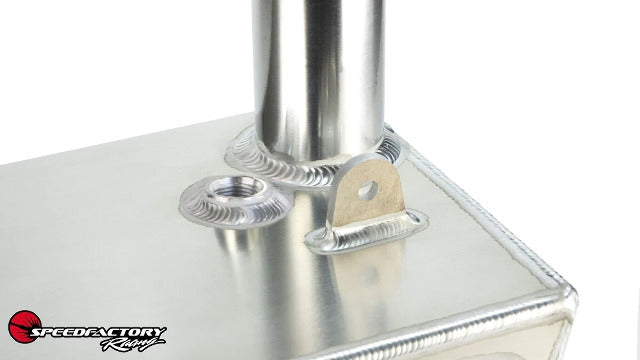

Precision TIG-welded construction with laser-cut SpeedFactory badge for durability and aesthetics.
Optional mounting tabs, available welded or loose for custom fabrication.
Tested to fit: EG Civic (1992–95), EK Civic (1996–98), DC Integra (1994–2001).
Dynamic Performance Racing
+12
IPGparts
+12
RevlineKC
+12
Requires minor fabrication for other chassis or late-model front ends; not compatible with 1999–2000 Civic EK front clip without selecting the specific EK version.
hptautosport.com
+5
IPGparts
+5
kstuned.com
+5

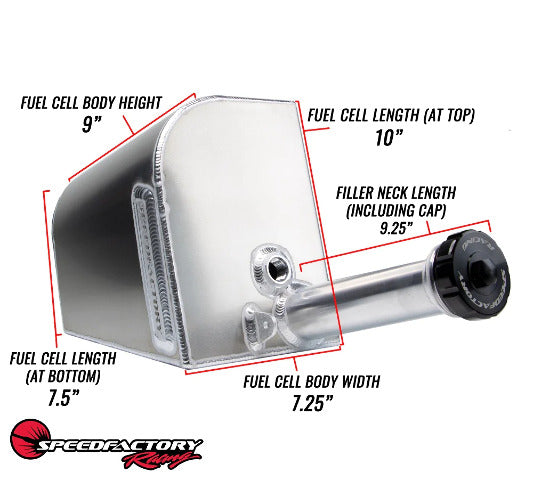

🔍 SPECIFICATIONS:
Material: Lightweight aluminum alloy
Capacity: ~2.2 gallons (8.4L)
Fuel lines: -12AN feed, -10AN return standard
Mounting: Left front frame rail
Fitment: EG/DC (’92–’95 Civic, ’94–01 Integra) or EK-specific version for ’99–’00 Civic
🚀 WHY PERFORMANCE USERS CHOOSE THIS CELL
Drastically reduces weight compared to OEM tank setups by bringing fuel closer to engine.
Dynamic Performance Racing
+9
JHPUSA
+9
hptautosport.com
+9
Provides consistent fuel delivery during hard launches, cornering, and variable fuel load scenarios.
Supports crash bar clearance with low-profile mounting.
Built for high-pressure fuels (including methanol/E85) under extreme operating conditions.
📦 WHAT’S IN THE BOX:
Front-mount fuel cell (with or without welded tabs)
2.5″ vented fill neck and cap
Integrated fuel pickup tube assembly
Fittings pre-installed
Installation instructions and welding brackets (if not pre-welded)
⚠️ IMPORTANT NOTES BEFORE ORDERING:
Check your vehicle’s front-end design—referencing fitment diagrams ensures compatibility.

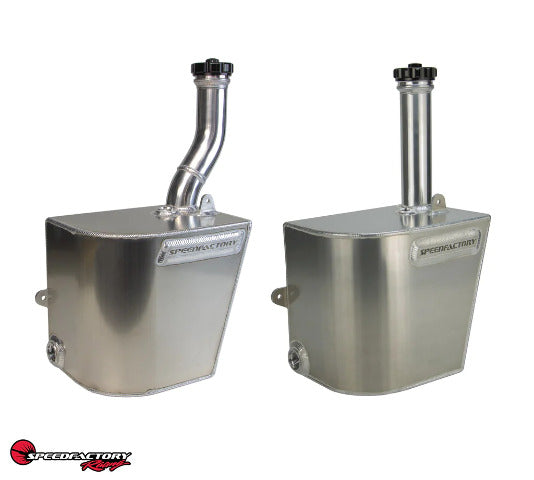

Choose EK ’99–’00 variant if your build uses a late EK front clip.
Welding may be required unless pre-welded option is selected.
Ideal for drag, strip, or track-focused builds.
