Applications:
NEW 2019 Style K-Tuned 90mm Throttle Bodies
KTD-TB9-K10
KTD-TB9-B10

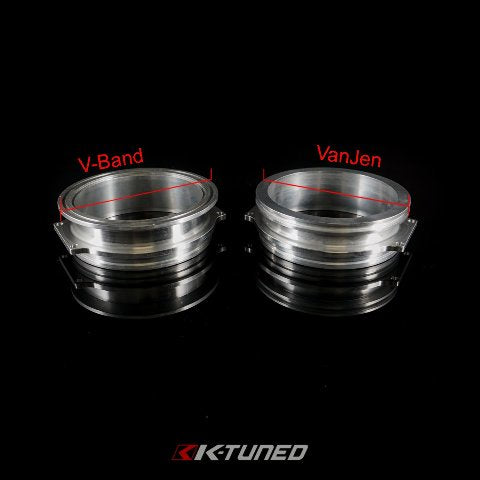

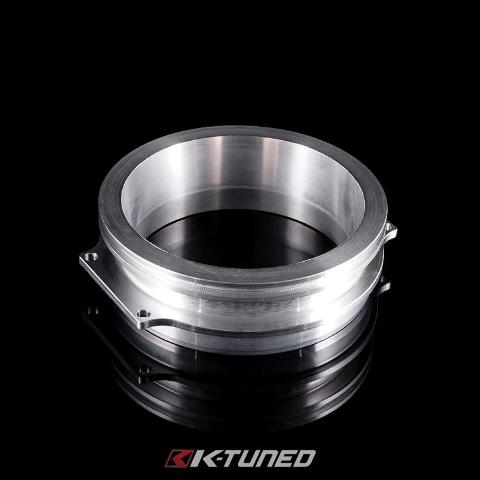

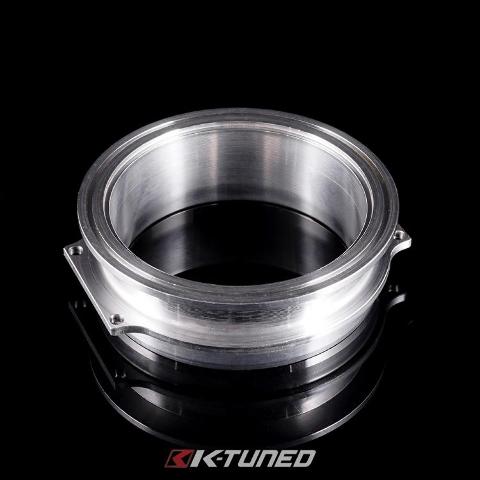

Interchangeable inlets for K-Tuned Throttle Bodies. Easily swap out the standard barb fitting to a V-Band or Vanjen fitting in 3.5" or 4". NO MORE WELDING THROTTLE BODIES, just remove the 4 bolts holding the standard inlet and replace it with the new inlet of your choice. You will reuse the o-ring supplied with your throttle body.

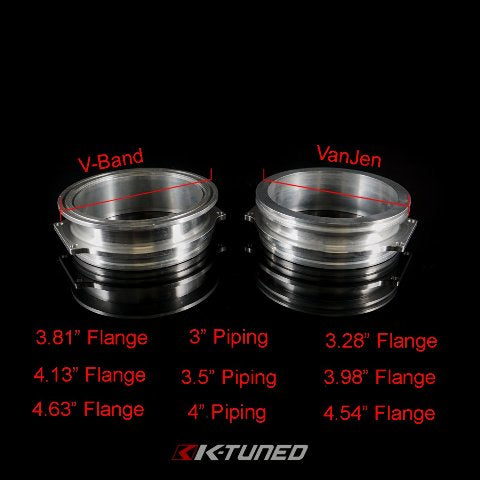

Dimensions:
Outer Diameters
Clamp Size V-Band Clamp VanJen Clamp
3in 3.81in 3.28in
3.5in 4.13in
3.98in
4in 4.63in 4.54in
