Darton Mid Block Sleeve Kit - F22 - Accord/Prelude/CL - 1990-1997 - 400-150

Retail Price:

$684.95

Price Match

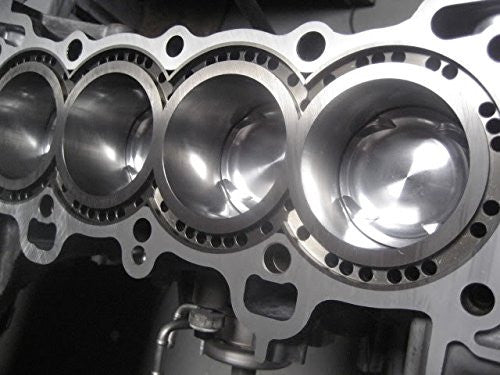

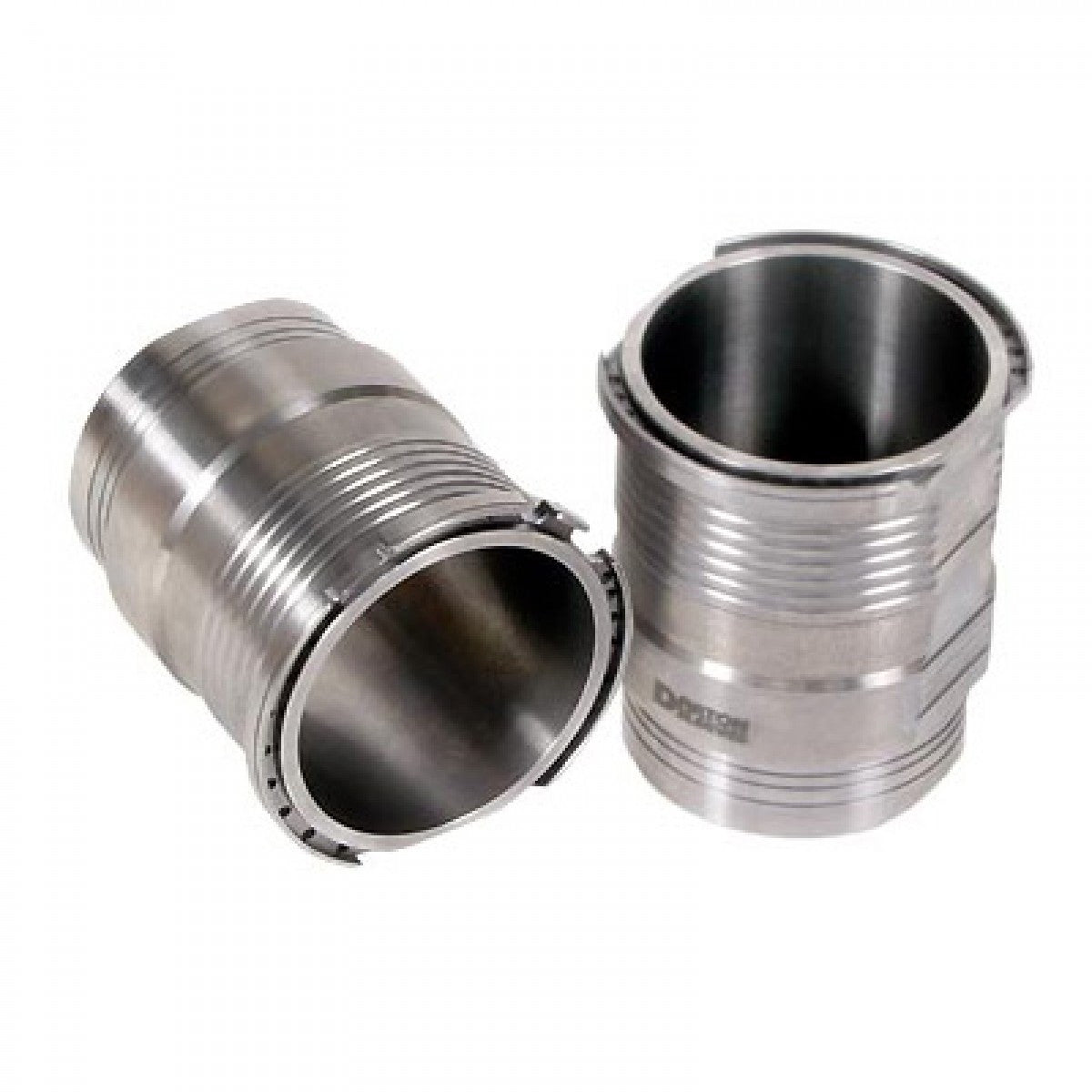

Many production cast iron and aluminum blocks suffer from a design weakness of cylinder stability by nature of poor support at the upper deck area. The manufacturing process of "cast in sleeves" provides for economy of scale in low horsepower engines, but does not accommodate high horsepower, high boost, or larger bore sizes. Darton has engineered a superior patented solution by using a unique designed cylinder sleeve which when siamesed and nested, creates a solid deck of sleeve flanges held in tension, reinforcing the upper deck area and provides for individual replacement with what they call Modular Integrated Deck (MID).

In addition, Darton designs' manage and enhance water flow from block to head to promote stability of cooling and all sleeves are of the "Wet" design. The enhanced water flow in and around the flange area is possible because of ported water flow control engineering Darton calls "Swirl Coolant Technology". Heat is also dissipated through the use of "Register Fins". While heat is generally considered to translate into energy, high resident heat in the combustion chamber can lead to detonation, the single highest cause of engine failure in the high horsepower regimes.

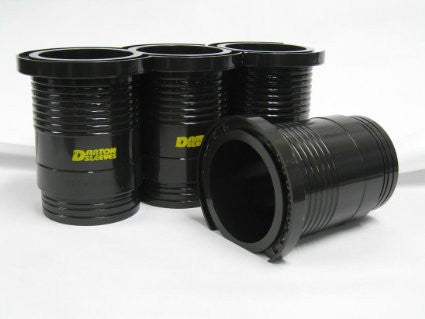

Darton supplies the MID sleeves with a phosphate coating. Phosphate coating is the treatment with a solution whereby the surface of the metal is covered with an integral, protective layer of insoluble crystalline. This microcrystalline structure on the MID sleeve makes it optimal for corrosion and rust resistance. Additionally this adds another protective barrier for the o-rings in the lower register of the sleeve extending their lifespan even longer.

Darton MID Key Benefits:

  • Cast iron performance in an aluminum block
  • Improved block integral strength
  • Improved cooling
  • "Wet sleeve" replace-ability
  • Increased horsepower output potential
  • Superior oil and compression control
  • Superior cylinder sealing and ring wear
  • Street or strip application
  • Bulletproof Darton ductile iron
  • 130,000-psi tensile strength

Specifications:

  • Bore: 3.338in
  • Outer Diameter: 3.850in
  • Wall Thickness: 0.256in
  • OAL: 5.800in
  • Flange Thickness: 0.500in
  • Flange Diameter: 4.826in
  • Application: 85mm to 90mm MAX



PART# 400-150

APPLICATIONS: 1997 Acura CL, 1990 Honda Accord, 1991 Honda Accord, 1992 Honda Accord, 1993 Honda Accord, 1994 Honda Accord, 1995 Honda Accord, 1996 Honda Accord, 1997 Honda Accord, 1992 Honda Prelude, 1993 Honda Prelude, 1994 Honda Prelude, 1995 Honda Prelude, 1996 Honda Prelude
