Acuity K Series Fuel Rail -BLACK -for Honda /Acura K20 K24 RSX Civic Si

  • $178.00
    Unit price per


Description

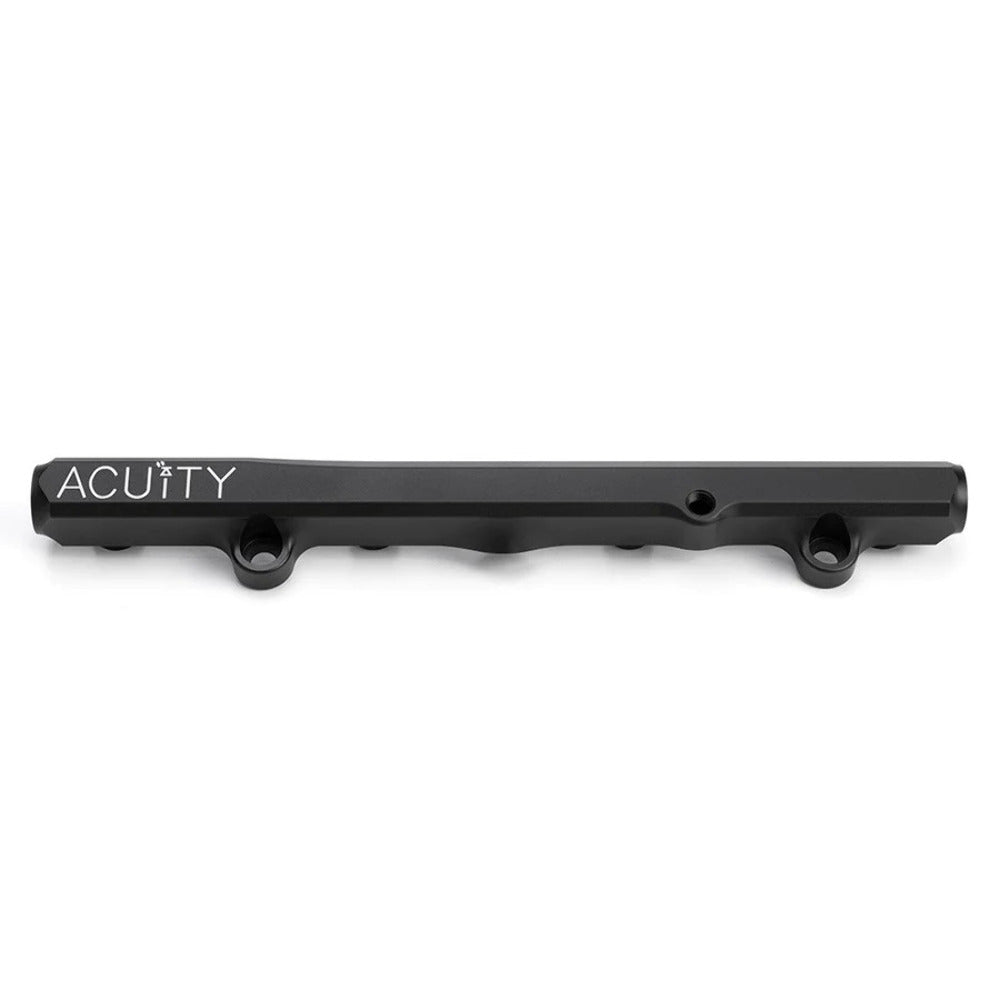

ACUITY 1913-BLK 15mm K-Series Fuel Rail For Honda & Acura K-Series Engines

Part # 1913-BLK

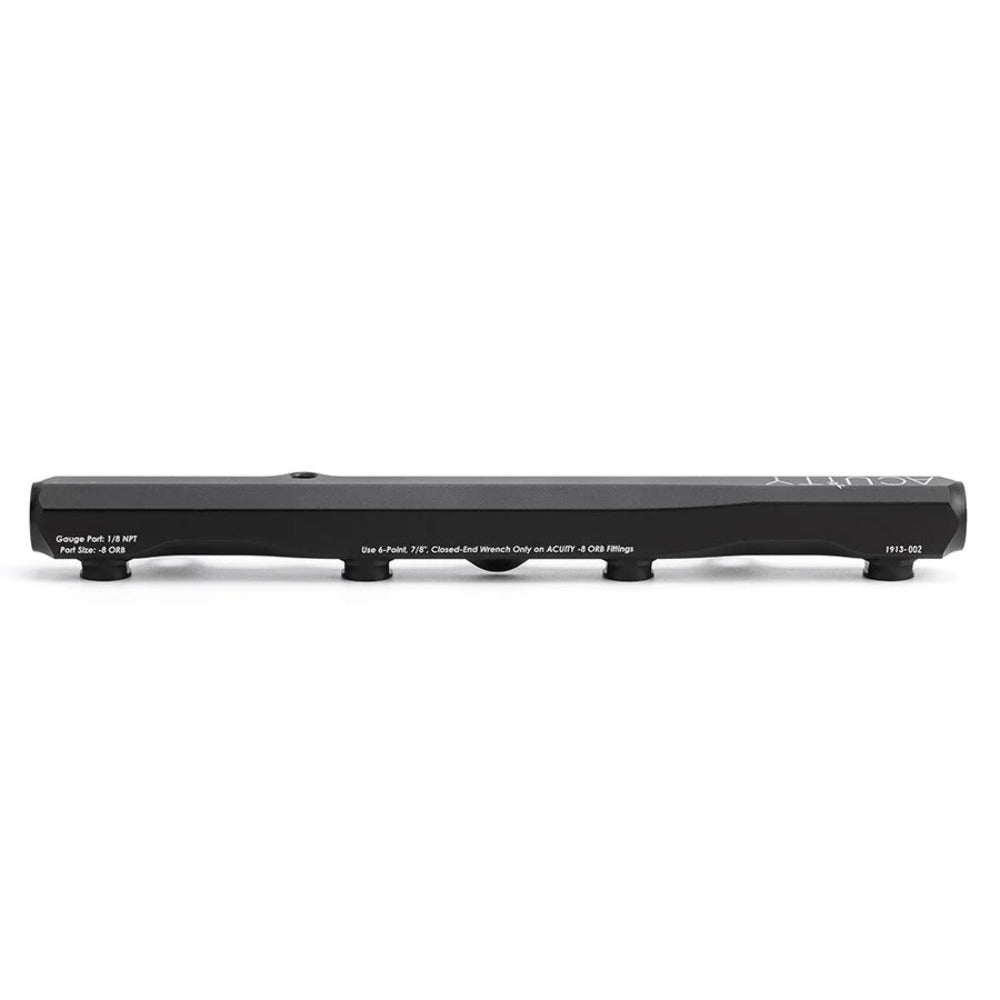

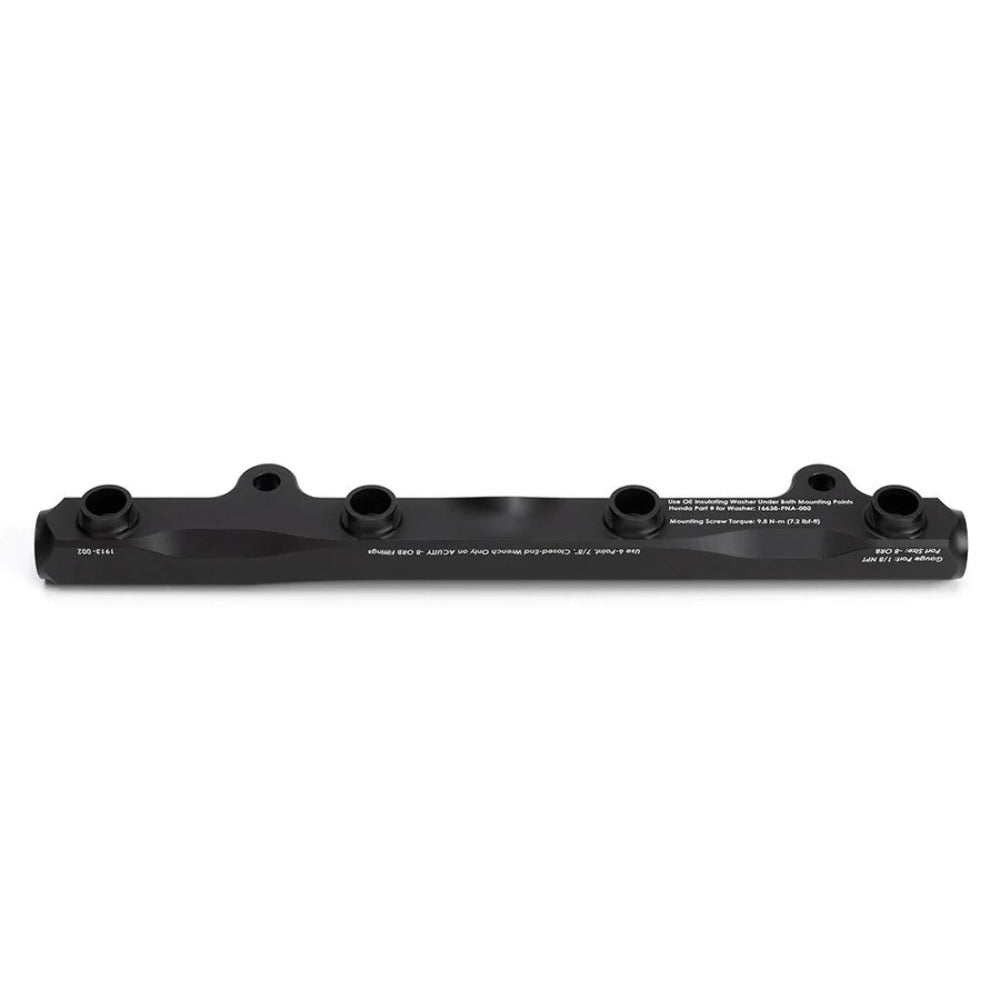

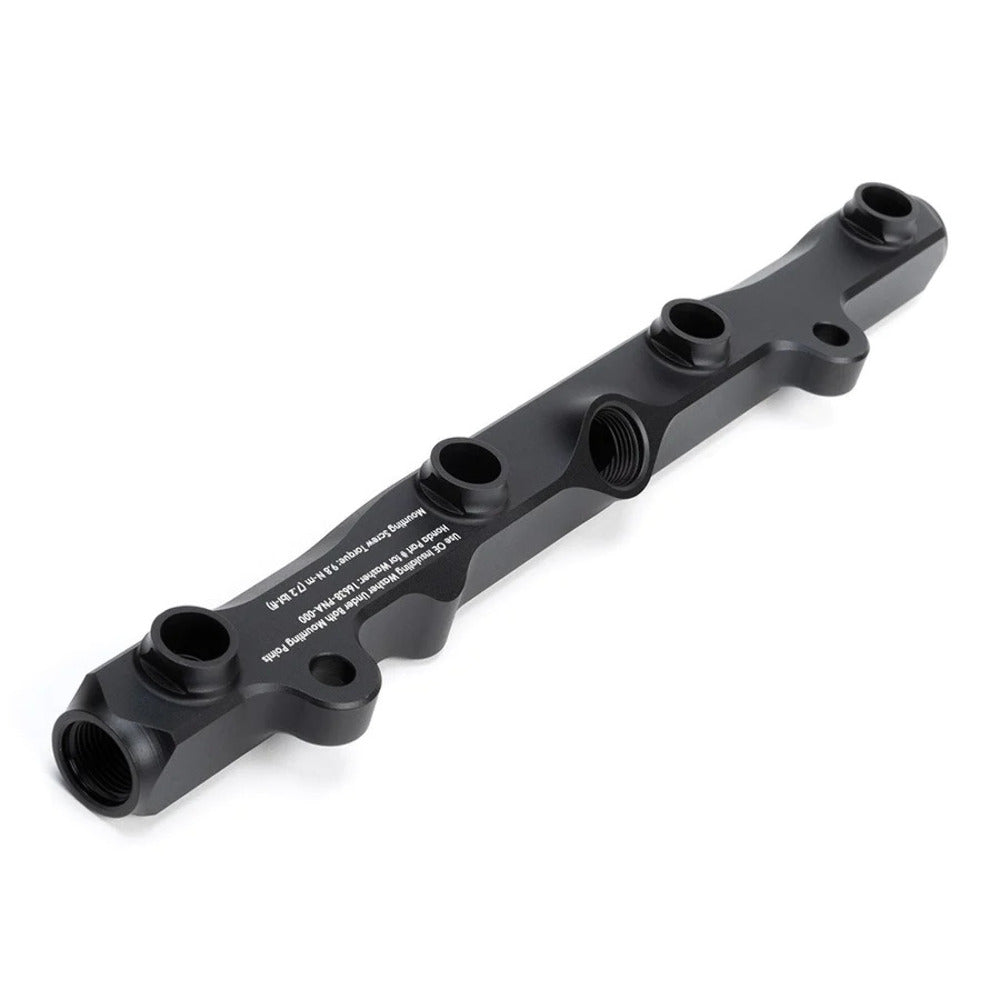

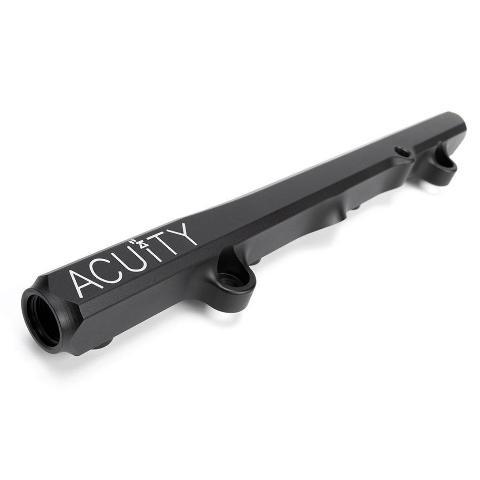

Whether upgrading for additional fuel delivery needs, to run upgraded fuel lines, or to simply clean up your engine bay, ACUiTY's K-Series High-Flow Fuel Rail is the most versatile and refined solution available. With it's 1/8 NPT port on top, -8 o-ring boss (ORB) ports on both ends and another -8 ORB port located at the middle of the rail, there are a variety of ways you can set the rail up for your car (see "Fitment Info" for application-specific fitting requirements). Each rail is constructed from 6061-T6 aluminum and has a satin-texture, anodized finish with laser-etched technical info and logos.

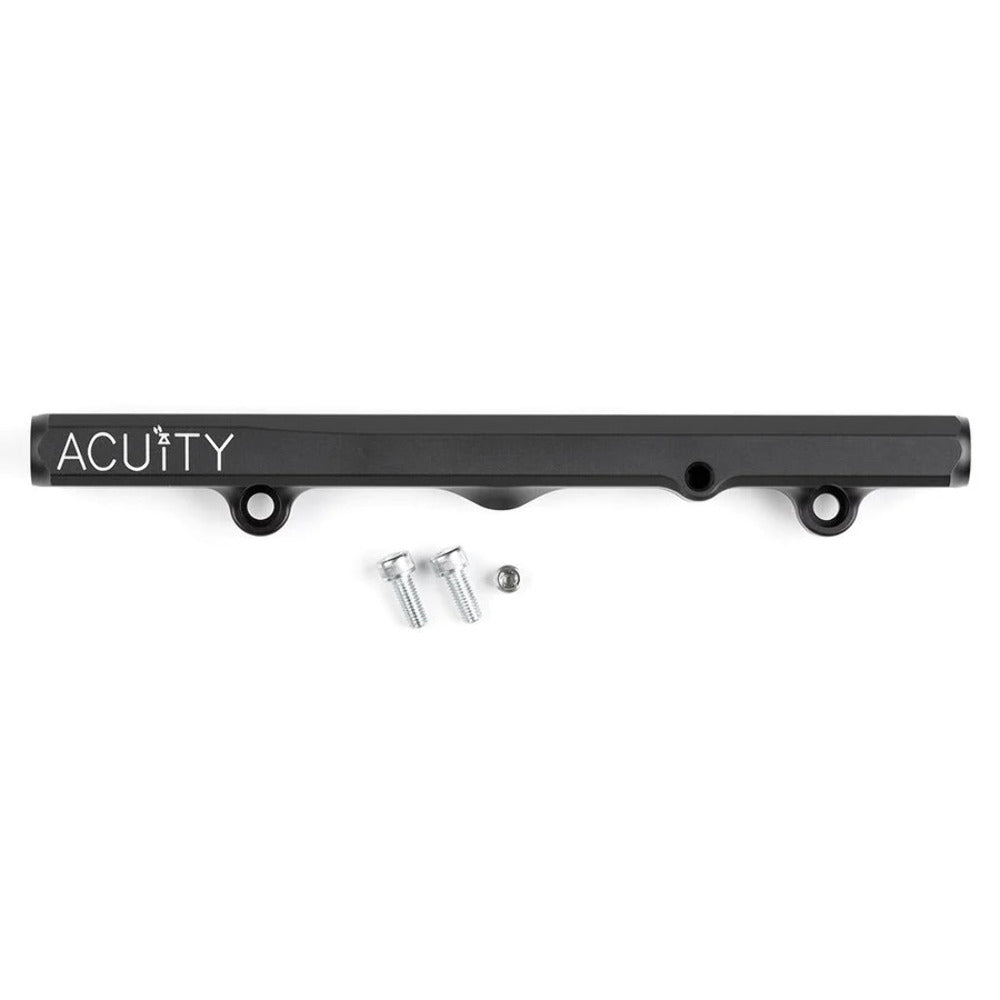

Among the rails' other features are countersunk mounting screw holes and supplied class 10.9+ hardware to replace the OEM studs. Each rail is also supplied with a stainless steel 1/8 NPT plug in case a top-mounted fuel pressure gauge is used. The end locations for the -8 ORB ports have been specifically machined to help reduce the likelihood of wrench damage to the rail's cosmetic finish during installation. As an added bonus rarely found on aftermarket rails, the rail allows the end-user to retain the OEM injector clips if you wish, just for some added peace of mind.
Acuity Fitment
  • 2001-2005 Civic Si and Type R
  • 2002-2006 Acura RSX, RSX-S, and Integra Type R
  • 2012-2015 Honda Civic Si
  • 2006-2011 Honda Civic Si and Type R
  • K-Swaps
  • Fits most K-Series engines except for the direct-injected K20C and K20B engines
Acuity Features
  • 15mm (0.59") bore supports 1000+hp

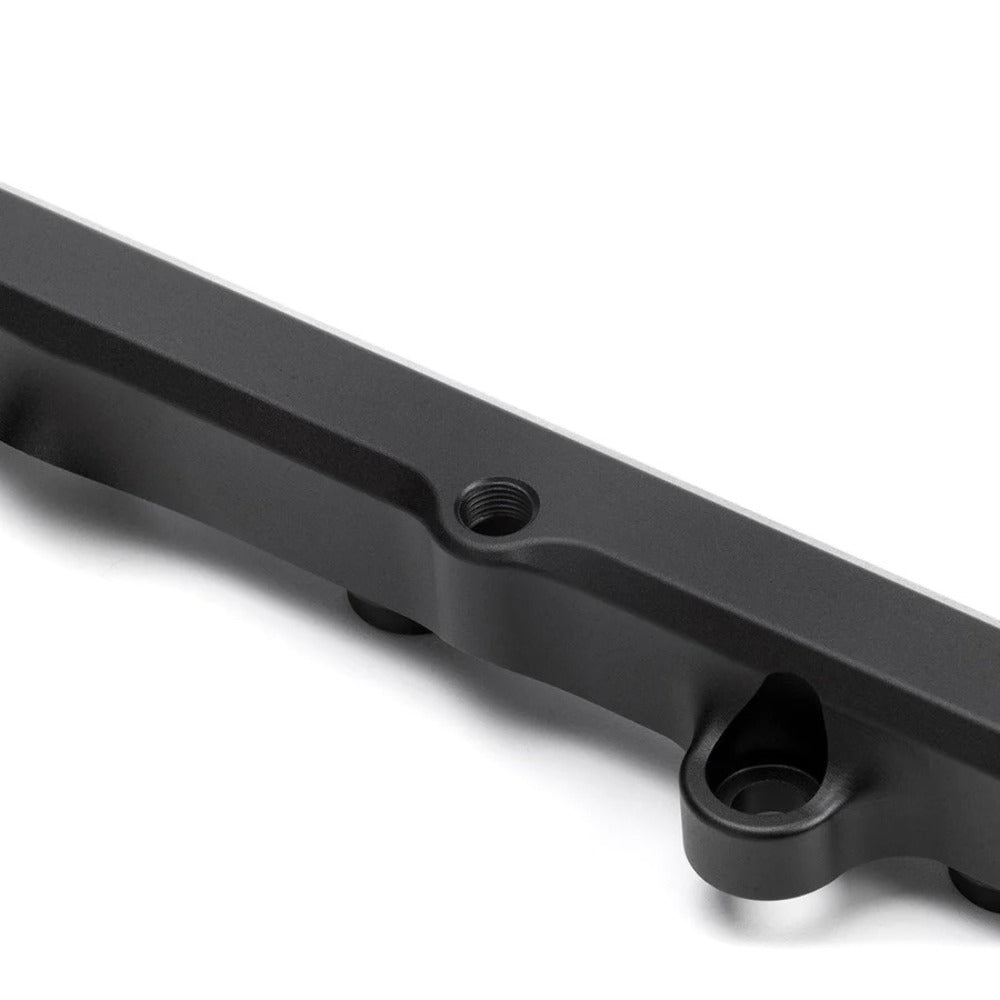

  • 1/8 NPT gauge port

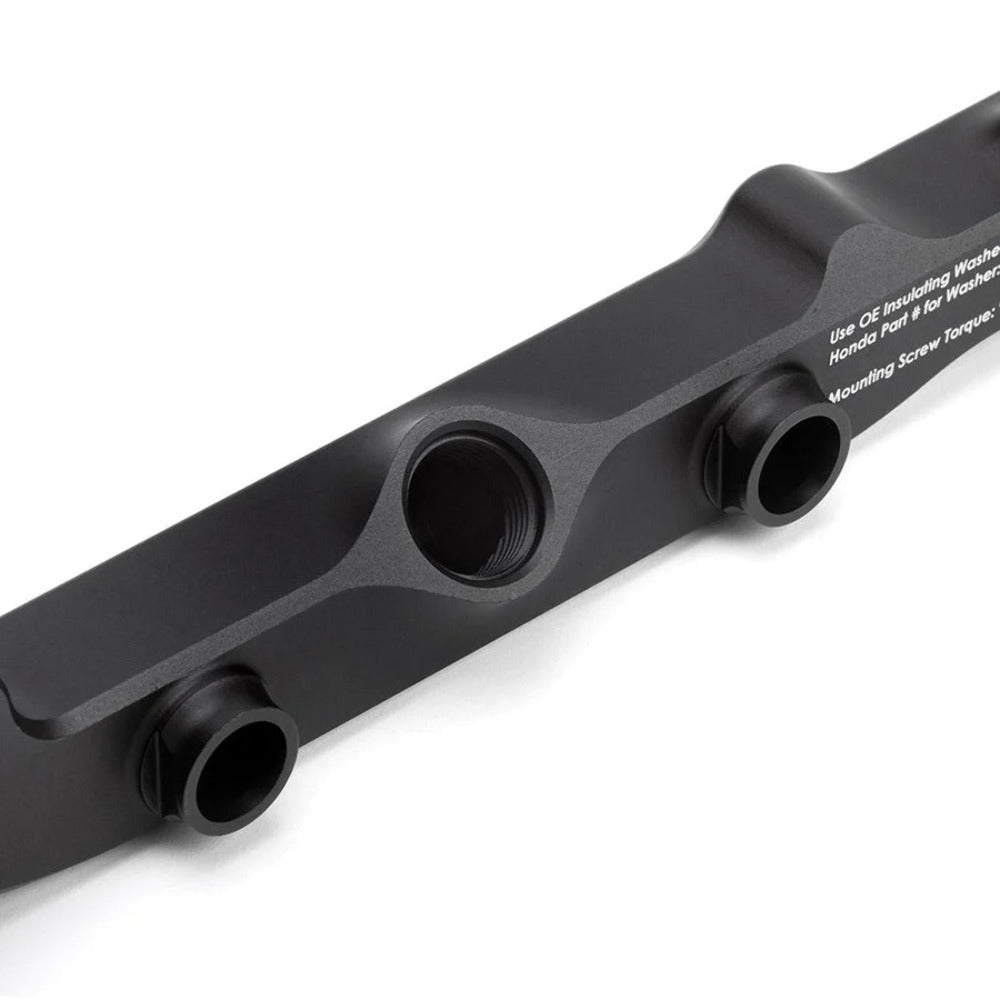

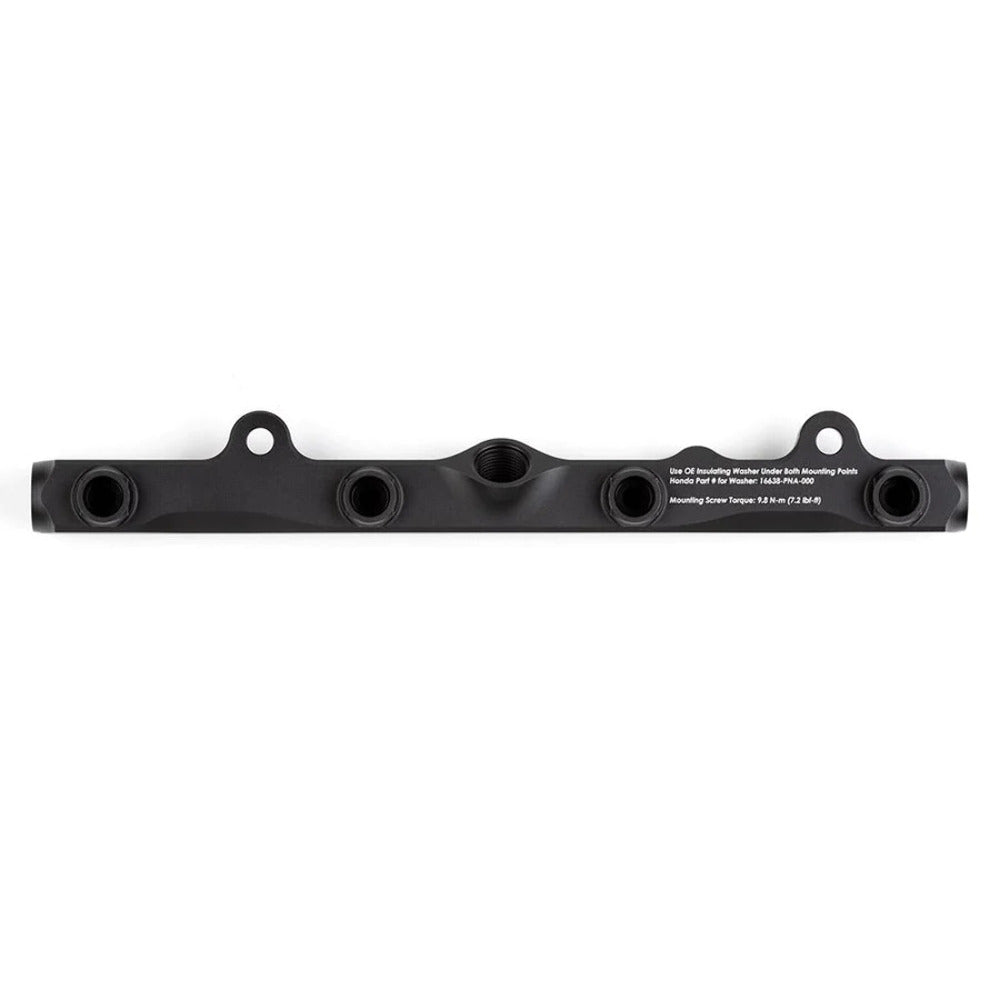

  • -8 ORB center-feed port for tucked fuel lines

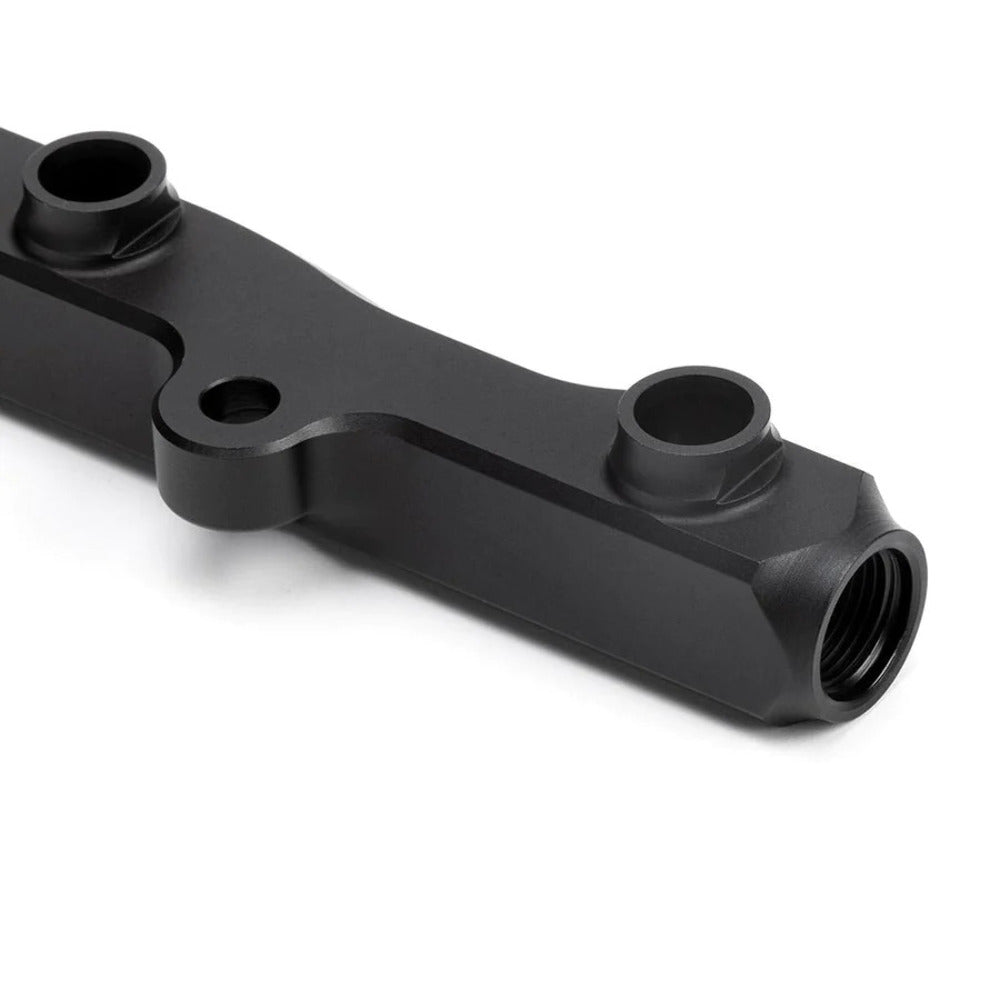

  • -8 ORB end ports for OEM, side-feed, or return setups
  • 6061-T6 billet aluminum construction
  • Satin black anodized finish
  • Includes class 10.9 zinc-plated mounting hardware
