10th Gen Civic/Accord Shifter Cable Adapter Bracket for K20Z3 Transmissions 1969

  • $119.00
    Unit price per


Description

10th Gen Civic/Accord Shifter Cable Adapter Bracket for K20Z3 Transmissions 1969

A crucial part in achieving the great shifting of an FK8 in your K20Z3 K-Swap
  • Permits use of FK8 or 20SPT Accord shifter cables and 10th Gen Civic shifters with K20Z3 manual transmissions.

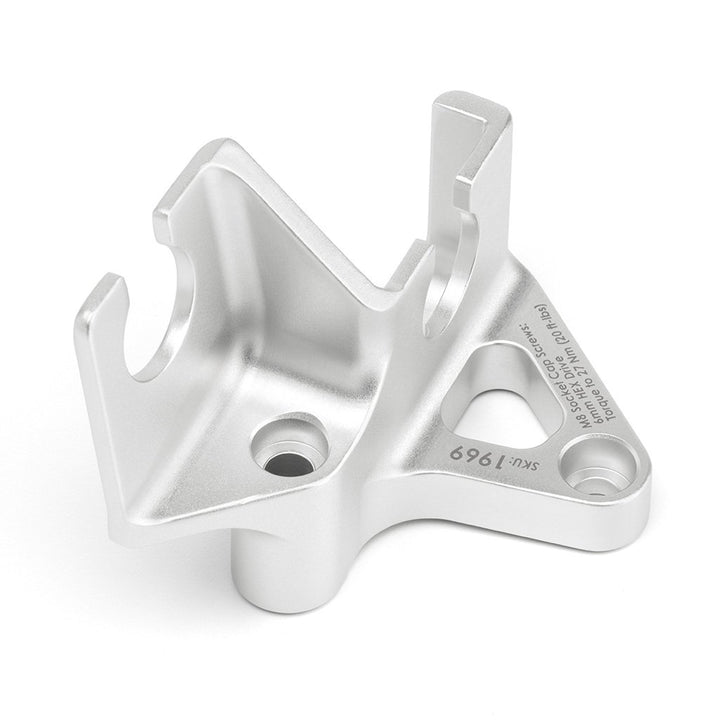

  • Anodized, CNC-machined 6061 aluminum construction with laser-marked torque specs
  • Class 10.9+ mounting hardware

This product is intended for front-wheel-drive K-swaps using K20Z3 transmissions ONLY. It is NOT compatible with a stock-drivetrain 10th Gen Civic or 8th Gen Civic or any other vehicle that is factory-equipped with the K20Z3 drivetrain.

Ever wish you could bless your K20Z3 K-swap with the great shifting of the world-renowned FK8 Civic Type R? This bracket is the solution. With it, you can shift K20Z3 transmissions using shifter cables from a 10th Gen Civic Type R or 10th Gen Accord 20SPT and using a shifter for any 10th Gen Civic, including the SPORT, Si, and Type R. Keep your build more cost-efficient by using this with an OEM FK8 shifter, or for a more performance-focused build, consider using our Fully Adjustable Short Shifter for the FK8 (SKU 1892). You will also need a way to mount your shifter of choice in your chassis.  For that, Acuity offers SKU 1950 adapter plates (sold separately) for mounting 10th gen shifters in many common K-Swap chassis.

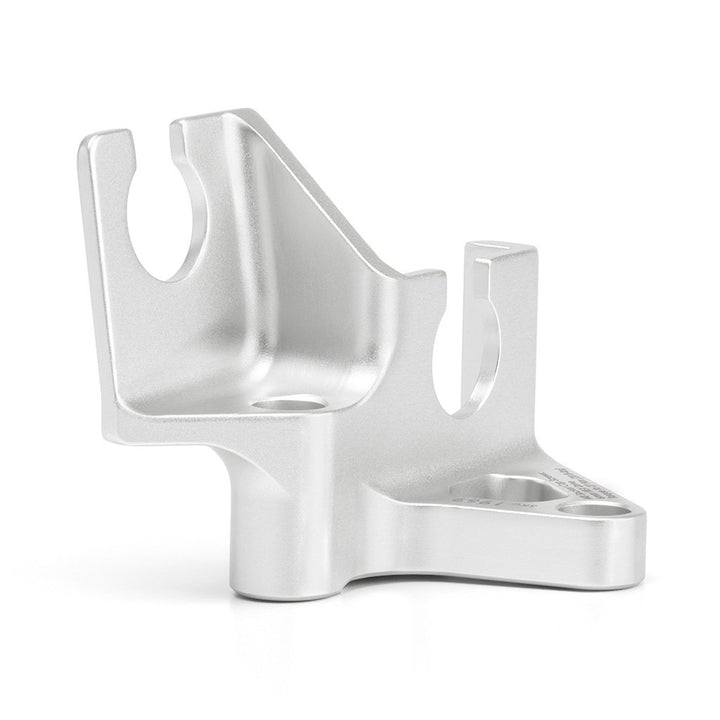

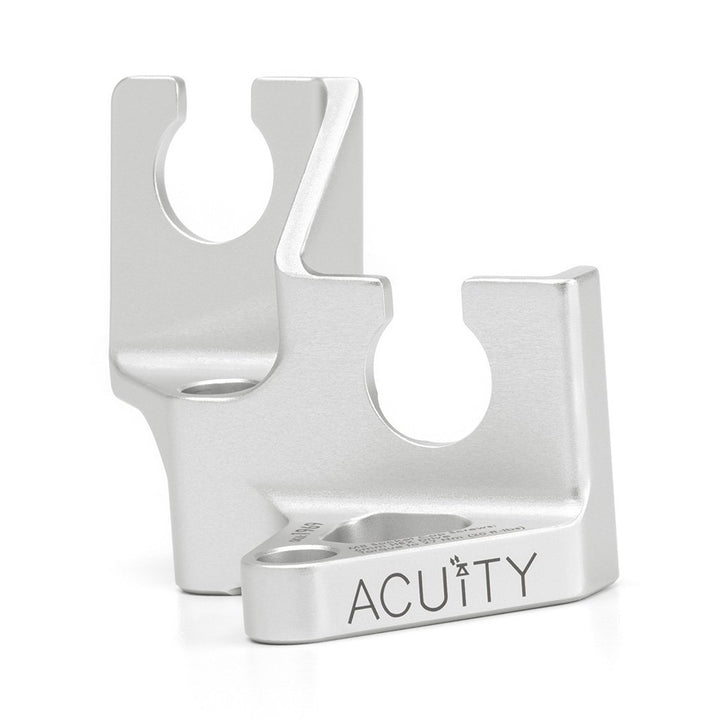

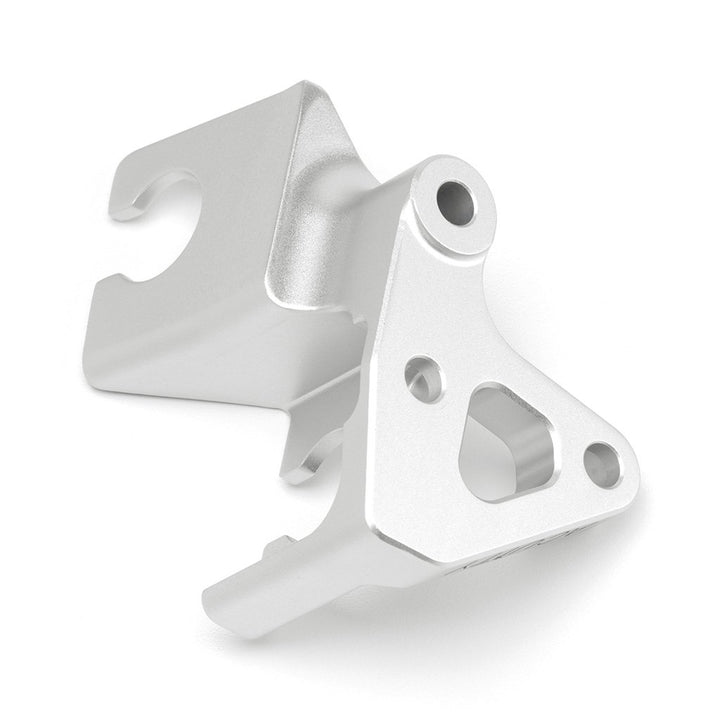

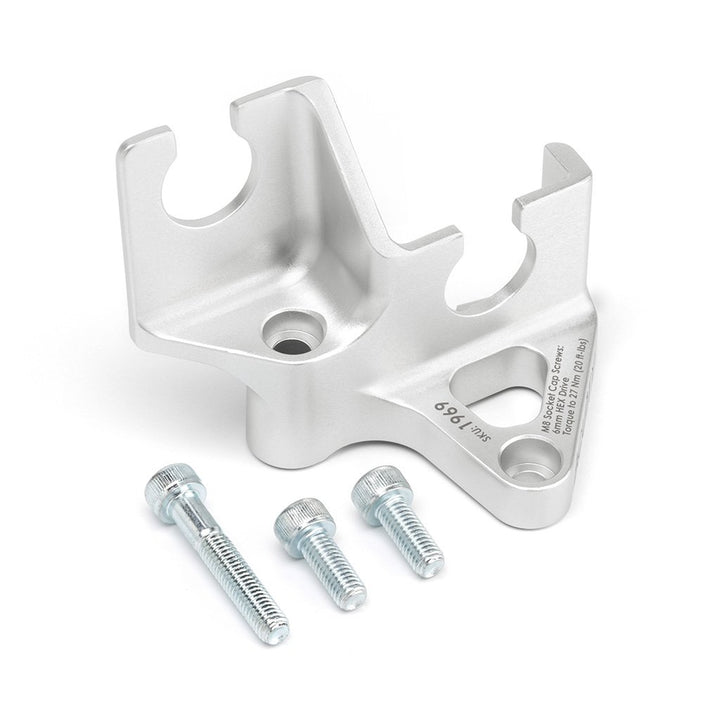

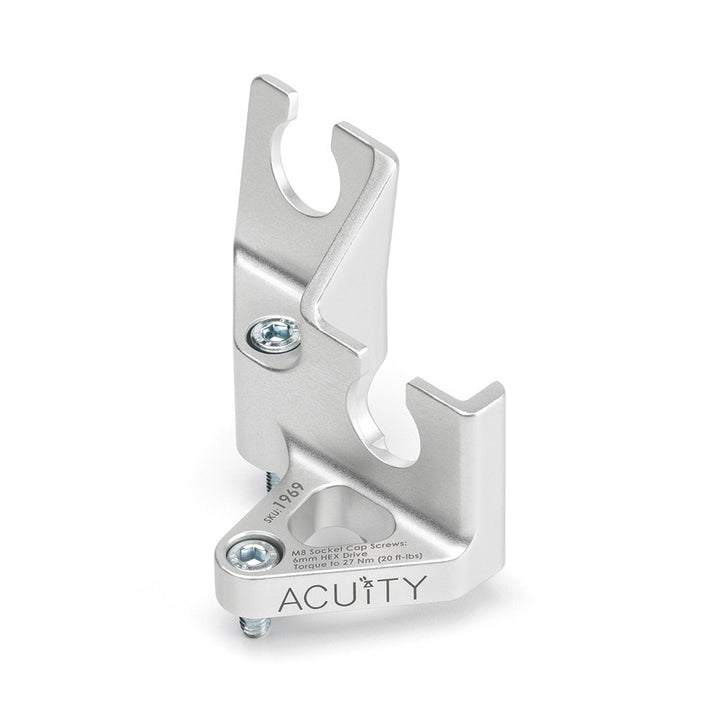

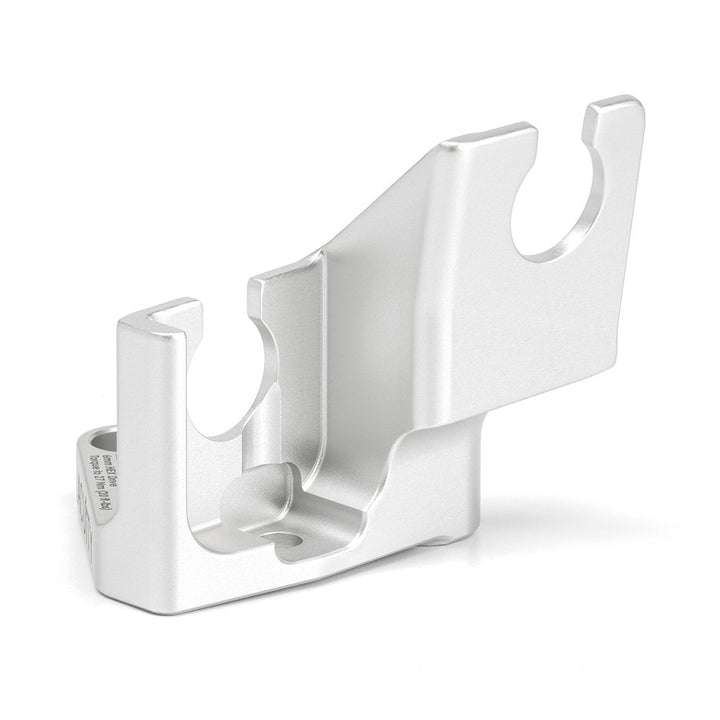

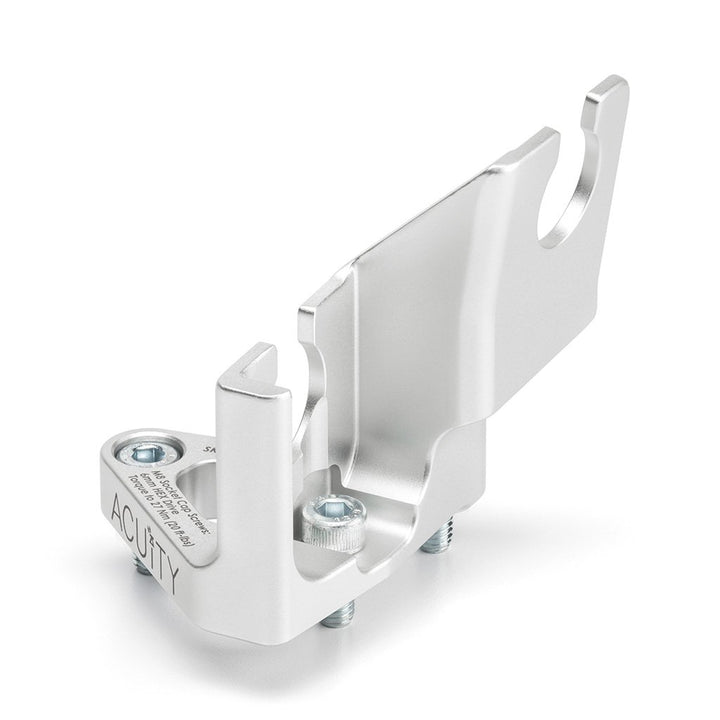

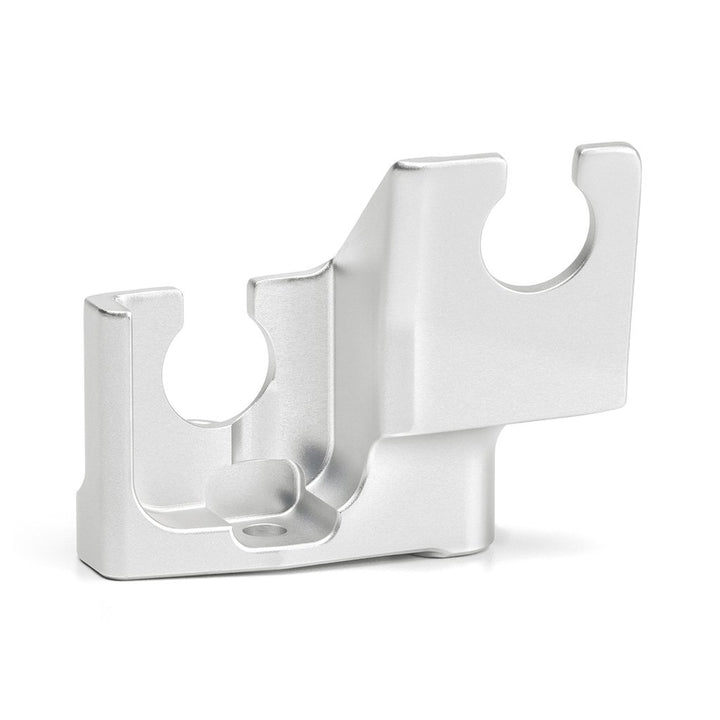

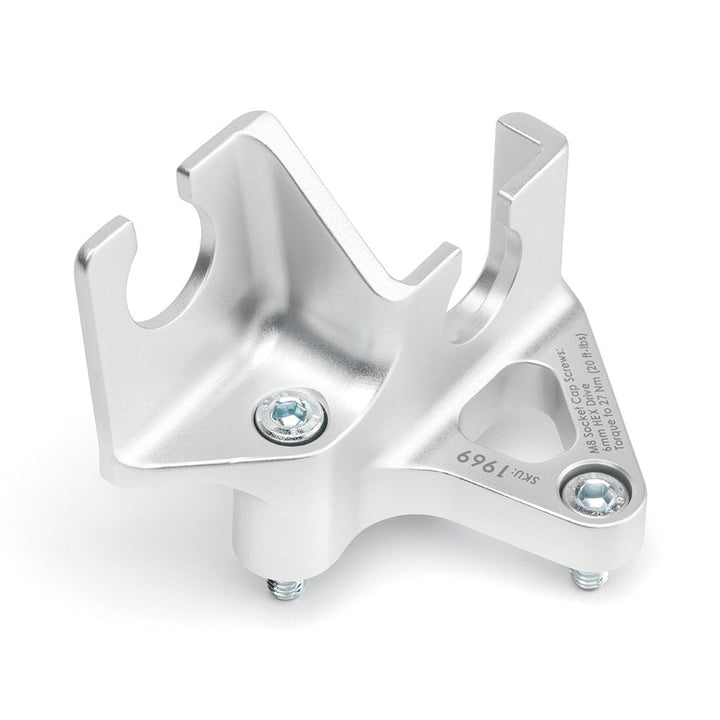

Each bracket is multi-axis machined from 6061 aluminum for strength and precision, then anodized for weather resistance, and finally laser-marked with torque specs. All hardware is zinc-plated Class 10.9+ steel. The kit includes (1) cable mounting bracket and (3) bracket mounting screws. You will need to supply your own shifter cables, shifter, and shifter mounting solution. See our helpful Compatibility List below to help you determine what you'll need to complete your setup.

If you like this solution but instead have a K24Z2, K24Z3, or K24Z7 drivetrain in your k-swap, check out our SKU 1970 cable adapter bracket as it may be just the solution you need.

Compatibility List

Compatible with transmissions from these vehicles:

  • K20Z3 from the 2007-2011 Honda Civic Si* (8th Gen)
*2006 transmissions can be used but require the installation of a Change Lever Assembly from a 2007-2011 8th Gen Civic Si transmission onto the 2006 transmission

    Compatible with shifter cables for these applications:

    • 2017-2021 Honda Civic Type R (10th Gen, Honda Part # 54310-TGH-A01)*
    • 2018+ Honda Accord 20SPT (10th gen, Honda Part # 54310-TVC-A02)*

    *Other 10th Gen Civic and 10th Gen Accord shifter cables will attach to the bracket but are too short to reach the shifter in most common K-Swap chassis.

    Compatible with shifters for these applications:

    • 2016-2021 Honda Civic (10th Gen, all mt including sport model)**
    • 2017-2021 Honda Civic Si** (10th Gen)
    • 2017-2021 Honda Civic Type R** (10th Gen)

    **Use with ACUiTY SKU 1950 Shifter Adapter Plate to mount these shifters in the following K-Swap Chassis:

      • 1988-1991 Honda Civic (EC/ED/EE/EF/EX)
      • 1990-1993 Acura Integra (DA/DB)
      • 1992-1995 Honda Civic (EG/EH/EJ)
      • 1996-2000 Honda Civic (EJ/EK/EM)
      • 1994-2001 Acura Integra (DB/DC)
