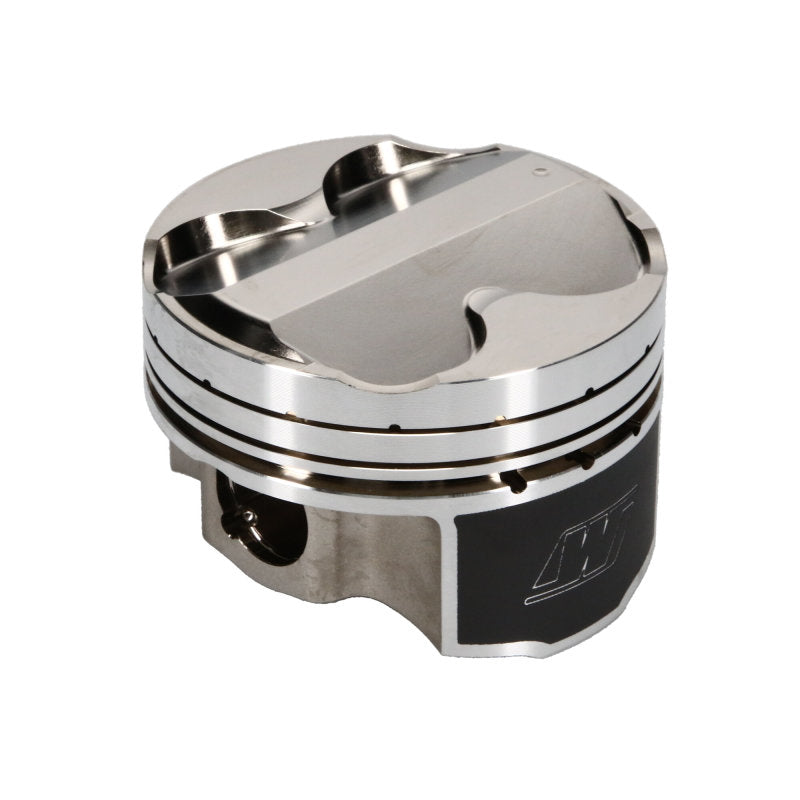

Wiseco Toyota 2JZGTE 3.0L 86mm STD Bore 33.98 Comp Ht Asymmetric Skirt Piston Set K678M86AP

Description

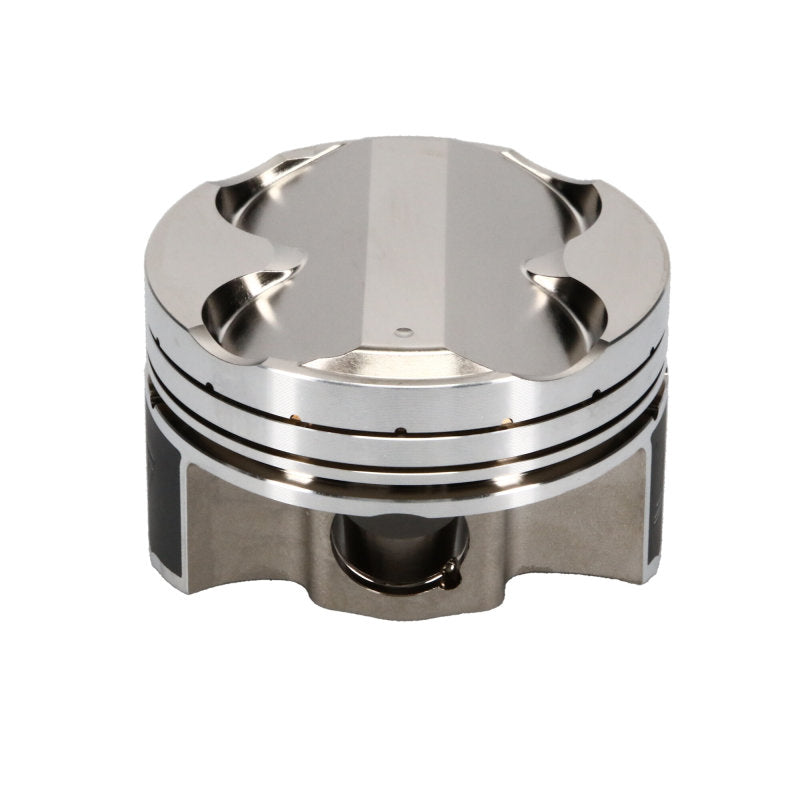

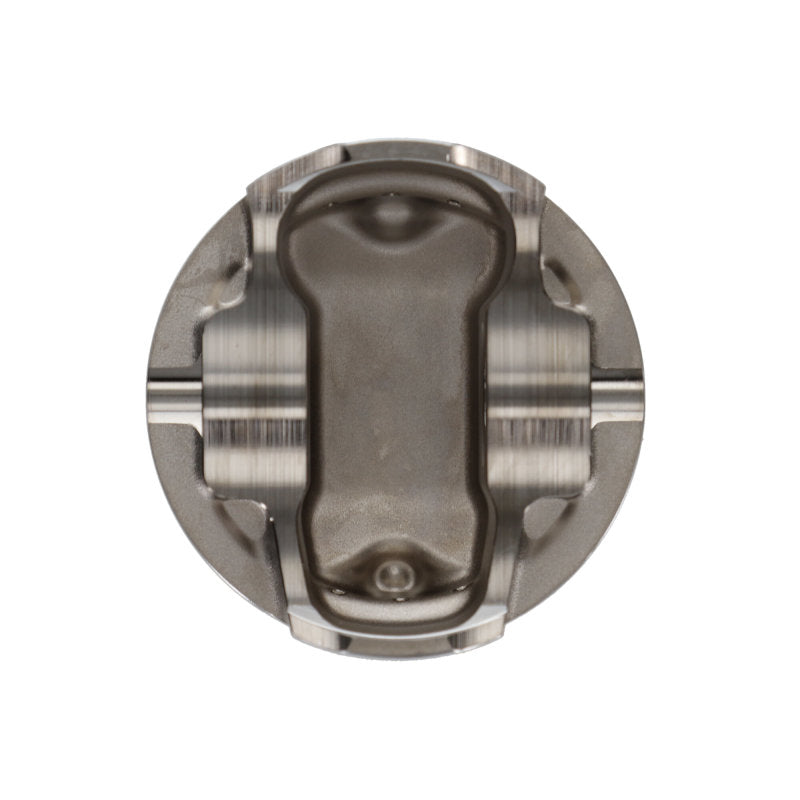

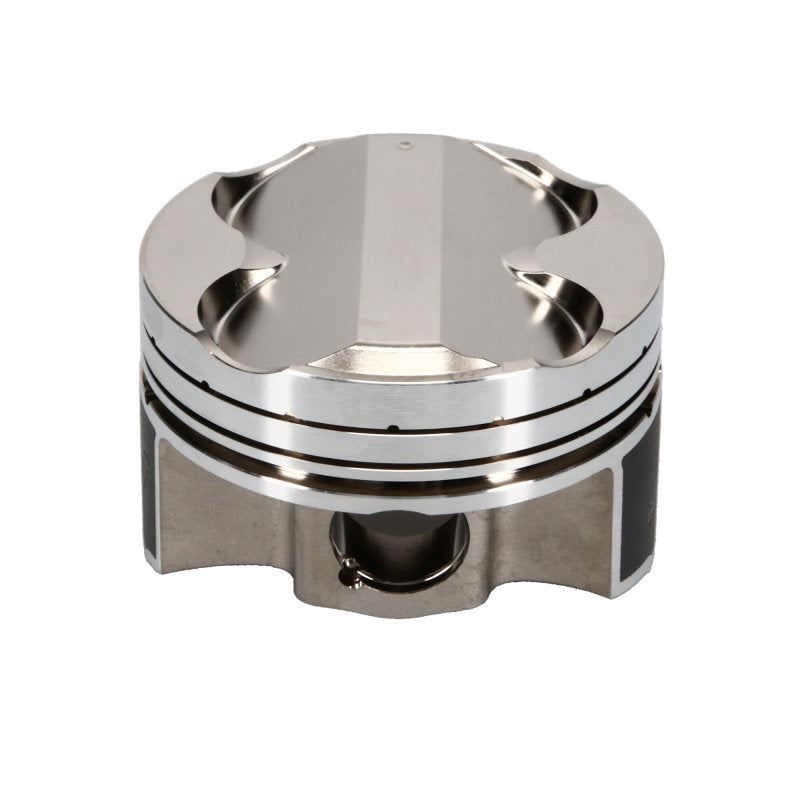

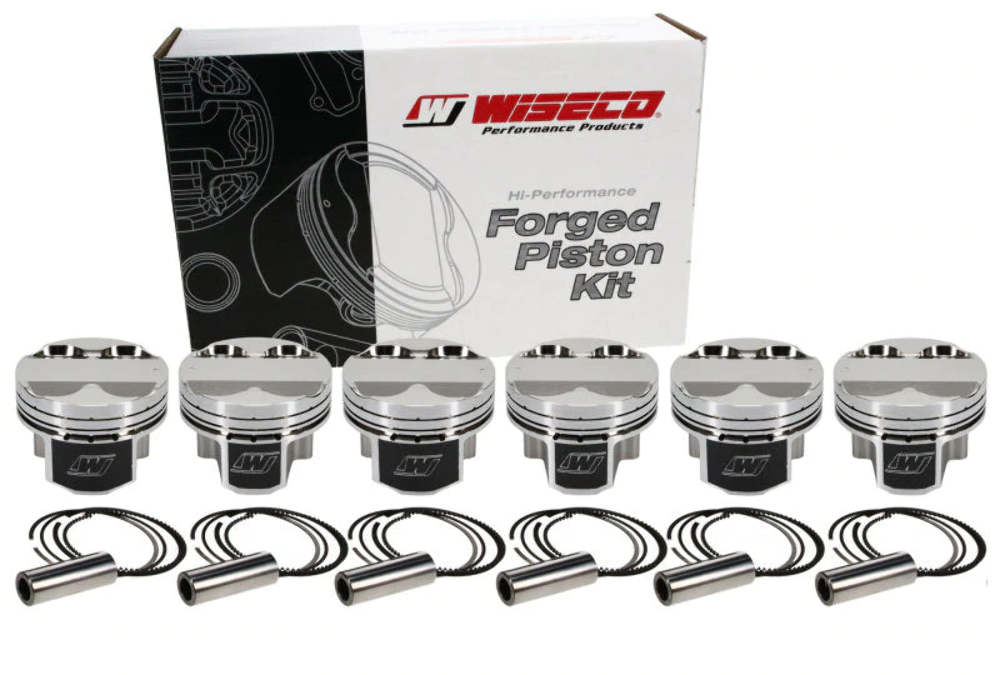

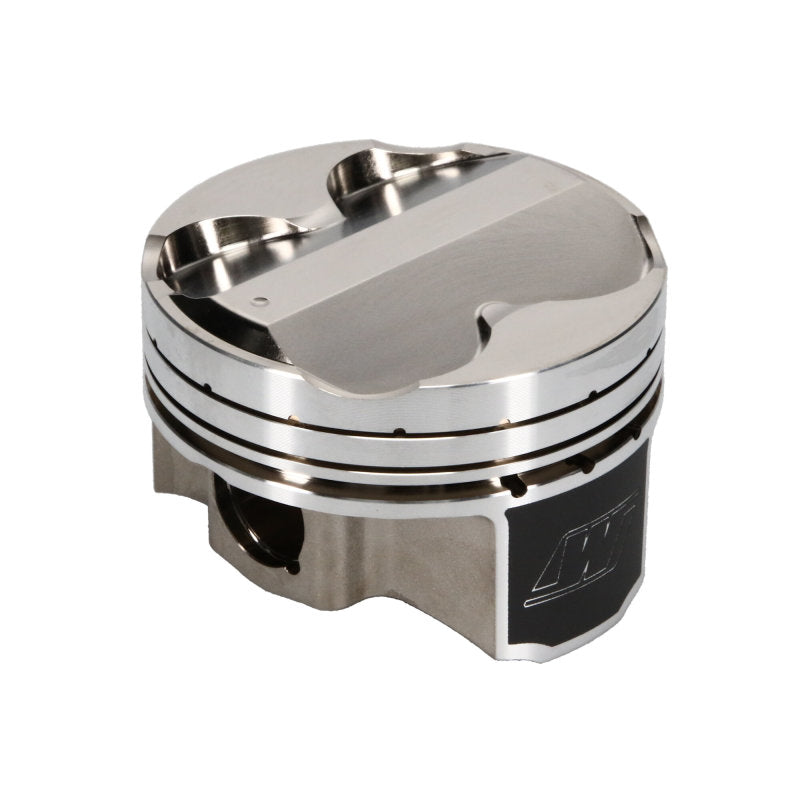

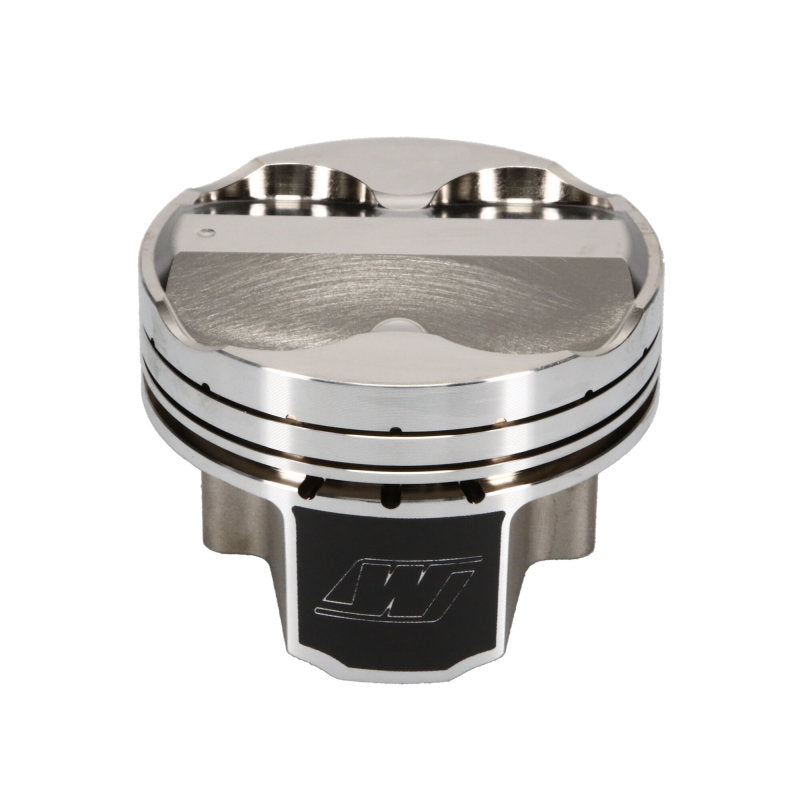

Wiseco K678M86AP Piston Kit - Toyota 2JZGTE 3.0L (Asymmetrical Skirt)

Asymmetric Skirt, .040 deeper pockets, .225 wall tool steel pins

Always check piston to valve clearance

If using VTEC or like mechanisms - check with longer duration, higher lift lobe

Always run at least .030" piston to head clearance, including gasket thickness

If piston appears to be different than expected, call to verify compatibility

Most Wiseco Pistons have an offset pin. Pins must be offset same as OEM for quietest operation.

Product Specifications:

Bore Size: 86.00mm / 3.386

Oversizes: Std.

Stroke: 3.386 / 86

Rod Length: 5.590 / 142

Comp Height: 1.338 / 33.98

Head cc's: 45

Dome Dish: 0.8

Gasket Thickness: 0.056 / 1.420

Deck Clearance: 0.001 / 0.020

Block Height: 8.622 / 219

Comp Ratio: 10.5

Pins (included): S734 (22mm)

Ring (included): 8600XX

Part #:K678M86AP

Applications:Toyota 2JZGTE 3.0L 24V Supra 1993-98

Notes: Special Order Item. Lead time may vary.
