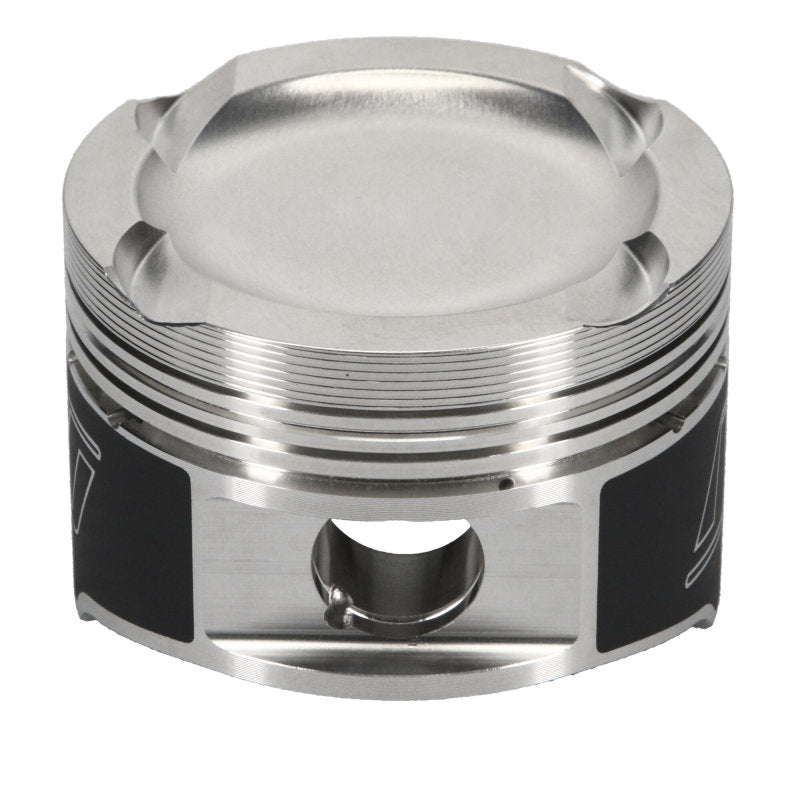

Wiseco Pro Tru Pistons (08-09 Dodge Caliber, 03-09 Chrysler PT Cruiser, 03-05 Dodge Neon) K562M875

Description

Wiseco Pistons - Pro Tru Sport Compact Series: World renowned for our work building race winning pistons, Wiseco utilizes experience from a diverse background of the most sophisticated sport compact engines.

Wiseco's Sport Compact Pro Tru line creates the best value in forged pistons today. These American made pistons are forged and machined by skilled Ohio craftsmen with state-of-the-art forging presses and CNC machines. By using dedicated forgings specific to the final piston shape, Pro Tru pistons are stronger and lighter than industry standards.

Pro Tru sets include plasma moly 1/16, 1/16, 3/16 pre-gapped ring packages which provide excellent seal, friction reduction, and long life. Pro Tru pistons also come in a variety of volumes that allow the engine builder to choose the exact compression ratio required for their engine.

Bore (in):3.445 in.

Bore (mm):87.500mm

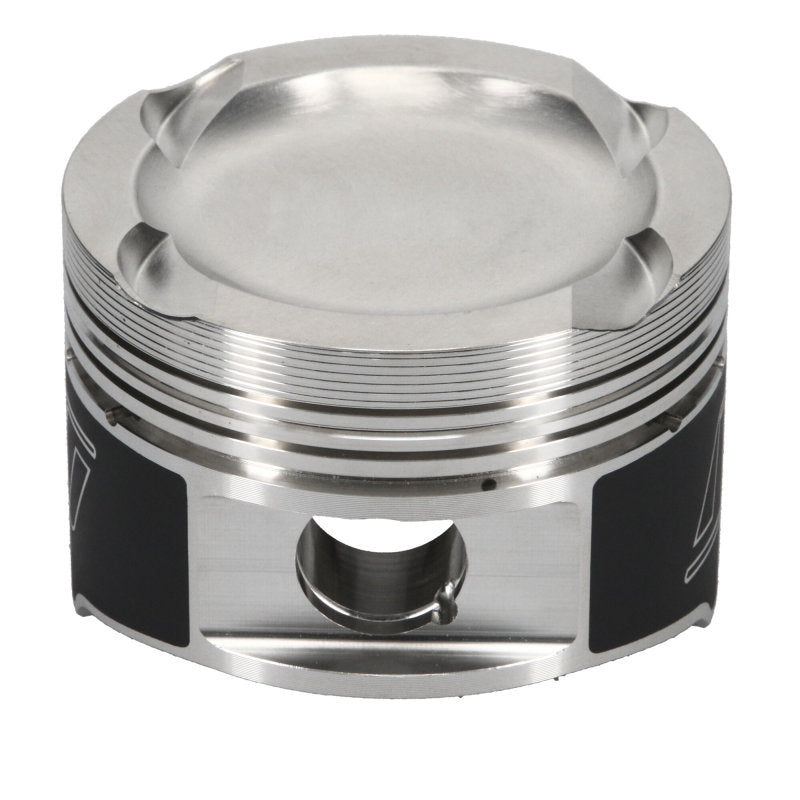

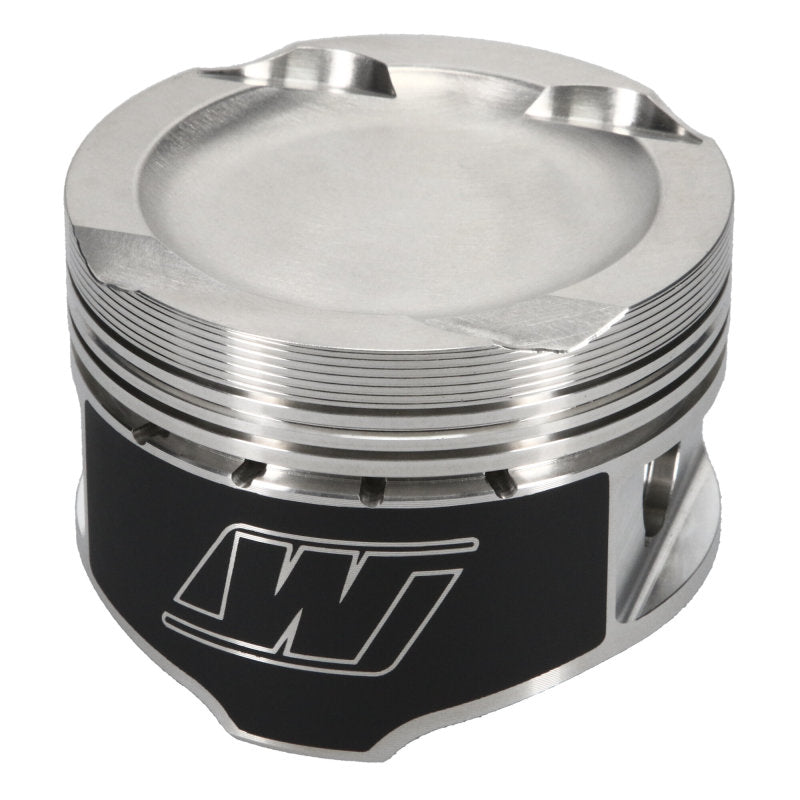

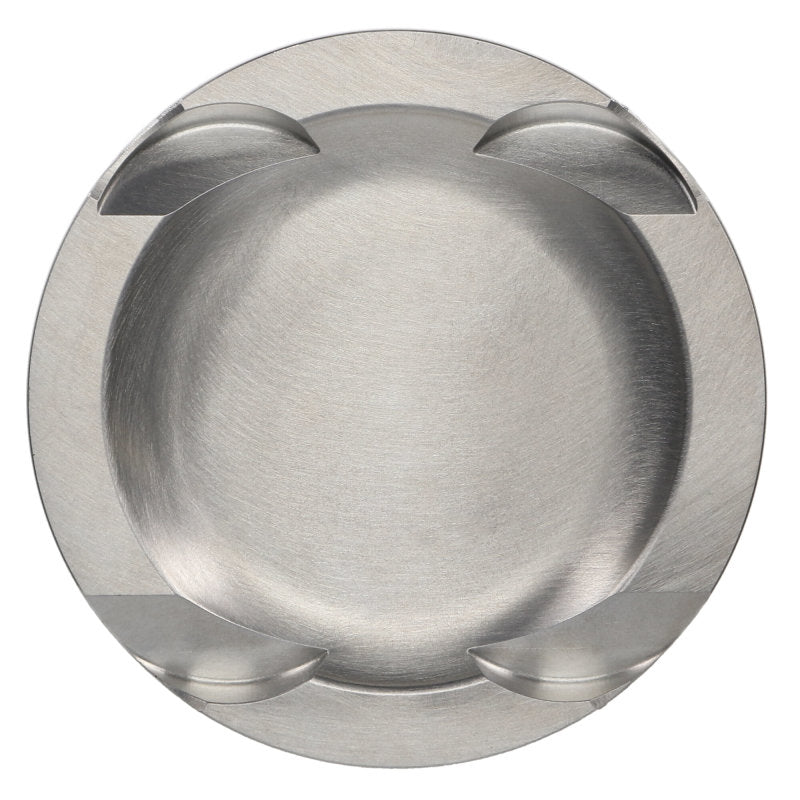

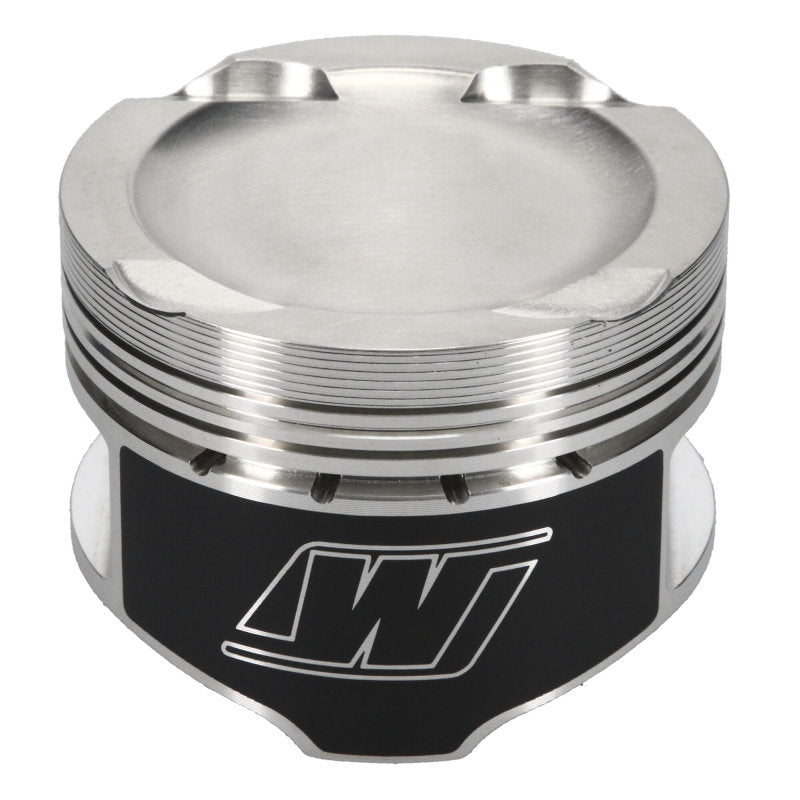

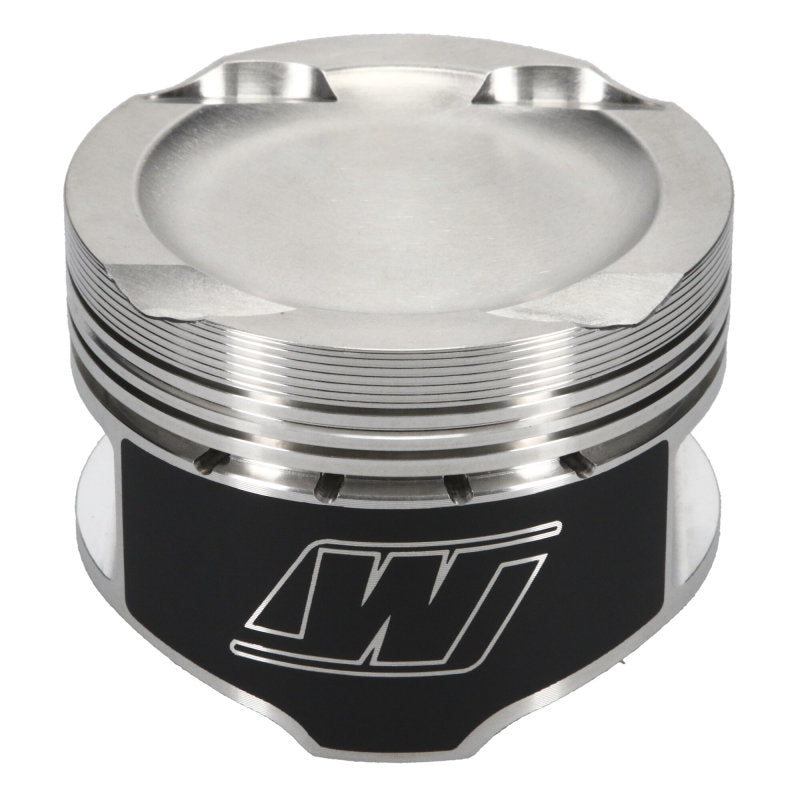

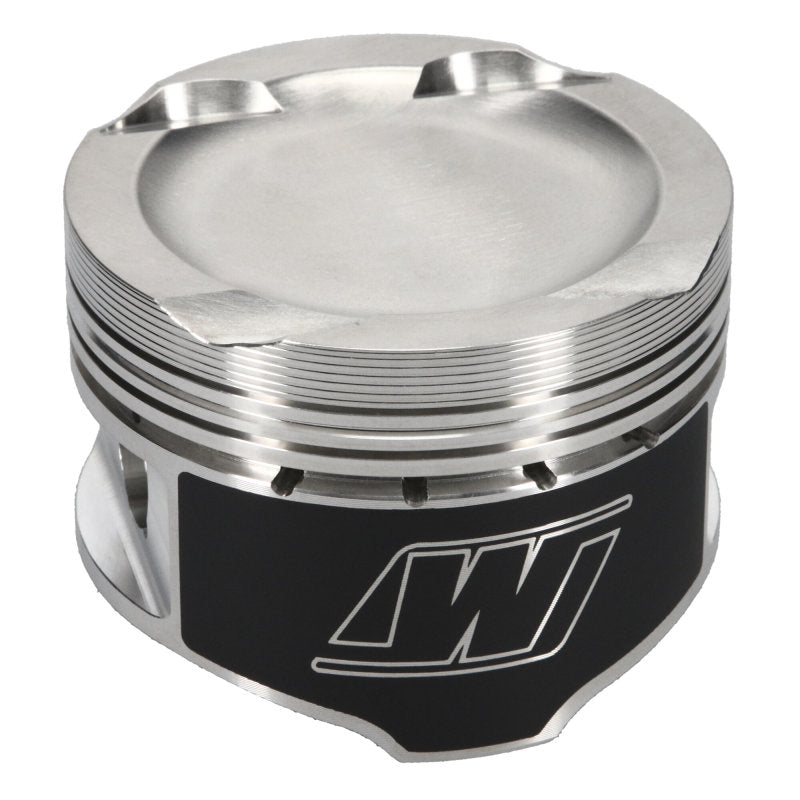

Piston Style:Dish, with no valve reliefs

Piston Material:Forged aluminum

Compression Distance (in):1.400 in.

Piston Head Volume (cc):+17.00cc

Wrist Pin Style:Press-fit or floating

Pin Diameter (in):0.866 in.

Gapless:No

File Fit:No

Top Ring Thickness:1.0mm

Top Ring Material:Steel

Top Ring Facing Material:Gas nitrided

Second Ring Thickness:1.2mm

Second Ring Material:Cast iron

Second Ring Facing Material:Phosphate coated

Oil Ring Thickness:2.8mm

Oil Ring Material:Stainless steel

Oil Ring Tension:Standard

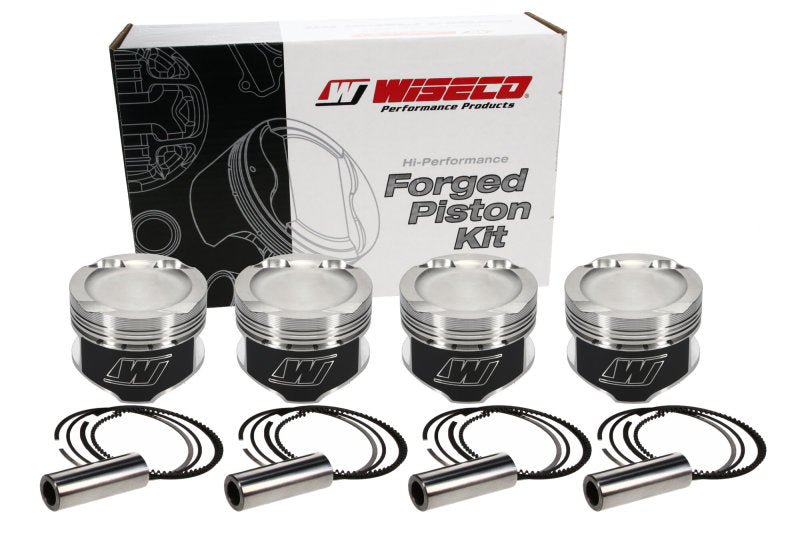

Quantity:Sold as a kit.

Part # K562M875
