Wiseco Pro Tru Compact Series Piston Kit (96-02 Honda Civic, 97-02 Honda Accord) K567M84AP

Description

Wiseco Pro Tru Compact Series Forged Piston Kit – K567M84AP
Fits B20B/Z Block w/ B16A Head | 84mm Bore | 11.3:1 Compression
Upgrade your Honda B-series engine with the Wiseco Pro Tru Compact Series Piston Kit, designed to deliver performance, strength, and reliability in naturally aspirated or mildly boosted applications. Perfect for hybrid builds combining the B20B/Z block with a B16A VTEC head, this kit provides a compression ratio of 11.3:1 with a minimum 0.400" thick gasket.

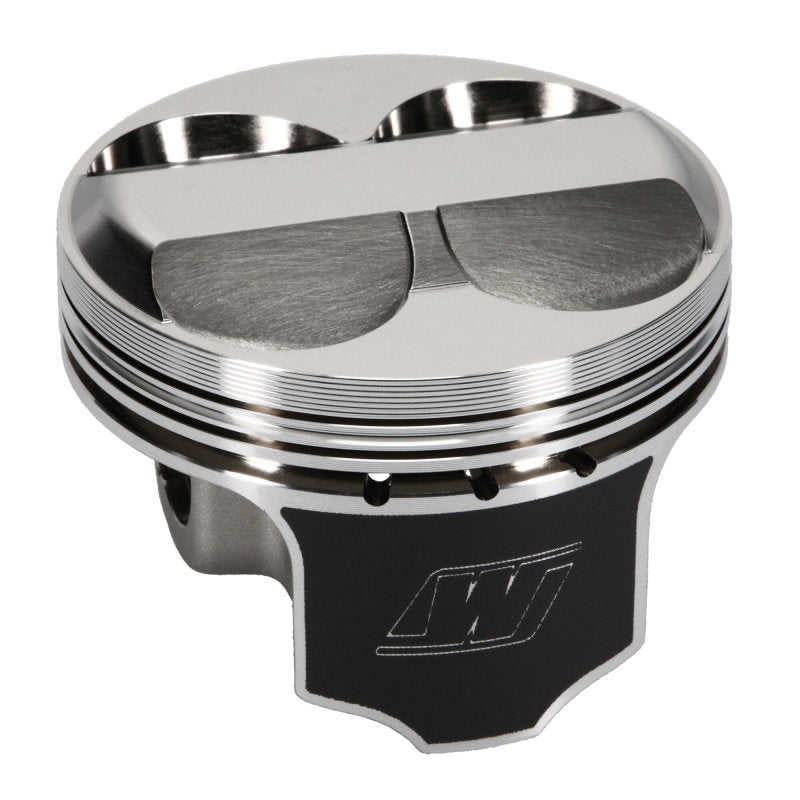

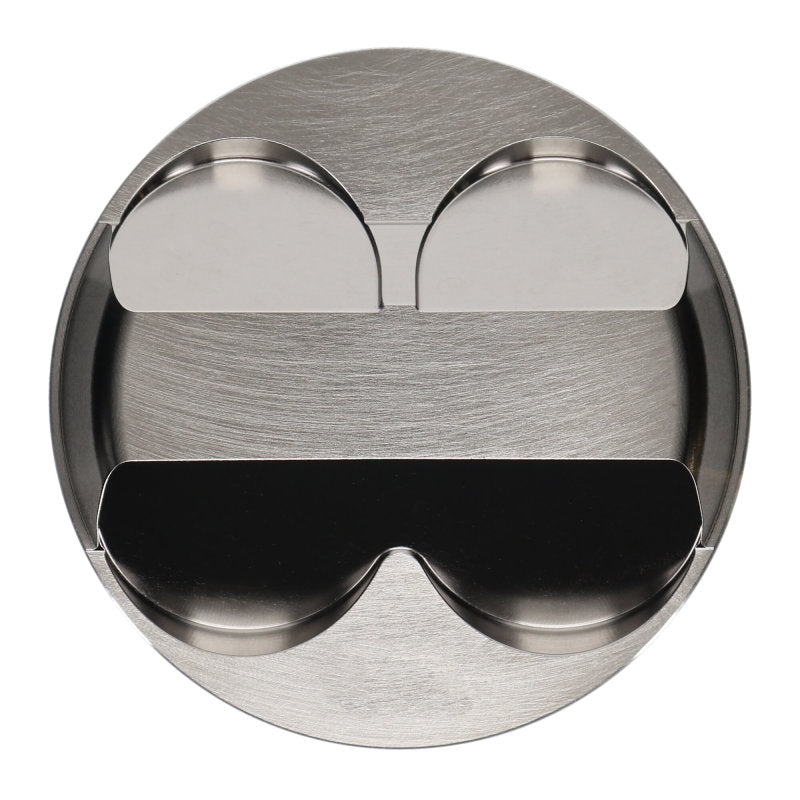

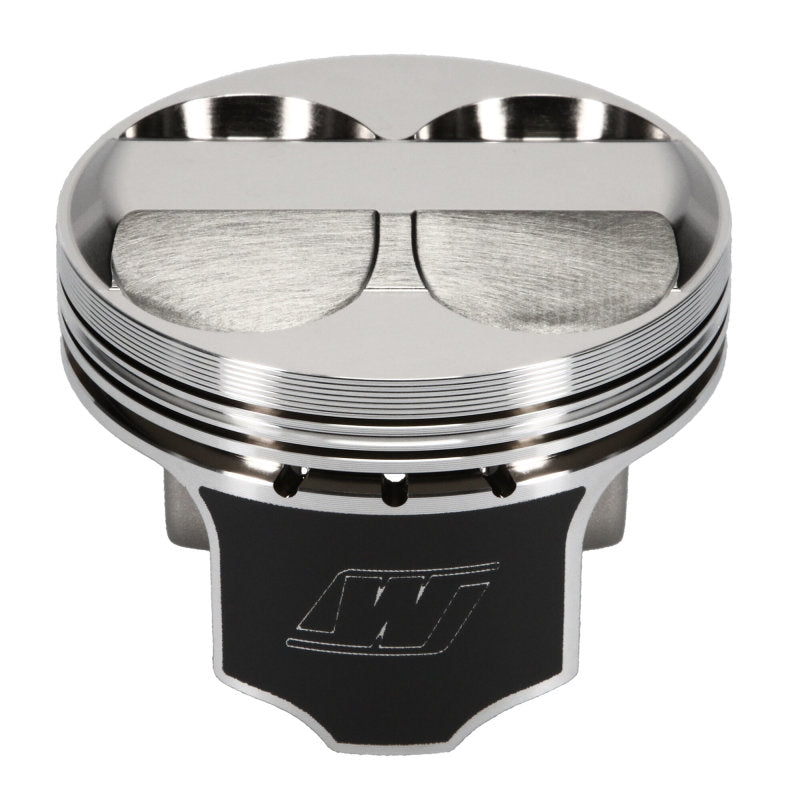

Crafted from forged aluminum, these pistons feature a dome top with four valve reliefs, offering excellent flame travel and compatibility with high-performance camshaft profiles. The included plasma-moly steel ring pack offers superior sealing and durability.

✅ Specifications:

• Part Number: K567M84AP

• Application: 1996–2002 Civic, 1997–2002 Accord (B20/B16A hybrid)

• Bore Size: 84.00 mm (3.307 in)

• Compression Ratio: 11.3:1 (with B20B/Z block & B16A head)

• Compression Distance: 1.181 in

• Piston Head Volume: -2.00cc (dome)

• Piston Style: Forged aluminum, dome top w/ valve reliefs

• Wrist Pin Style: Press-fit or floating (0.826 in pin diameter)

✅ Ring Set (Included):

• Top Ring: 1.0mm gas nitrided steel

• Second Ring: 1.2mm phosphate-coated cast iron

• Oil Ring: 2.8mm stainless steel (standard tension)

• Ring Type: Pre-gapped, file-to-fit plasma moly for long life and excellent seal

✅ Key Features:

• Designed for B-series VTEC hybrid builds

• Forged for strength under high RPM and load

• Pre-gapped performance ring pack included

• Made in the USA by Wiseco – a leader in race-ready forged pistons

• Ideal for high-compression street or track applications

📦 Kit Includes:

• 6x Forged pistons (K567M84AP)

• 6x Wrist pins

• 6x Sets of piston rings

• Locks (if applicable)

• Packaged and ready for installation

📦 Condition: Brand New
🛠️ Genuine Wiseco Product | 🚚 Fast Shipping | ✅ Track-Proven Durability

📌 Note: Requires minimum 0.400 in. thick head gasket for correct compression ratio. Always verify piston-to-valve clearance and fitment for your specific build.
