Wiseco Pistons & Eagle Rods Supra MK4 2JZGTE 86.5mm 8.5:1 K550M865AP/CRS5590T3D
Description
Wiseco pistons Valve pocket designs allow maximum flow around the valve, allowing the use of oversized valves and high lift cams.
Piston crown shapes are designed to promote the maximum intake charge efficiency through a scavenging mixture Cross Flow during intake and exhaust valve overlap.
More fuel and air equals more horsepower.
Piston domes are designed for optimal quench during the compression/ combustion cycle, resulting in resistance to detonation and pre-ignition.
The end product is longer engine life and increased horsepower potential.
Precision machined ring grooves with proper orifice/ accumulator volume feature calculated groove root diameters and axial widths, providing excellent surface finish and flatness, maximum ring seal, and minimized blow-by and oil consumption.
Piston crown shapes are designed to promote the maximum intake charge efficiency through a scavenging mixture Cross Flow during intake and exhaust valve overlap.
More fuel and air equals more horsepower.
Piston domes are designed for optimal quench during the compression/ combustion cycle, resulting in resistance to detonation and pre-ignition.
The end product is longer engine life and increased horsepower potential.
Precision machined ring grooves with proper orifice/ accumulator volume feature calculated groove root diameters and axial widths, providing excellent surface finish and flatness, maximum ring seal, and minimized blow-by and oil consumption.
|
Motor |
Over sizes |
Stroke |
Rod |
C.H. |
Head ccs |
Dome/Dish Volume |
Comp Ratio |
Pin dia. |
|
2JZGTE |
.20 |
86 |
142 |
34 |
45 |
-14.8 |
8.39 |
22mm |
|
2JZGTE |
.40 |
86 |
142 |
34 |
45 |
-14.8 |
8.47 |
22mm |
Eagle H-beam connecting rods are forged from SAE 4340 steel for superior strength. ARP bolts (2000, 8740 or L19 Series) and alignment sleeves are used for durability and precise cap location. Sets are weight matched to +/- 1g. Sizing is performed on the unique Sunnen Kross grinding system for a perfect housing bore. These are the perfect choice for engines up to 750 hp.
Description
Forged Steel H-Beam Connecting Rods; (Set of 6)
Length
5.590"
Bolts
ARP 2000
Weight
590g

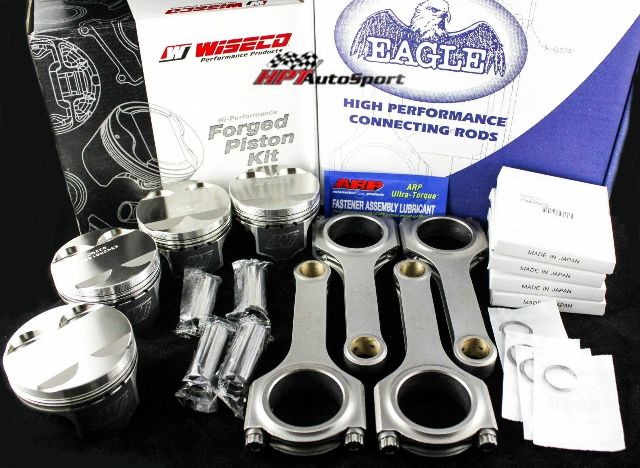

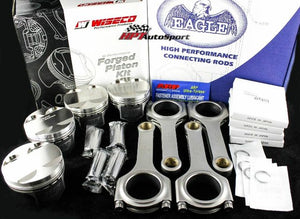

What's included: (6) Pistons (6) Piston ring sets (6) Wrist pins (12) Wrist pin lock (6) Connecting rods (12) ARP 2000 bolts
Part #: K550M865AP/CRS5590T3D
