Wiseco Pistons & Eagle Rods Honda Civic D16Y8 8.5:1 75.5mm K543M755/CRS5394H3D

Description

Wiseco Forged Pistons & Eagle H-Beam Connecting Rods Kit – 75.5mm Bore
Fits Honda Civic D16Y8 – SOHC VTEC Engines
Part #: K543M755 / CRS5394H3D

Maximize the potential of your Honda D16Y8 with this high-performance Wiseco Pistons and Eagle Rods combo, engineered for reliability, strength, and big power gains. Ideal for turbocharged, nitrous, or all-motor builds, this combo is perfect for serious engine builds targeting durability and performance.

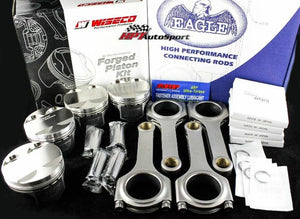

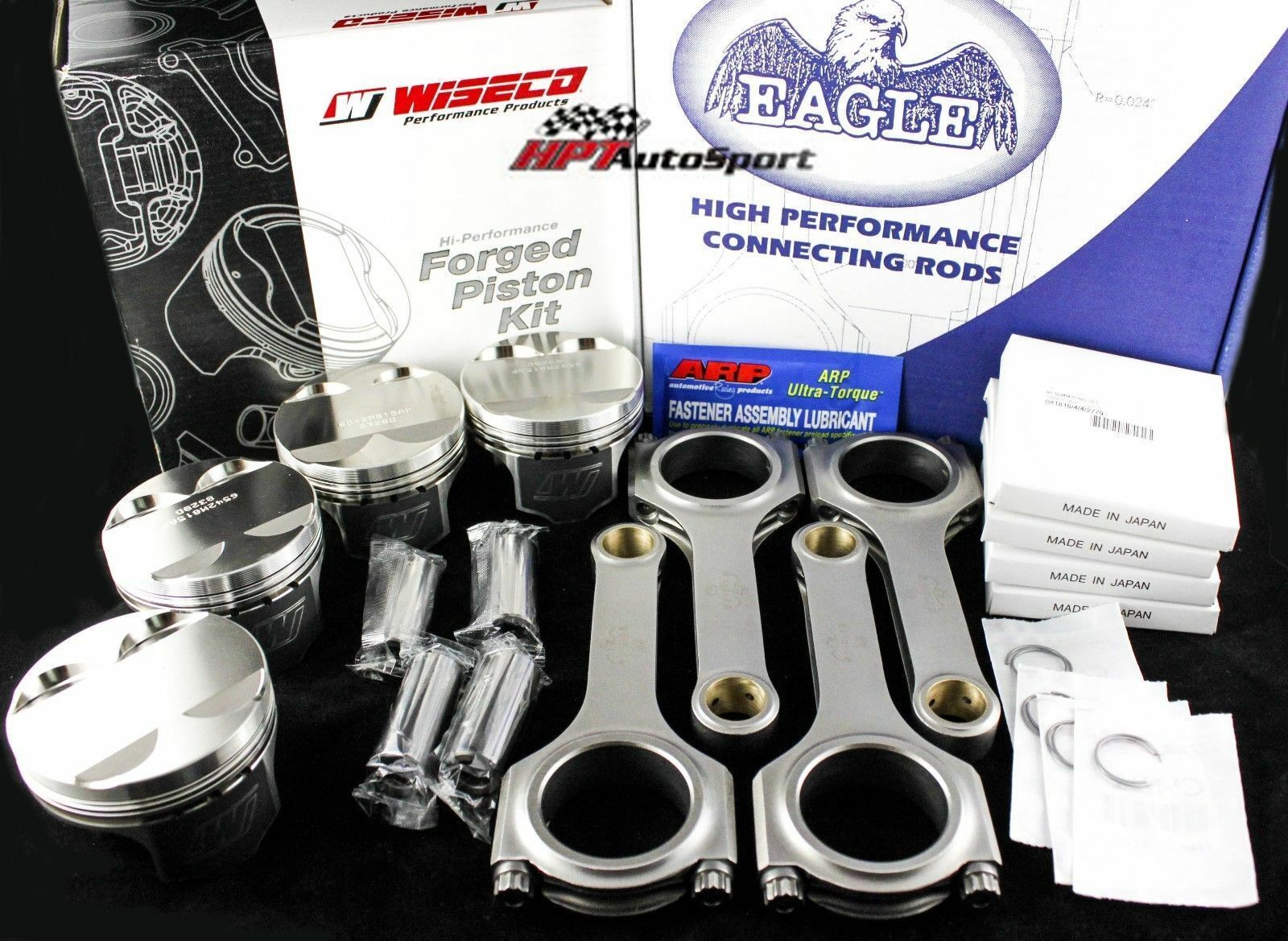

🧩 What's Included:

• (4) Wiseco Forged Pistons – 75.5mm Bore, 8.5:1 Compression

• (4) Piston Ring Sets

• (4) Wrist Pins

• (4) Eagle H-Beam Connecting Rods

• (8) ARP 2000 Rod Bolts

🔧 Wiseco Pistons Features:

• 8.5:1 Compression Ratio – Turbo/nitrous-ready

• 75.5mm Bore – Perfect for oversized cylinder builds

• Valve pocket design – Allows use of oversized valves & high-lift cams

• Cross-flow dome design – Increases intake charge efficiency

• Optimized quench zone – Reduces detonation & pre-ignition

• Precision-machined ring grooves – Superior ring seal, lower oil consumption

• Built for power and longevity

🔩 Eagle H-Beam Rods Features:

• Forged from SAE 4340 Steel – Rated for up to 750 HP

• ARP 2000 Rod Bolts – Extreme strength and reliability

• Weight Matched to ±1g – Balanced for high RPM stability

• Sunnen Kross-Honed Housing Bore – Precision fit every time

Rod Specs:

• Length: 5.394"

• Rod Journal: 1.7710"

• Housing Bore: 1.8900"

• Pin Size: 0.748"

• Big End Width: 0.8920"

• Pin End Width: 0.7160"

• Thickness Above Pin: 0.200"

• Rod Weight: 535g

🚗 Vehicle Fitment:

• Honda Civic D16Y8 – 1996–2000 (SOHC VTEC)

💯 Condition: Brand New
📍 Ships from the USA – Fast, reliable shipping

✅ Whether you’re building a boosted street car or a track-only beast, this Wiseco + Eagle combo delivers unmatched strength, reliability, and performance for your D16Y8 project.
