Wiseco Pistons & Eagle Rods Acura RSX-S K20A2 K20Z 86.5mm K650M865AP/CRS5470K3D
Description

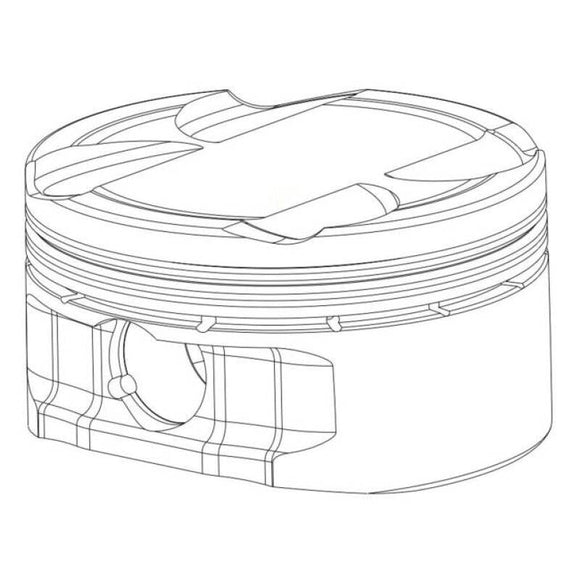

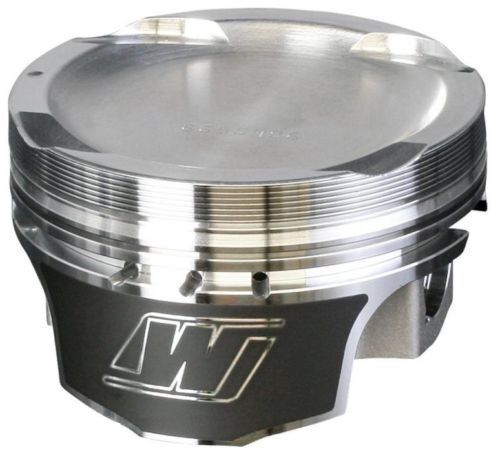

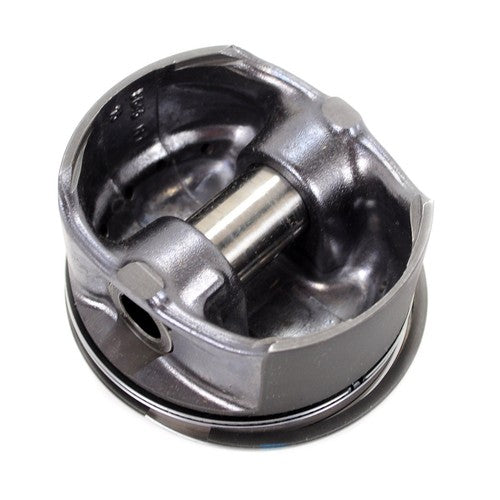

Wiseco pistons Valve pocket designs allow maximum flow around the valve, allowing the use of oversized valves and high lift cams.
Piston crown shapes are designed to promote the maximum intake charge efficiency through a scavenging mixture Cross Flow during intake and exhaust valve overlap.
More fuel and air equals more horsepower.
Piston domes are designed for optimal quench during the compression/ combustion cycle, resulting in resistance to detonation and pre-ignition.
The end product is longer engine life and increased horsepower potential.
Precision machined ring grooves with proper orifice/ accumulator volume feature calculated groove root diameters and axial widths, providing excellent surface finish and flatness, maximum ring seal, and minimized blow-by and oil consumption.
Piston crown shapes are designed to promote the maximum intake charge efficiency through a scavenging mixture Cross Flow during intake and exhaust valve overlap.
More fuel and air equals more horsepower.
Piston domes are designed for optimal quench during the compression/ combustion cycle, resulting in resistance to detonation and pre-ignition.
The end product is longer engine life and increased horsepower potential.
Precision machined ring grooves with proper orifice/ accumulator volume feature calculated groove root diameters and axial widths, providing excellent surface finish and flatness, maximum ring seal, and minimized blow-by and oil consumption.

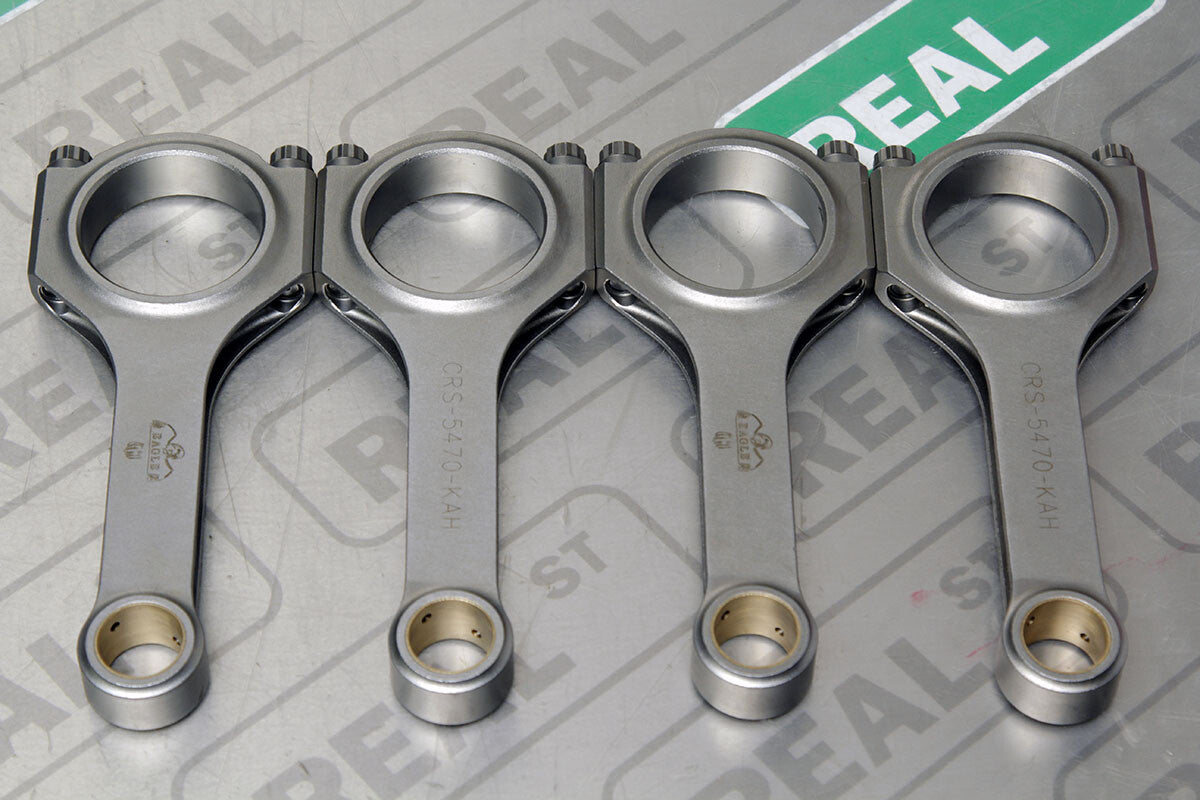

Eagle H-beam connecting rods are forged from SAE 4340 steel for superior strength.
ARP bolts (2000, 8740 or L19 Series) and alignment sleeves are used for durability and precise cap location.
Sets are weight matched to +/- 1g.
Sizing is performed on the unique Sunnen Kross grinding system for a perfect housing bore.
These are the perfect choice for engines up to 750 hp.
Sets are weight matched to +/- 1g.
Sizing is performed on the unique Sunnen Kross grinding system for a perfect housing bore.
These are the perfect choice for engines up to 750 hp.
Notes: Forged Steel H-Beam Connecting Rods
Weight: 495g
Bolts: ARP 2000
Length: 5.470
Rod Journal: 1.8900
Housing Bore: 2.0080
Pin size: 0.864
Big end width: 0.7790
Pin end width: 0.8770
Thickness above pin: 0.200

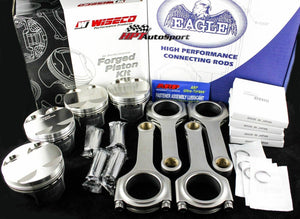

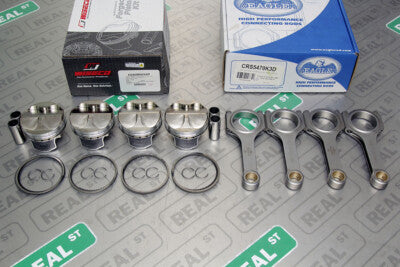

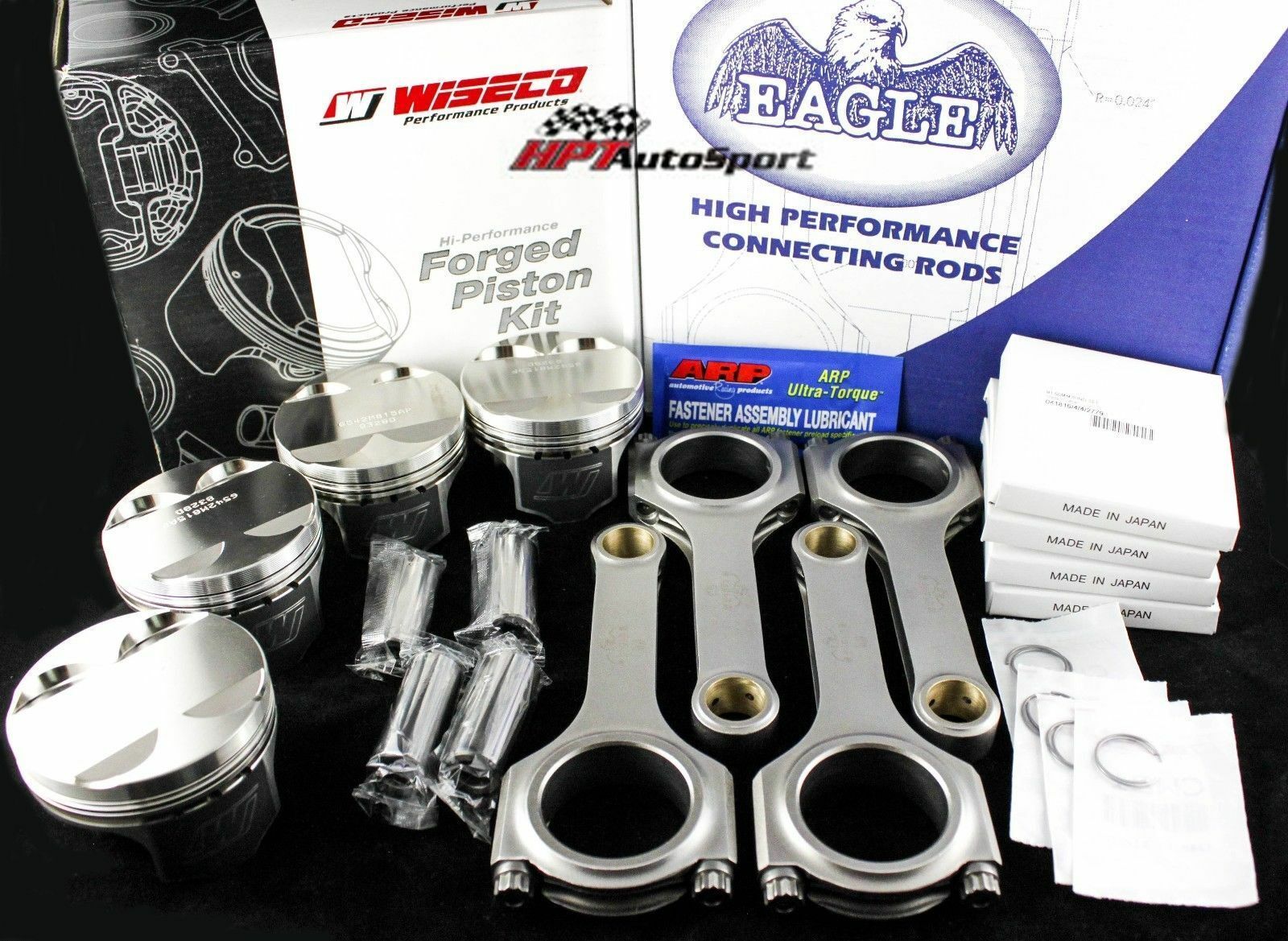

What's included:(4) Pistons(4) Piston ring sets(4) Wrist pins (4) Connecting rods(8) ARP 2000 bolts
Part #: K650M865AP/CRS5470K3D
