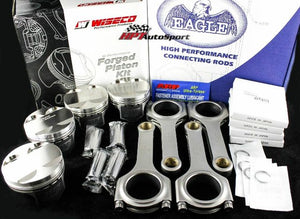

Wiseco Pistons & Eagle Rods Acura Integra GSR B18C 81.5mm K593M815AP/CRS5430A3D

Retail Price:


Sold Out

Wiseco Pistons & Eagle Rods Acura Integra


Compression Ratio:





Wiseco pistons Valve pocket designs allow maximum flow around the valve, allowing the use of oversized valves and high lift cams.
Piston crown shapes are designed to promote the maximum intake charge efficiency through a scavenging mixture ‘Cross Flow’ during intake and exhaust valve overlap.
More fuel and air equals more horsepower.
Piston domes are designed for optimal quench during the compression/ combustion cycle, resulting in resistance to detonation and pre-ignition.
The end product is longer engine life and increased horsepower potential.
Precision machined ring grooves with proper orifice/ accumulator volume feature calculated groove root diameters and axial widths, providing excellent surface finish and flatness, maximum ring seal, and minimized blow-by and oil consumption.
 Eagle H-beam connecting rods are forged from SAE 4340 steel for superior strength.
ARP bolts (2000, 8740 or L19 Series) and alignment sleeves are used for durability and precise cap location.
Sets are weight matched to +/- 1g.
Sizing is performed on the unique Sunnen Kross grinding system for a perfect housing bore.
These are the perfect choice for engines up to 750 hp.

Notes: Forged Steel H-Beam Connecting RodsWeight: 535gBolts: ARP 2000Length: 5.430Rod Journal: 1.7710Housing Bore: 1.8900Pin size: 0.827Big end width: 0.8580Pin end width: 0.7250Thickness above pin: 0.205
What's included:(4) Pistons(4) Piston ring sets(4) Wrist pins (4) Connecting rods(8) ARP 2000 bolts
