Wiseco Pistons & Eagle Rod Combo for Subaru WRX EJ20 8.35:1 92mm

Description

Wiseco Pistons & Eagle H-Beam Rods Combo – Subaru WRX EJ20 92mm 8.35:1 CR – Forged Performance Kit

Take your Subaru EJ20 engine build to the next level with this high-performance piston and rod combo from Wiseco and Eagle. Designed for durability, power, and precision, this set is ideal for high-horsepower street and race applications.

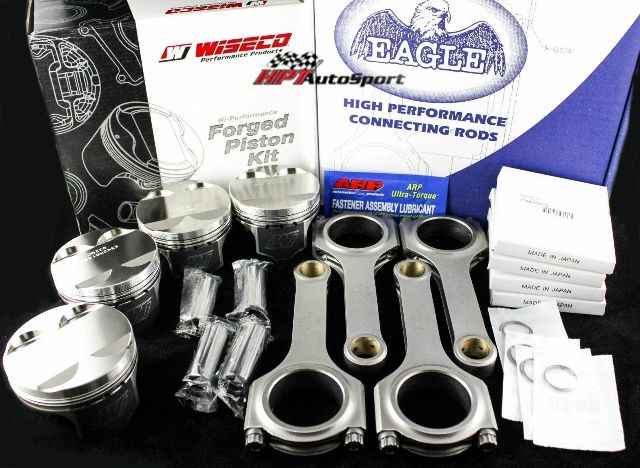

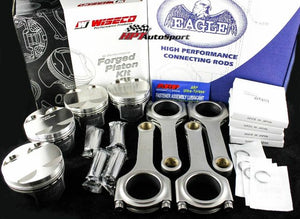

🧰 Kit Includes:

• (4) Wiseco 92mm Forged Pistons – 8.35:1 Compression Ratio

• (4) Piston Ring Sets

• (4) Wrist Pins

• (4) Eagle H-Beam Connecting Rods – Forged 4340 Steel

• (8) ARP 2000 Rod Bolts

Part #: K588M92AP / CRS5137S3D

🔥 Wiseco Forged Pistons – Key Features:

• Designed for High Performance & Boosted Applications

• Valve pocket design allows max flow for oversized valves & high-lift cams

• Piston crown promotes optimal scavenging during valve overlap for better intake charge

• Domes engineered for quench efficiency, resisting detonation and pre-ignition

• Precision-machined ring grooves for excellent seal, reduced blow-by & oil consumption

📏 Specifications:

• Bore Size: 92mm

• Compression Ratio: 8.35:1 (for EJ20)

• Piston Type: Forged aluminum

• Wrist Pin Included

💪 Eagle H-Beam Connecting Rods – Key Features:

• Forged from SAE 4340 Steel for superior strength

• Weight matched to ±1g per set

• Fitted with ARP 2000 rod bolts for added reliability under high load

• Sized using Sunnen Kross-Grinding system for perfect bore sizing and alignment

• Ideal for builds up to 750 horsepower

📏 Rod Specs:

• Length: 5.137"

• Rod Journal: 2.0470"

• Housing Bore: 2.1650"

• Pin Size: 0.906"

• Big End Width: 0.8420"

• Pin End Width: 0.8420"

• Thickness Above Pin: 0.190"

• Weight: Approx. 530g each

🏁 Application:

• Subaru WRX EJ20 Engines

• Perfect for turbocharged builds, street/strip use, and long-lasting performance

✅ Condition: Brand New
🚚 Fast Shipping – In Stock & Ready to Ship
