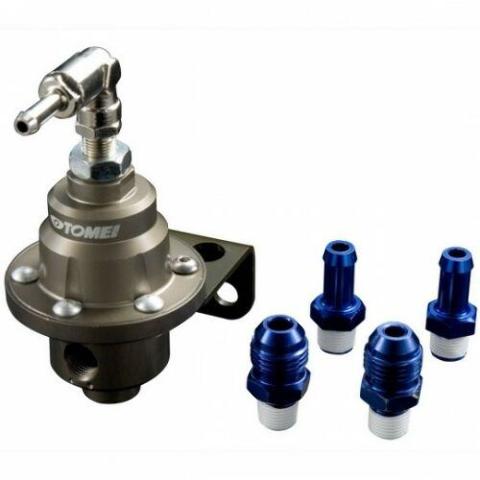

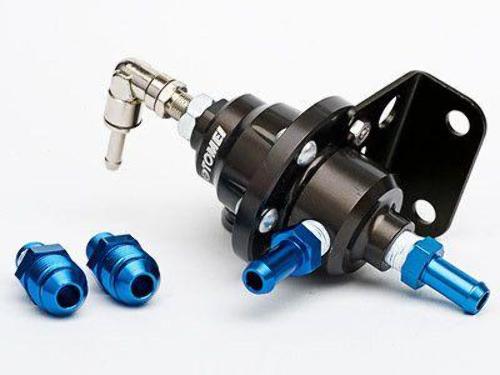

Tomei Fuel Pressure Regulator (Type-S) Genuine Tomei - TB507A-0000A

Description

When the injectors and fuel pump are upgraded to a larger flow setup the stock fuel pressure regulator will not be enough to suit the required pressures for the new setup. Also the stock is already preset to from factory for the standard setup and non adjustable so it will be restricting the tuning potential of the car. The TOMEI Fuel Pressure Regulator will ensure stable pressures are supplied with the oversized diaphragm. This special design has proven to maintain the required pressure levels with any adjustments made.

HARD ANODIZED FINISH

The Hard Anodizing finish adds more protection to the Regulator since the Regulator will spend it's time in a harsh environment. This finish helps protect the thick membrane from harmful grit and grime and with the additional resistance to corrosion and heat and electrical insulation these aspects help maximize its durability and safety.

AN6 1/8x2 / #8 STRAIGHT 1/8NPTx2 FITTINGS

Our Regulators are supplied with 2 of each AN6 and #8 nipple connectors which are the most popular type of fitments for fuel piping. Ready to install and use from the box. *Depending on your setup you may require additional equipment/parts to complete the install.
* Other piping is required and not included.

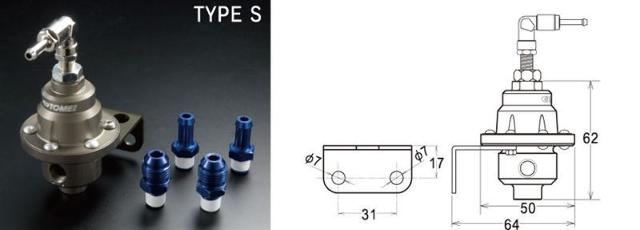

Weight: 155g (with bracket)
Diaphragm Diameter: 33
Vacuum Hose Nipple: 4.5
Pressure Adjustability: 2.0kgf/cm�-8.0kgf/cm� (28.45PSI-113.8PSI)

Part #: TB507A-0000A
