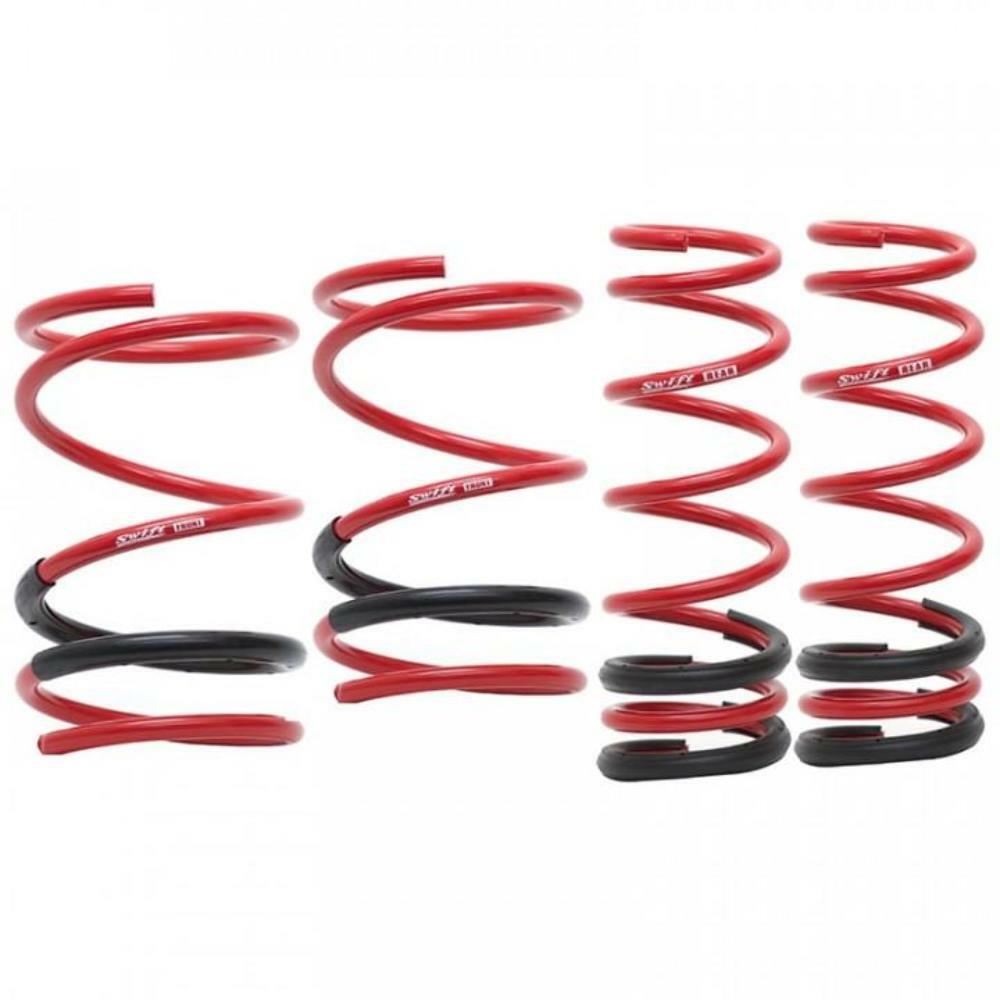

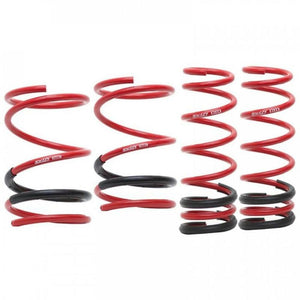

Swift Sport Lowering Springs for Subaru Impreza WRX Wagon 02-03
Description
Description:
Swift made Sport Springs keeps the quality ride you get from the showroom, and adds improved handling and lower ride height for driving enthusiasts and style minded drivers who demand only the best.
From HPDE events to SCCA competition, Swift Spec-R Sport Springs are made for the track enthusiast looking to take their vehicle to the next level.
Details:
Applications:
| SUBARU | Note | Chassis Code |
Year | Part No. | Spring Rate | Drop | ||||||
| Front | Rear | Front | Rear | |||||||||
| Kg/mm | Lbs/Inch | Kg/mm | Lbs/Inch | mm | Inch | mm | Inch | |||||
| IMPREZA WRX | WAGON | GGA | 02-03 | 4F003 | 3.3 | 185 | 2.9 | 162 | -30 | -1.2 | -15 | -0.6 |
| IMPREZA WRX | SEDAN | GDA GDB | 02-03 | 4F005 | 3.3 | 185 | 2.7 | 151 | -30 | -1.2 | -15 | -0.6 |
| IMPREZA WRX | WAGON | GGA | 04-07 | 4F903 | 3.3 | 185 | 2.9 | 162 | -30 | -1.2 | -30 | -1.2 |
| IMPREZA WRX | SEDAN | GDC GDD | 04-07 | 4F901 | 3.4 | 190 | 2.7 | 151 | -25 | -1.0 | -20 | -0.8 |
| IMPREZA WRX | SED / WAG | GE6 / GH6 | 09-10 | 4F909 | 4.0 | 224 | 3.8 | 212 | -20 | -0.8 | -18 | -0.7 |
| IMPREZA WRX | SED / WAG | GE6 / GH6 | 11-14 | 4F907 | 4.5 | 252 | 4.2 | 235 | -20 | -0.8 | -20 | -0.8 |
| IMPREZA WRX STI | PCD 100 | GDF | 04-07 | 4F902 | 4.5 | 252 | 4.0 | 224 | -15 | -0.6 | -10 | -0.4 |
| PCD 114.3 | GDFD | 05-07 | -20 | -0.8 | -20 | -0.8 | ||||||
| IMPREZA WRX STI | SED / WAG | GRB | 08-10 | 4F907 | 4.5 | 252 | 4.2 | 235 | -20 | -0.8 | -20 | -0.8 |
| LEGACY GT | SEDAN | BL6 | 05-09 | 4F008 | 4.3 | 241 | 6.6 | 370 | -30 | -1.2 | -25 | -1.0 |
| LEGACY GT | WAGON | BP6 | 05-09 | 4F007 | 4.3 | 241 | 6.6 | 370 | -30 | -1.2 | -25 | -1.0 |
| LEGACY 2.5GT | BM9 | 10+ | 4F910 | 3.4 | 190 | 4.0 | 224 | -33 | -1.3 | -28 | -1.1 | |
| FORESTER | SG6 | 04-08 | 4F904 | 3.2 | 179 | 3.3 | 185 | -40 | -1.6 | -30 | -1.2 | |
| FORESTER | SH6 | 09-13 | 4F908 | 3.8 | 213 | 3.6 | 202 | -20 | -0.8 | -20 | -0.8 | |
| FORESTER | TBA | 14+ | ||||||||||
| BRZ | ZC6 | 13+ | 4F912 | 3.8 | 213 | 4.5 | 251 | -27 | -1.1 | -25 | -1.0 | |
| WRX STI | TBA | 15+ | ||||||||||
Part #:4F003
