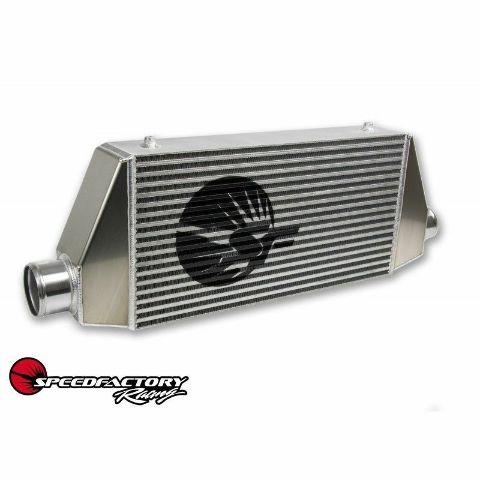

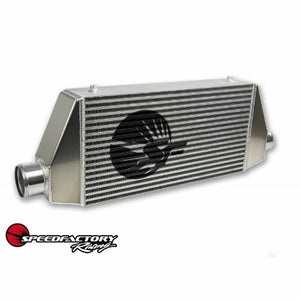

SpeedFactory Standard Side Inlet/Outlet Universal Front Mount Intercooler - 3"
The SpeedFactory SS-850 Side Inlet/Outlet Intercooler is built with a high quality 3" thick SpeedFactory Air-to-Air Intercooler Core, featuring bar and plate construction with a very specific staggered fin combination engineered to achieve maximum cooling efficiency while minimizing pressure drop. Our custom engineered end tanks are carefully hand-formed in house from H-3 5052 aluminum and are fully TIG welded. This intercooler is ideal for many street and race applications where space is limited but 600-850HP of efficient charge air cooling is desired.
This intercooler comes standard with 3" inlet / 3" outlet bead rolled tube ends. All of our intercoolers ship complete with the SpeedFactory logo stenciled on the face of the core and come with M8x1.25mm aluminum mounting bungs already attached for easy installation. Deliver significantly cooler, denser air to your engine with a performance proven SpeedFactory Racing Intercooler.
-Core size is 24" x 12" x 3"
-Overall size is 35.25" (inlet to inlet) x 12" tall x 3" thick
-Unparalleled craftsmanship and race proven performance
