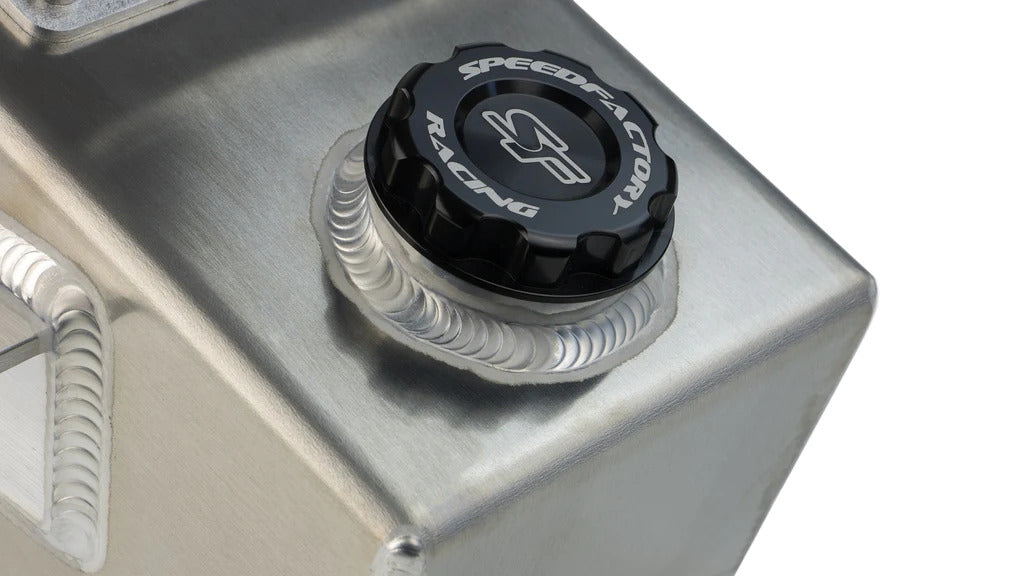

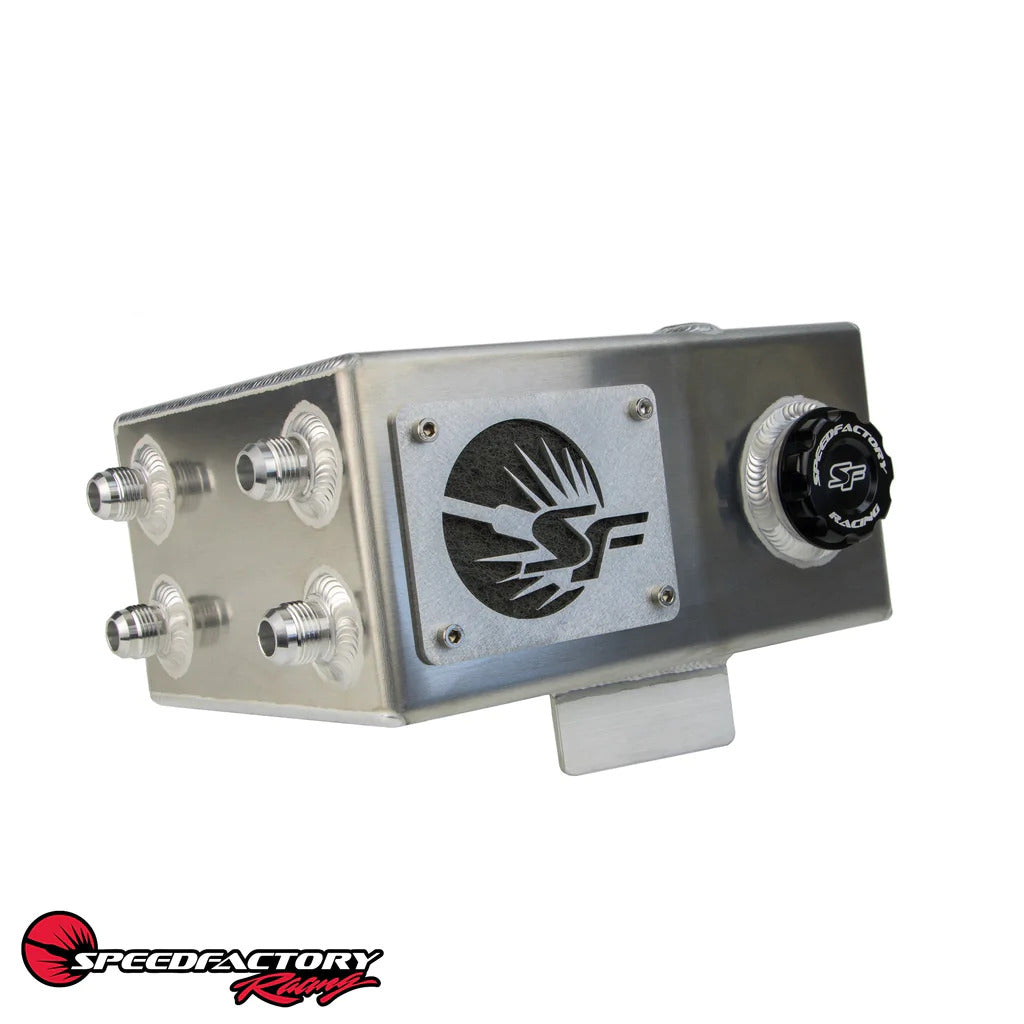

The SpeedFactory Racing Right Hand Drive Angled Oil Catch Can with built in Coolant Overflow Tank is specifically designed for forced induction and heavily modified naturally aspirated engines. This breather setup is engineered to provide the sufficient crankcase ventilation your high performance engine needs, and also condenses crankcase blow-by oil and moisture correctly.The factory PCV system is replaced and all oil vapors are vented to the atmosphere through the laser cut logo. The integrated coolant overflow tank saves precious engine bay space and replaces the unsightly factory plastic unit.
Our catch cans are CAD designed and CNC press punched using the latest state of the art technology. The catch can and all billet fittings are professionally TIG welded to top off that ultra clean look, and each unit ships with an aluminum mounting bracket attached for ease of installation. This catch can mounts cleanly in the factory battery and fuse box location on RHD 92-00 Honda Civic and RHD 94-01 Acura Integra.
This kit includes: (1) catch can with filter and breather plate, removable Billet SpeedFactory coolant reservoir cap, (2) -10AN weld fittings on the upper side, (2) -10AN weld fittings on the lower side, and (2) 1/8"NPT female weld bungs ( One for coolant overflow hose from radiator cap (Bottom) and 1 vent (top).
Speedfactory Racing Catch Can Hose and Fitting Kits available here!
Catch Can Dimensions: 10" L x 5" W x 8" H
