SpeedFactory Racing K-Series VTEC Wet Deck Fire Ring / Copper Head Gasket Kits

Description

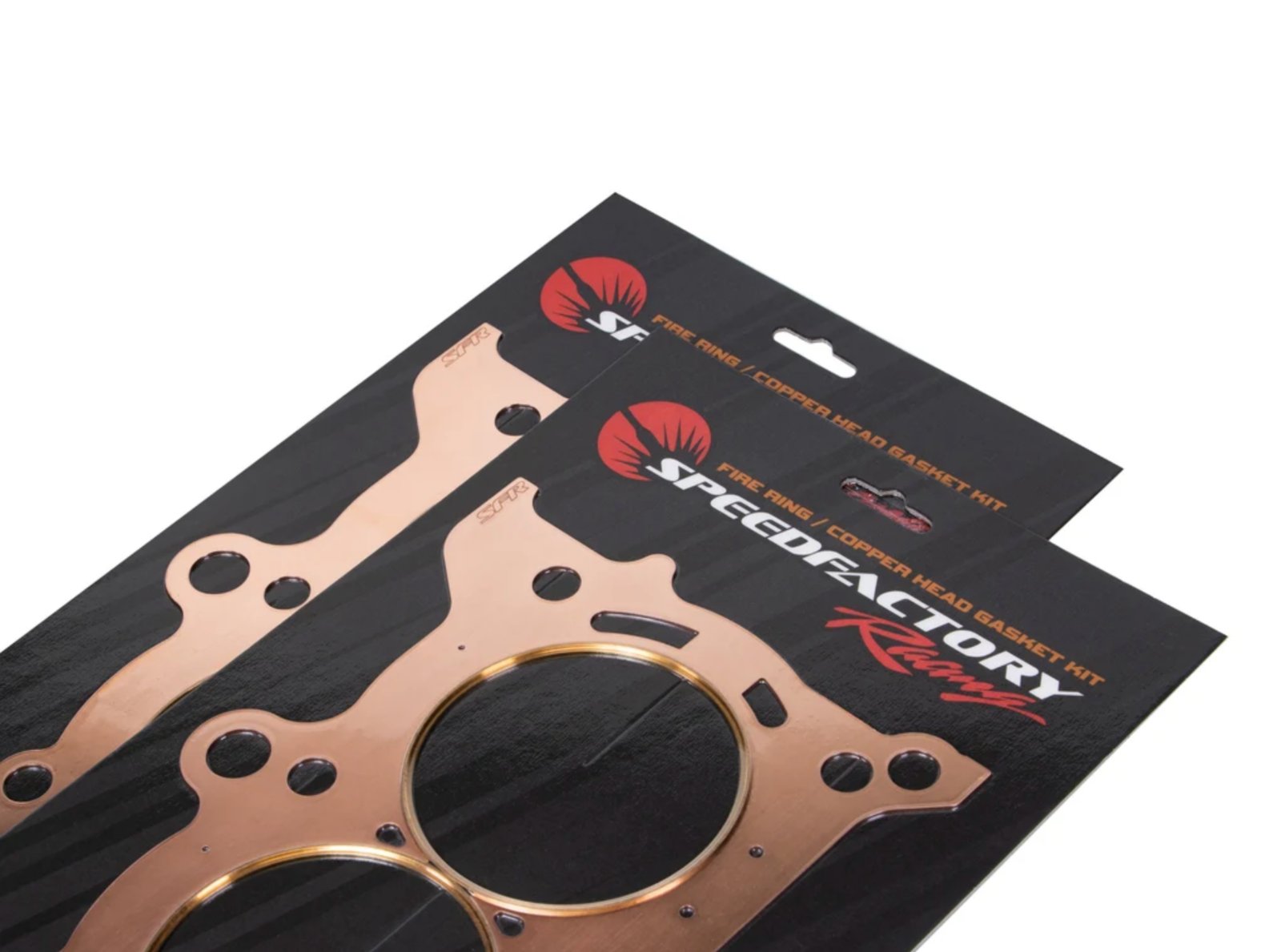

SpeedFactory Racing Fire Ring/Copper Head Gasket Kit - K-Series VTEC Engines

PAIR WITH OUR SPEEDFACTORY RACING L19 or CA625+ HEAD STUD KITS FOR THE ULTIMATE SEALING COMBO

The SpeedFactory Racing Fire Ring / Copper Head Gasket Kits provide the best cylinder sealing solution for max effort turbocharged drag racing engines, proven to the extreme at over 110+psi of boost and 2400+HP in our own engine program!

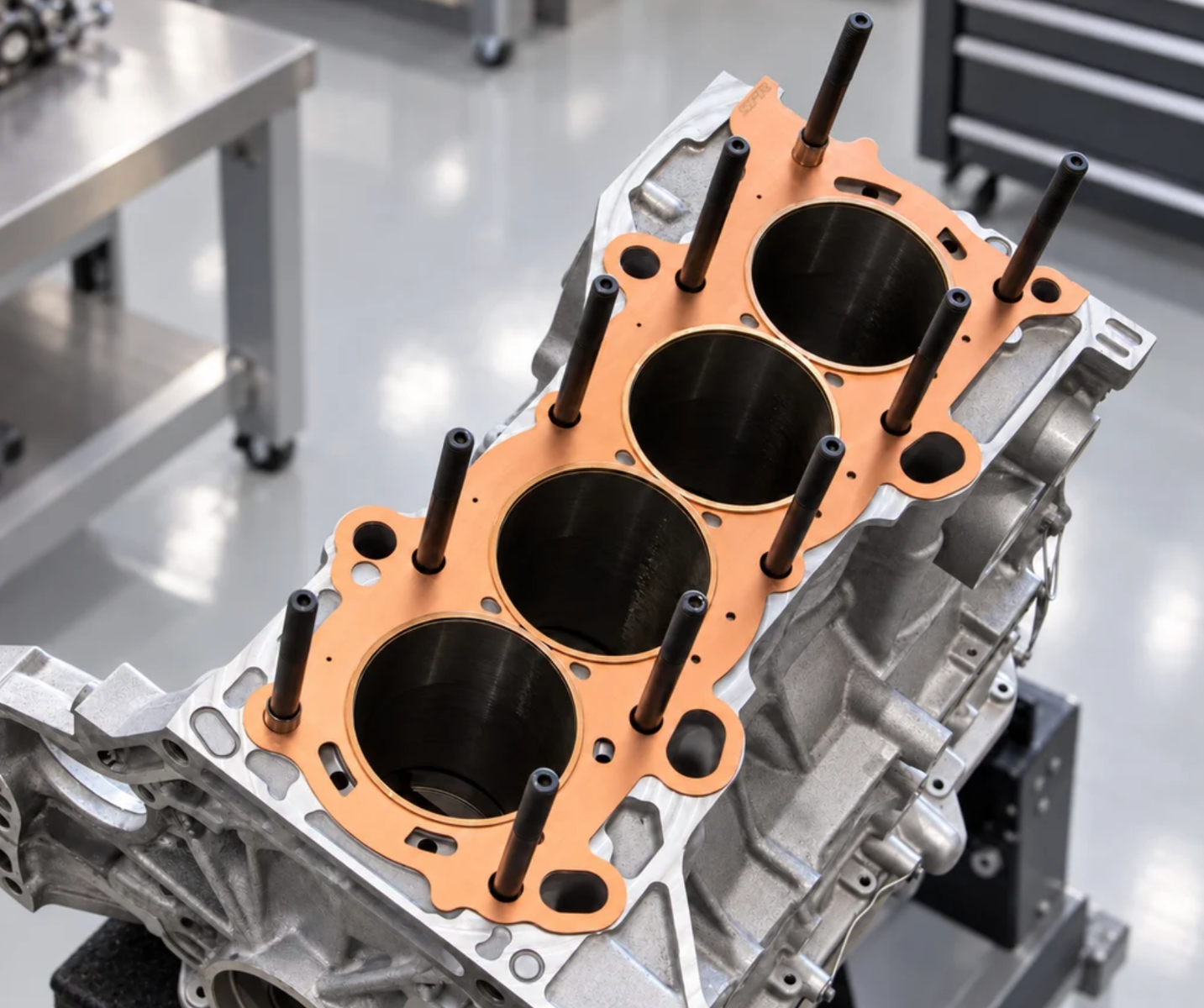

Our gaskets are compatible with sleeved OEM blocks as well as billet blocks, featuring enlarged head stud holes for compatibility with stock diameter or 1/2” head studs.

The 2 locating dowel holes remain OEM sized and are the only holes that need to be modified if running 1/2" head studs (simply enlarge them with a 19/32” drill bit).

Deck Options:

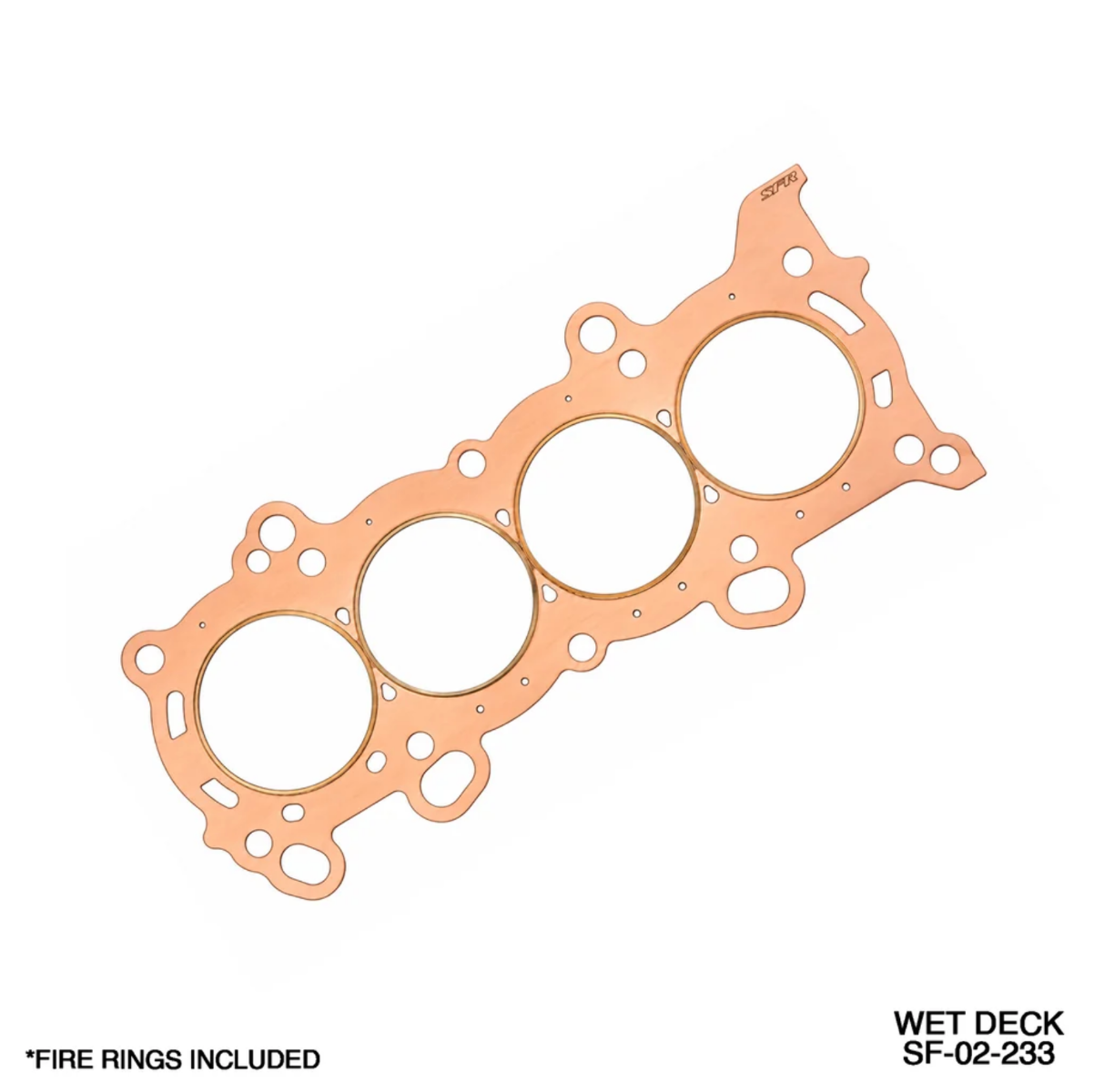

Wet Deck (OEM Style with coolant passages)
Dry Deck (No coolant passages)

Kit Includes:
•    (4) Beryllium-Copper Fire Rings
•    Copper Head Gasket, 1.2mm (.047") thick

Features:
•    Suits up to 88.50mm (3.484”) cylinder bore
•    Sleeved OEM block compatible - fits standard 14mm dowels

INSTALLATION NOTES:

Requires 93.90mm OD fire ring receiver grooves in sleeves - use .039" cutter insert. Groove dimensions are .040” wide x .040" deep (see images for system detail).

For sealing the oiling and cooling passages we've had good success using ThreeBond 1207B silicone.
