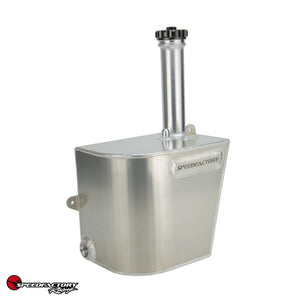

SpeedFactory Racing Front Mount Drag Race Fuel Cell SF-02-090

SpeedFactory Racing Front Mount Drag Race Fuel Cell SF-02-090

  • $388.54
    Unit price per


Description

After many requests for a superior fuel cell we are proud to release the new SpeedFactory Racing Front Mount Drag Race Fuel Cell!

The team at SpeedFactory Racing has developed this left side frame rail mounted fuel cell with many performance & safety features in mind.

UNIQUE FEATURES:

- Anodized 2.5” Billet screw-on fill cap with integrated high flow roll over vent valve to ensure no vacuum or pressure build up and prevent fuel spillage in the event of an accident! This is an often overlooked component that is important for proper performance & safety and is mounted at the highest point in the fuel cell to ensure proper operation. The anodized cap will help prevent corrosion and galling of the threads.

- Female -12AN ORB feed fitting with internal pickup tube for maximum flow and to prevent cavitation due to fuel slosh under heavy acceleration. Easily adaptable to any desired size feed line and eliminates having to cut off and re-weld on a new fitting if yours gets worn or damaged, or you change your feed line size!

- Male -8AN return fitting is positioned to direct returned fuel to the internal pickup tube inlet for superior performance when fuel level is low.

- Straight fill neck for easy filling & viewing of fuel level

- Pre-welded mounting tabs for easy installation

- Large 2.2 gallon capacity to support thirsty turbocharged cars on methanol

- Leaves room to fit a crash bar around the cell

- Expertly TIG welded

- Laser-cut SpeedFactory Racing badge



- Tested Direct Fitments:

EG Civic (1992-1995)

EK Civic (1996-2000)

DC Integra (1994-2001)

*Will fit most other Honda/Acura models with minor fabrication

**Please allow up to 14 days for manufacturing**
