SpeedFactory HPX Dual Backdoor Front Mount Intercooler - 3" Inlet / 3.5" Outlet
SpeedFactory HPX Dual Backdoor Universal Front Mount Intercooler - 3" Inlet / 3.5" Outlet (1200HP)

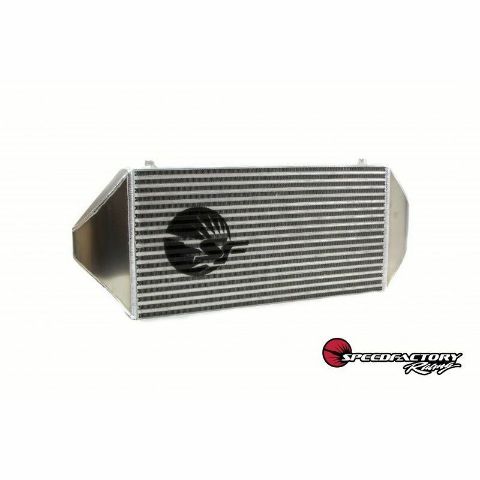

The SpeedFactory DBD-1200 Dual Backdoor Intercooler is built with a 4.5" thick, high quality aluminum bar and plate intercooler core for maximum efficiency. Our custom engineered end tanks are carefully hand-formed in house from H-3 5052 aluminum and are fully TIG welded. This 1200HP rated, smooth-flowing intercooler was designed specifically to fit tidily between the front framerails on street/racing applications, and requires minimum charge pipe lengths.
This intercooler comes standard with 3" inlet / 3.5" outlet bead rolled tube ends. Vibrant Performance Vanjen clamps are also available upon request for faster, more secure charge pipe connections. All of our intercoolers ship complete with the SpeedFactory logo stenciled on the face of the core and have M8x1.25mm aluminum mounting bungs already attached for easy installation.
-Rated for up to 1200HP
-Core size is 24"x12"x4.5"
-Overall size is 35.2.5" width x 12" tall x 4.5" thick
-Will fit most Honda/Acura chassis with modification
-This intercooler can be made into a combo with one of our SpeedFactory Tucked Radiators
-Unparalleled Craftsmanship and race proven performance
