SpeedFactory Aluminum Tucked Radiator w/Dual Fan Shroud for K Series 32MM SF-06-034
Description
The newly revised SpeedFactory Racing Aluminum Tucked Radiator is a must have when trying to utilize precious engine bay space in your Honda/Acura vehicle. These radiators are substantially more efficient than your OEM radiator even under average daily driving conditions, and also provide lower coolant temperatures in very extreme environments and conditions- resulting in the increased performance you need all around for your vehicle.

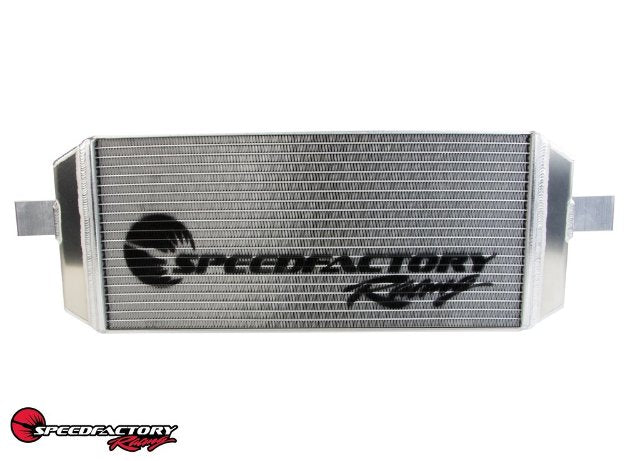

- The radiator core is USA made, 100% aluminum and the radiator is a dual pass, dual core cross flow design that is proven to reduce coolant temperatures by up to 20-30 degrees.

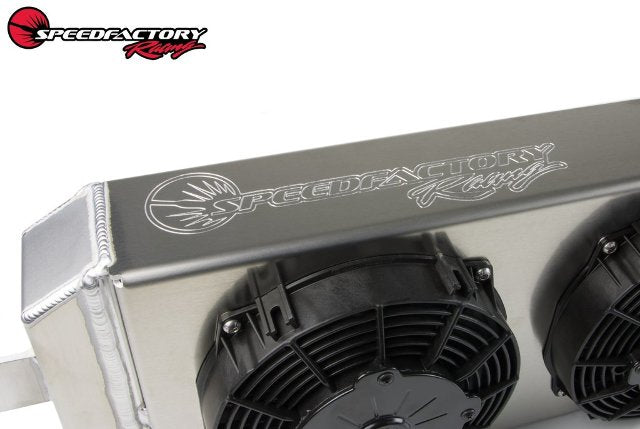

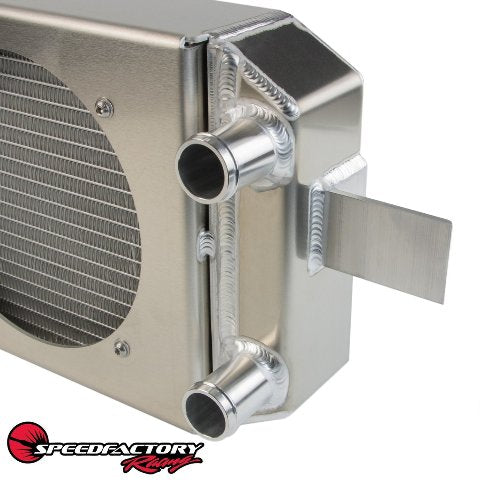

- The Speedfactory logo is CNC engraved into the top of the shroud, and these radiators are available in standard hose end (32mm) or -16AN configurations for the ultimate clean look.
- This radiator is designed for street, track, and show applications.
- Minor drilling (and in some applications minor cutting) is necessary for installation.
- Dual SPAL High Performance cooling fans and 1-piece aluminum fan shroud isattached for maximum cooling efficiency.
- Overall dimensions: 24" wide x 9 1/2" tall x 5 1/2" thick (Thickness includes fan shroud and fans).
- All SpeedFactory Racing radiators are proudly manufactured and pressure tested in-house
- Hundreds of road racers, drag racers, show car owners, and daily drivers all around the world are staying cool with a SpeedFactory Racing Aluminum Tucked Radiator. Order yours today!
Notes: Hose and Fitting not included and sold separately. Radiator's are made to order and ship directly from SpeedFactory. Lead time before shipment is 5-7 business days.
For -16AN hose end applications: (4) fittings, (5) feet of hose, a SpeedFactory Filler Neck (appropriate for your engine) and a SpeedFactory -16AN Thermostat Housing will be necessary for installation and are available to purchase as well. Please inquire with us before purchase.
Our fitting configuration recommendations are as follows:
GS-R Cylinder Head:
Thermostat Housing - 45 Degree Fitting
Bottom of Radiator - 45 Degree Fitting
Filler Neck - 90 Degree Fitting
Top of Radiator - 45 Degree Fitting
B16 / Type R Cylinder Head:
Thermostat Housing: - 45 Degree Fitting
Bottom of Radiator - 45 Degree Fitting
Filler Neck - 45 Degree Fitting
Top of Radiator - 45 Degree Fitting
K-Series Engines
Thermostat Housing - 45 Degree Fitting
Bottom of Radiator - 90 Degree Fitting
Filler Neck - 45 Degree Fitting
Top of Radiator - 45 Degree Fitting
