RSX K20 Oil Pump Kit Modified to fit k24/k20z3 Block RSX-S Honda Acura
Description
New OEM Factory K20a2 PRB Oil Pump Kit
- CNC precision machined and ready to bolt onto k24a & k20z3 engine blocks
- 100% Bolt on assembly
- Quality checked with care in house before shipment

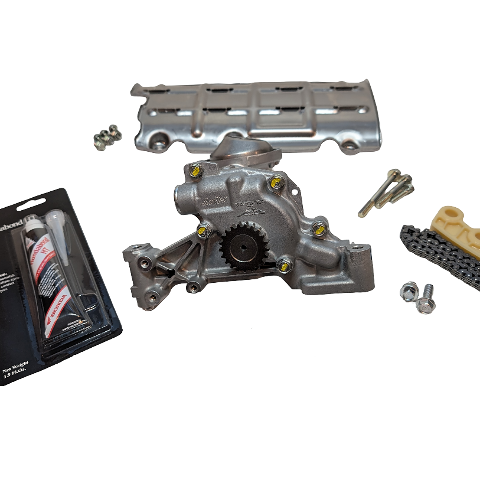

Includes:
- new k20a2 oil pump
- new k20a2 oil pump chain
- new k20a2 chain guide
- new k20a2 baffle plate
- all bolts needed to mount oil pump and accesories
- bolt/washer to block off oil feed passage
- (1) Tube of Hondabond
K24a1 / K24a2 /K24a3 / K24a4 /K24a8 and JDM K24A engines up to 2008 only.
Notes:

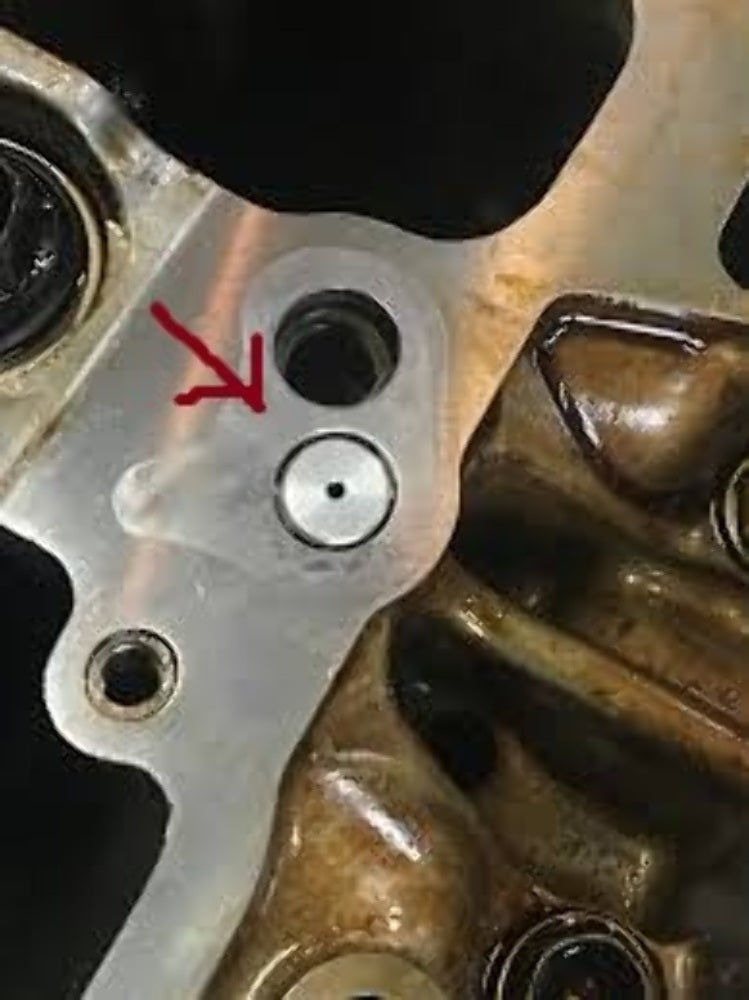

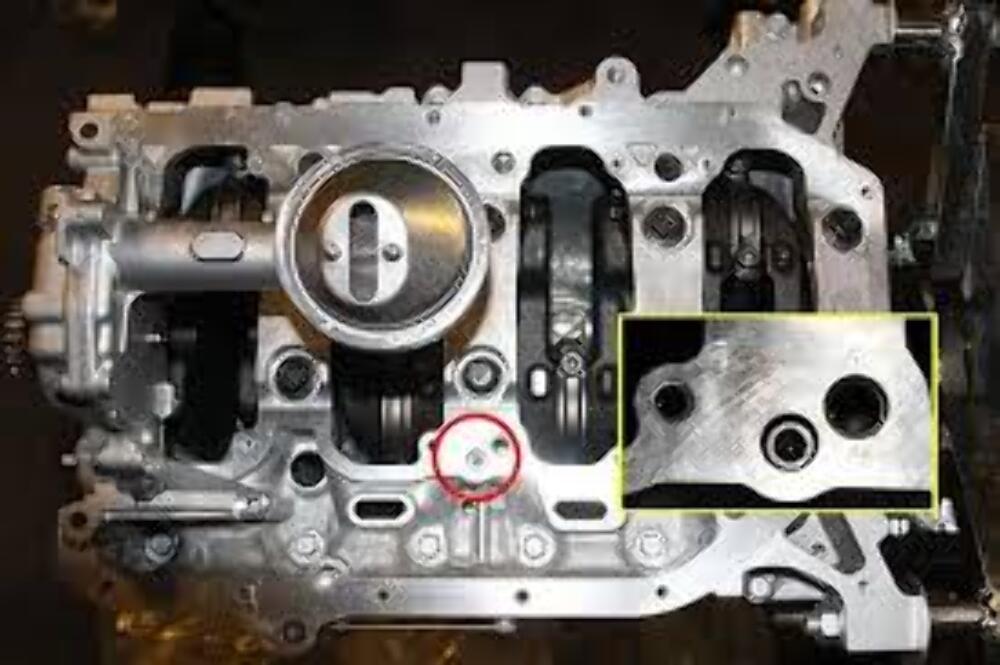

- Oil orifice must be removed from lower block and plugged to ensure proper oil pressure (see image attached)
- Some blocks will not be threaded for the block off bolt. In this instance we recommend tapping the block to accept the supplied bolt/washer.
- Some block may not accept the supplied block off bolt. In this instance, we recommend using any similar size bolt with the correct thread pitch. ( K24a2 will need a M8 x 1.25 1 inch bolt and washer)
- REQUIRES RE-USE OF FACTORY K24 OIL PUMP TENSIONER on K24a block
- K20z3 requires use of k24a oil pump tensioner part #13450-RAA-A02
- Will not bolt up to K24z Series Engine Blocks without more modification on the end user's side.
