Description
Overview
Engineered to push the performance of your FK8 to its peak, the PRL Motorsports Carbon Fiber Turbocharger Inlet Pipe Kit is a bolt-on mod that removes airflow restrictions at the turbocharger inlet, dramatically improving efficiency, throttle response, and turbo spool. With an 80mm OD carbon fiber crossover pipe and a cast aluminum transition inlet, this system is the largest available on the market, offering over 50% more airflow volume compared to stock.
This inlet kit is designed to reduce restriction right before the compressor inlet, the most critical point in the intake path. The result is a dramatic improvement in turbocharger performance, with increased bottom-end power and improved responsiveness across the RPM range.
This system is designed to pair exclusively with PRL’s High Volume Intake System and is compatible with all factory-fitment FK8 turbochargers. No tuning required, just precision fitment, reliable gains, and lightweight performance.
Key Features:
Largest inlet pipe available for the FK8 platform
Over 50% increase in airflow volume vs. factory inlet pipe
Cast aluminum turbo flange transitions smoothly from 64mm ID to 80mm OD carbon tubing
Maximizes intake system efficiency and improves turbocharger response
Increases low-end power and boosts turbo spool
NO ECU calibration required
ONLY compatible with PRL High Volume Intake System
Construction and Materials:
Cast 6061 Aluminum Inlet Flange
Thin-Wall Carbon Fiber Tubing (80mm OD / 78mm ID)
High-Temp 4-Ply Silicone Couplers
304 Stainless Steel Interlocking Worm Clamps
Fitment:
2017–2021 Honda Civic Type-R (FK8)
Fits all variants including RHD and International models
Compatible with all factory-fitment turbochargers
ONLY pairs with PRL High Volume Intake System
DOES NOT fit stock airbox
Also fits 2018–2023 Honda Accord 2.0T when used in conjunction with:
PRL Turbocharger Inlet Pipe Installation Kit
PRL Intake Conversion Hose
OEM Inlet Gasket
Shorter Type-R Turbo Inlet Bolts (Honda PN: 95701-08025-08)

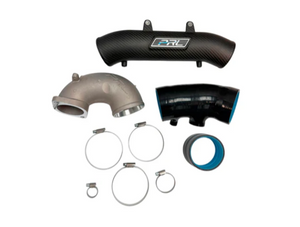

What’s Included:
(1) Cast Aluminum Inlet Piece
(1) 80mm OD Carbon Fiber Inlet Pipe
(2) High-Temp 4-Ply Silicone Couplers
(6) 304 Stainless Steel Worm Clamps
Note: HVI customers should reuse the injection-molded EVAP purge fitting included with their intake.
