MAC Boost Solenoid Valve BCS 4 port Turbosmart AEM Haltech E-Boost w/ fittings
Description

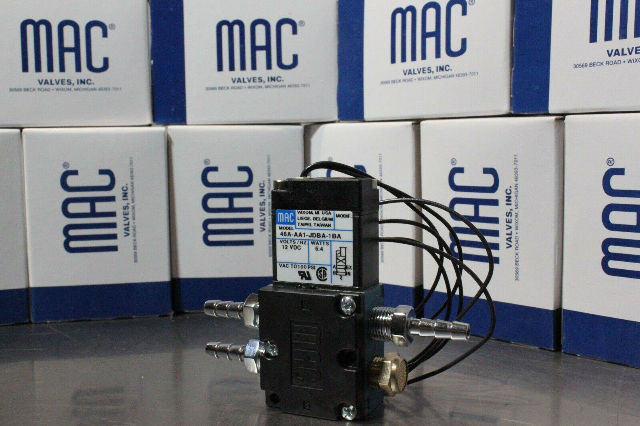

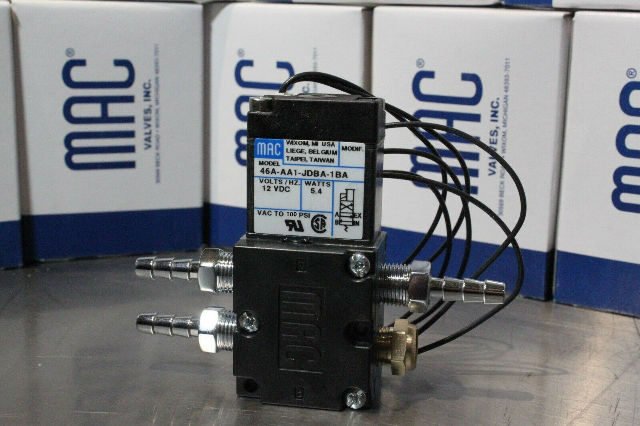

MAC 4-Port Boost Control Solenoid Valve (PN: 46A-AA1-JDBA-1BA) – w/ Fittings & Filter
Compatible with AEM, Haltech, E-Boost, Hondata, and More
Take full control of your turbocharged setup with this MAC 4-Port Boost Control Solenoid (BCS) – the industry-standard solution for precise and reliable boost management. Perfect for street, drag, or track builds, this solenoid allows lower wastegate spring pressures for better spool-up and greater boost control, especially in higher gears.
Unlike 3-port solenoids, this 4-port configuration controls pressure to both the top and bottom of your wastegate diaphragm for faster response, higher boost capability, and improved low-gear modulation.
✅ Performance Benefits:
-
Control 50+ PSI of boost with a 10 lb wastegate spring
-
Enhanced spool-up and mid-range power delivery
-
Increased control at high boost levels and gear-based tuning
-
Compatible with most standalone and piggyback ECUs
🧰 Includes:
-
(1) Genuine MAC 46A-AA1-JDBA-1BA 4-Port Solenoid Valve
-
(3) 1/8" NPT to 3/16" barb fittings (brass or silver – depending on stock)
-
(1) Brass breather filter
📐 Specifications:
-
Type: 4-Port Solenoid Valve
-
Voltage: 12V
-
Coil: 5.4 watts, 25.4 ohms, 0.45A @ 12V
-
Capable of handling full vacuum to 100 PSI
-
Frequency Range: 10–30 Hz (other ranges supported depending on ECU)
-
PWM Controlled – works with most modern ECU systems
⚙️ ECU/Controller Compatibility (PWM Driven):
-
AEM
-
Haltech
-
Hondata
-
E-Boost
-
Autronic
-
Neptune
-
Megasquirt
-
ECtune
-
Nismotronic
-
VEMS
-
MoTeC
💡 Why Choose a 4-Port Over a 3-Port?
4-port MAC valves offer superior boost control resolution, allowing for lower base spring pressures and tighter control across all boost levels — ideal for applications where precision matters.
📦 Ships Fast | ✅ Brand-New & Tested | 💯 Trusted by Tuners Worldwide
