KS tuned Spray Plate 70mm (K-Series RBC PRB) KST-4001

Description

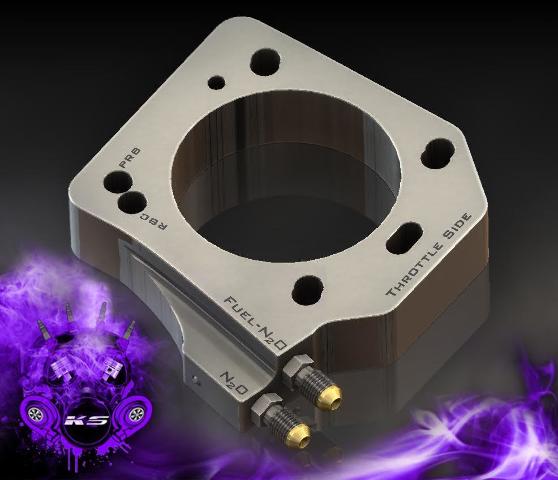

KS tuned K-Series RBC/PRB Spray Plate

The KS tuned PRB/RBC Throttle Body Spray Plate fits both bolt patterns found on PRB and RBC K-series intake manifolds. The bore is 70mm and it works with DBW and cable throttle bodies. The plate includes two stainless steel fittings that accept all brands of standard nitrous jets and will allow for a dual stage dry shot or single stage wet shot. Each fitting leads to no less than five injection ports inside the bore of the plate and each shot can be as large as you can find a jet for.

*We tested for up to 200 HP per fitting.

Vehicle Fitment Applications

• PRB/PRC flanged intake manifolds:
  • Skunk2 Pro Series
  • 02-06 RSX Type-S (K20a2/Z1)
  • 02-05 Civic SI (K20a3)
  • JDM K20A Type R
  • 04-08 TSX (RBB)
  • 02+CRV, 03+Accord, 03+Element (RAA, similar to RBB but smaller plenum and only 60mm TB opening)
• RBC/RRC flanged intake manifolds:
  • 06+ USA Civic SI
  • 06+ Civic Type R, FD2, K20A engine (RRC)

*Jet size is dependent on both fuel pressure and bottle pressure.

Part #:KST-4001
