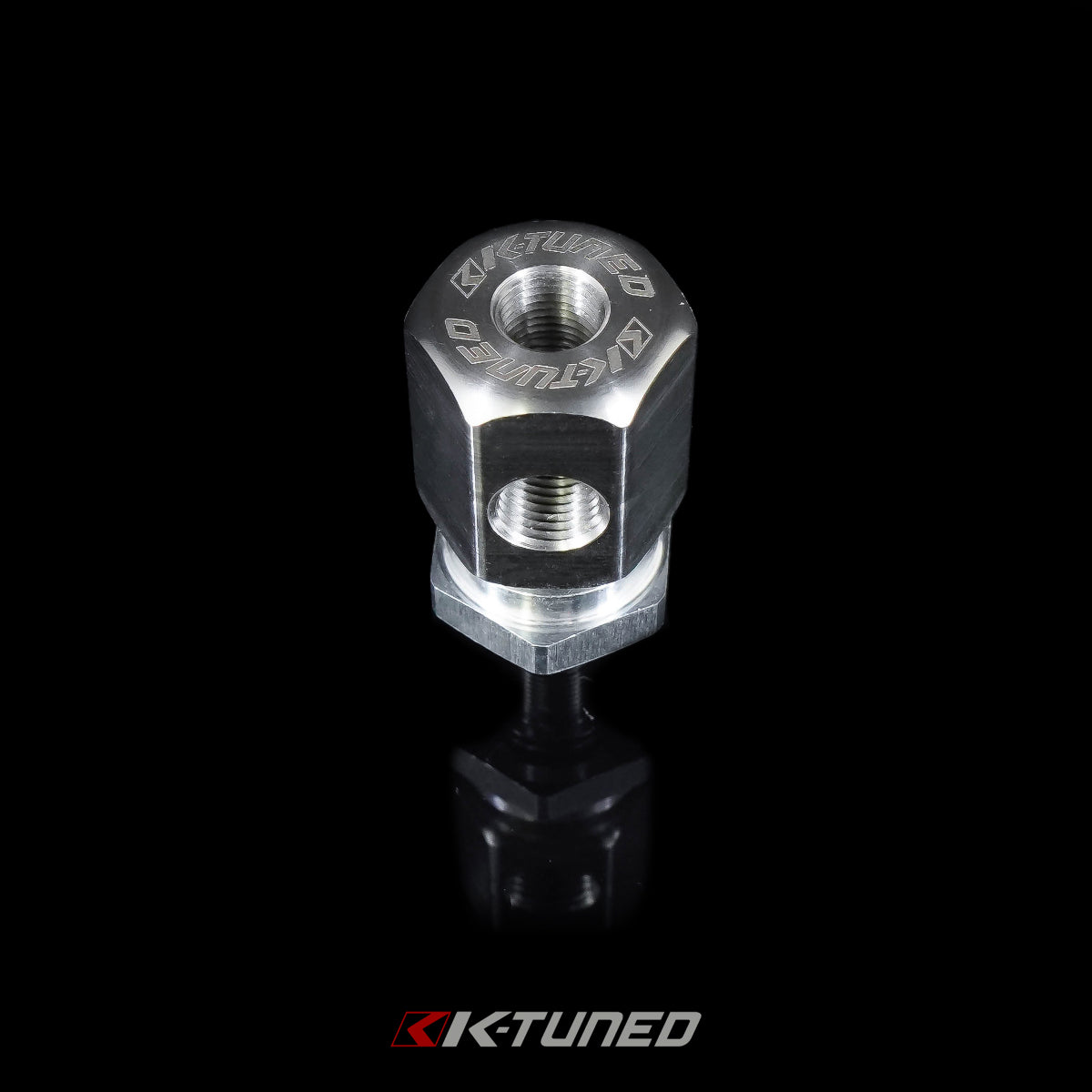

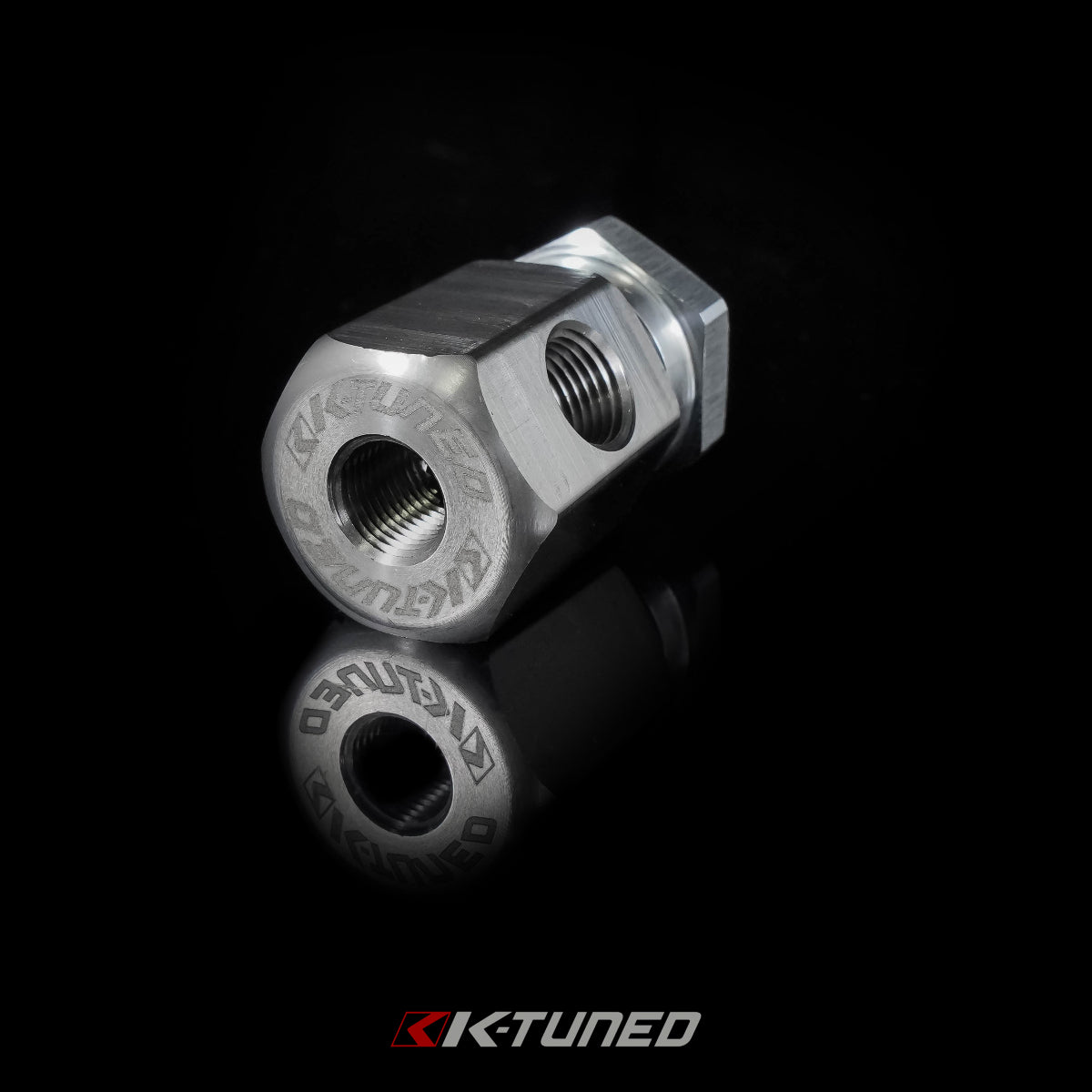

K-TUNED OIL PRESSURE SENSOR ADAPTER (Version 3) for HONDA ACURA K20 K24
Description

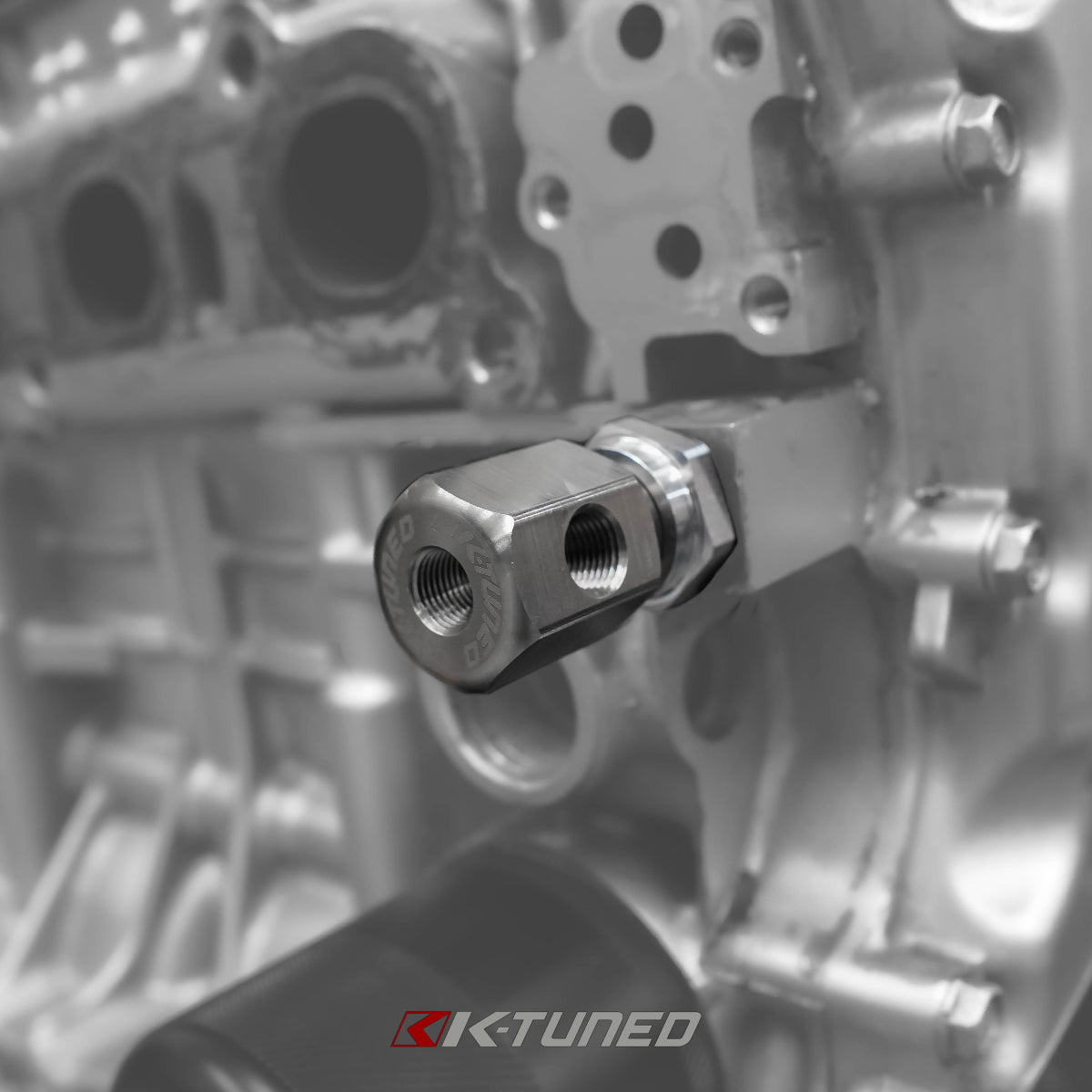

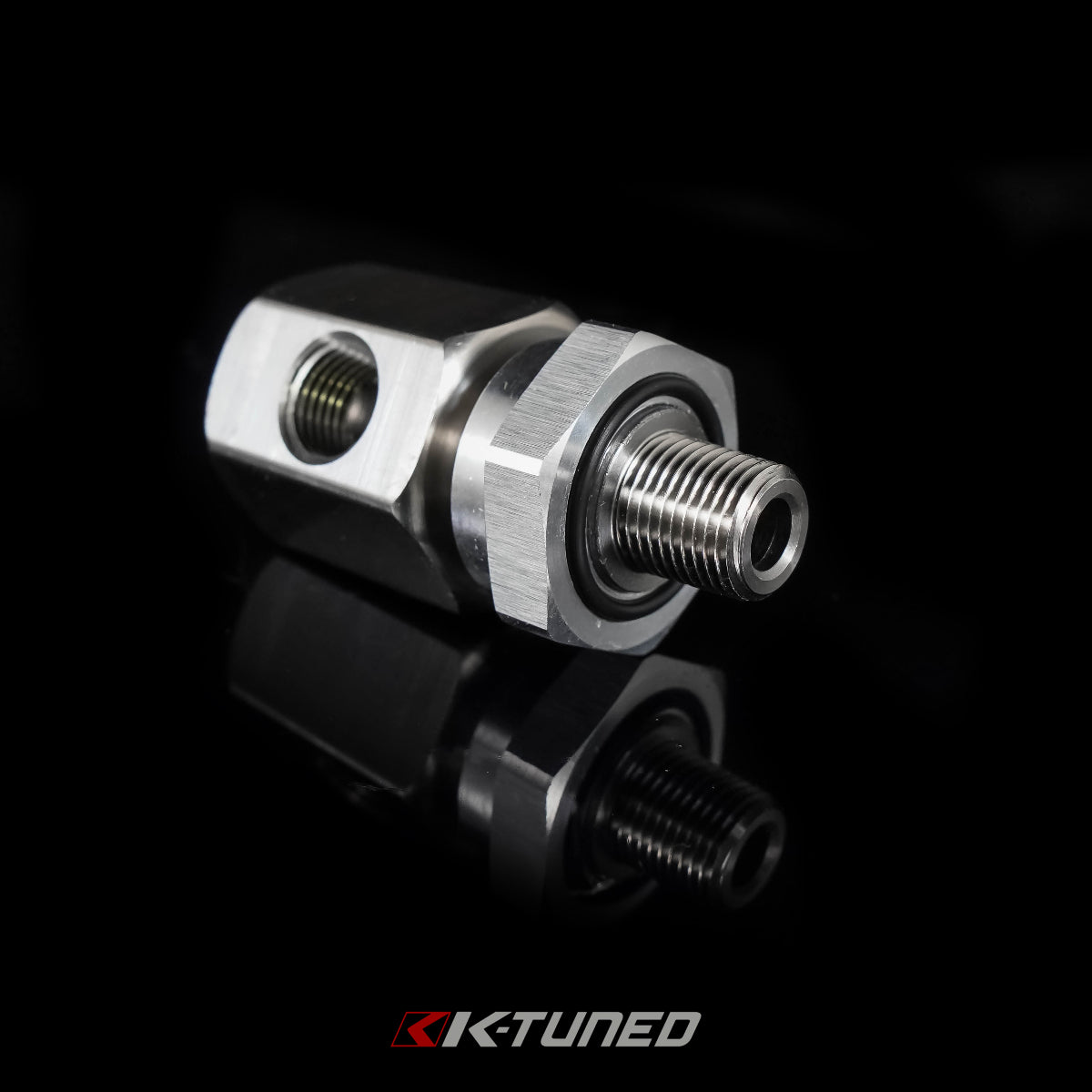

The oil pressure sensor adapter (New Version 3) is must have when adding additional oil sensors or wanting to easily add an oil feed line. Designed with 1/8BSPT male thread to match Honda Block. The adapter offers a couple nice features to help installation and prevent problems. With the new updated version we have added an extension to help clear the oil cooler and VTEC solenoid. The extension will be the first piece threaded into the block using Hondabond to seal it just like the OEM sensor. Then you will thread out adapter into the extension. We have kept the same jam nut with double o-ring seal to help with sideload. The adapter has 3 1/8NPT threads around the end of the adapter and a 1/8BSPT thread at the end for the stock sensor.
The kit includes:
-Oil pressure sensor adapter
-Extra o-rings

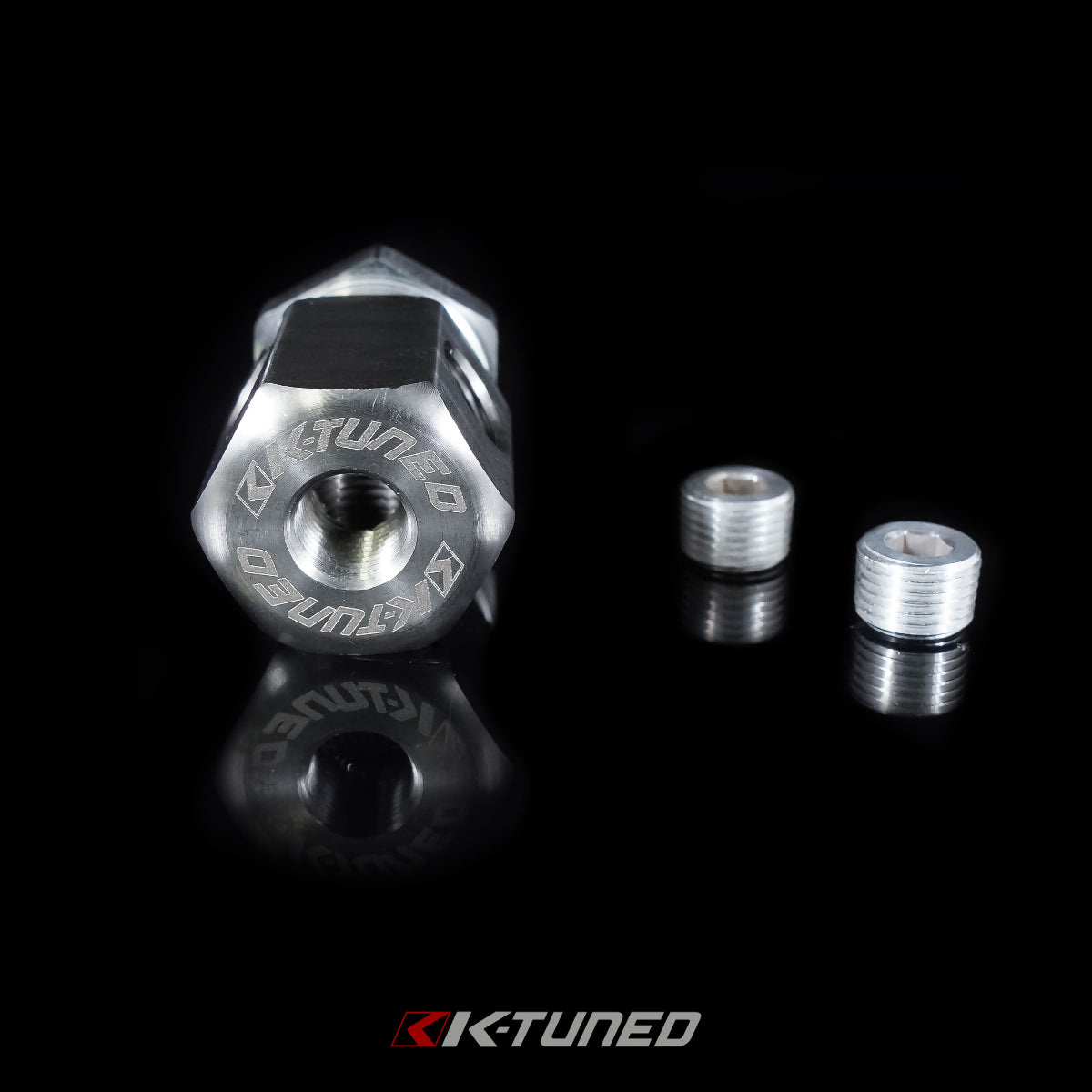

-(2) 1/8NPT plugs.
Part#: KTD-OPS-AD3
Application:
- 1/8 BSPT Thread.
Notes: You must use Hondabond or Teflon tape on all threads on the adapter.
