Description

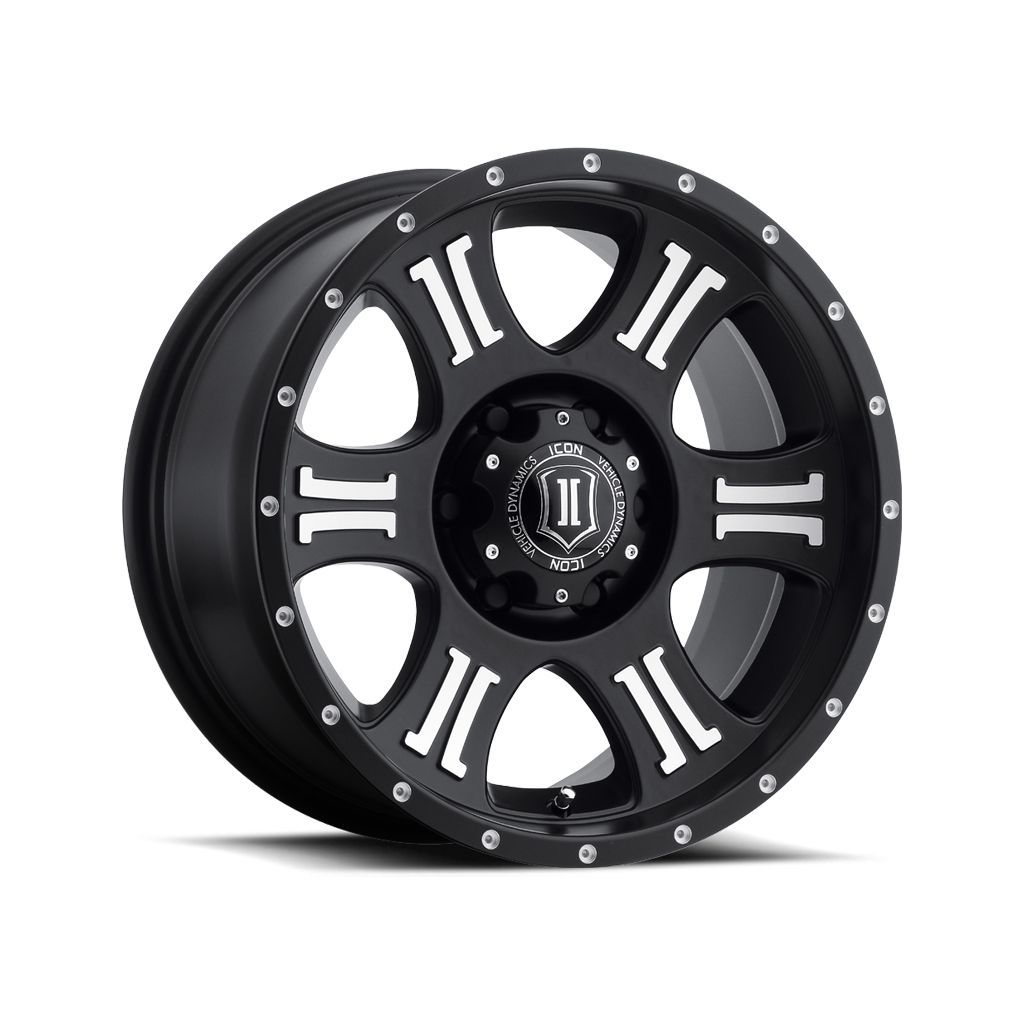

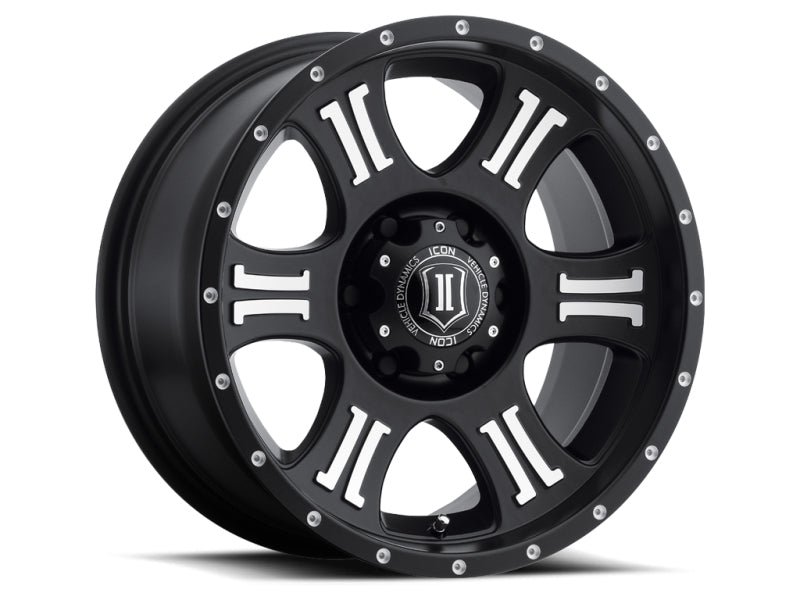

A reflection of ICON Vehicle Dynamics’ dedication to proper fit and function, the SHIELD has been engineered to maximize caliper clearance and optimize wheel position for un-hindered suspension travel and steering function. With backspace dimensions developed specifically for Ford, Toyota and Jeep applications, the SHIELD is the perfect complement to an ICON Vehicle Dynamics suspension system. With a solid set of build features, proven strength, and looks that stand out from the rest, the SHIELD has you covered.
- Application-specific dimensions optimize vehicle dynamics and tire clearance
- Reduced unsprung weight and rotating mass improves on and off-road vehicle performance
- Aluminum alloy construction provides strength properties that are well suited for off-road use
Additional Attributes:
-
GTIN: 00840103412665
-
Material: Aluminum
-
Color: Black with Machined Face
-
Inside Diameter: 87.1
-
Width: 8.5
-
Diameter: 17
-
Construction: Cast
-
Finish: Powdercoated
-
Maximum Load Rating: 2500
-
Lug Hole Quantity: 6
-
3775: No
-
Positive Offset: 6
-
3778: Yes
-
Spoke Quantity: 6
-
Offset: 6
-
TPMS Compatible: yes
-
Backspacing: 5
-
Bolt Pattern: 6 X 135
Packaging:
-
Quantity of Each: 1.0
-
Package UOM: EA
-
Dimension: x x inches
