HYBRID RACING COLD AIR INTAKE SYSTEM (02-06 RSX) - HYB-CAI-01-14
Description
Designing an intake system with a set of guidelines isn't hard to achieve. However, building an intake system that not only fits every engine combination while allowing that setup to produce more power is. We chose to narrow that field and focus on what we consider to be the best recipe for power gains. With the success of our eight generation Civic Si intake system we used what we learned and created this system for our fellow DC5 RSX owners.
Power is king. Due to size constraints inside of the DC5 chassis, the intake system was restricted to a 3-inch design. Combined with our high-flow velocity air filter, this Cold Air Intake System has shown gains of up to 10% (5-10hp) across the powerband compared to a short ram system while significantly reducing intake air temperatures. Don't want to relocate your battery? No problem. The Hybrid Racing RSX intake allows for the battery to stay in the OEM location.
The intake requires a 70mm or larger throttle body and the RBC/RRC style intake manifolds. Fitment or compatibility with an OEM PRB intake is not guaranteed.
Slight trimming of the LH inner fender lining is required, and the removal or relocation of the OEM windshield washer bottle is needed. Alterations to cars running OEM Type R brake cooling ducts may be necessary.
Part #: HYB-CAI-01-14

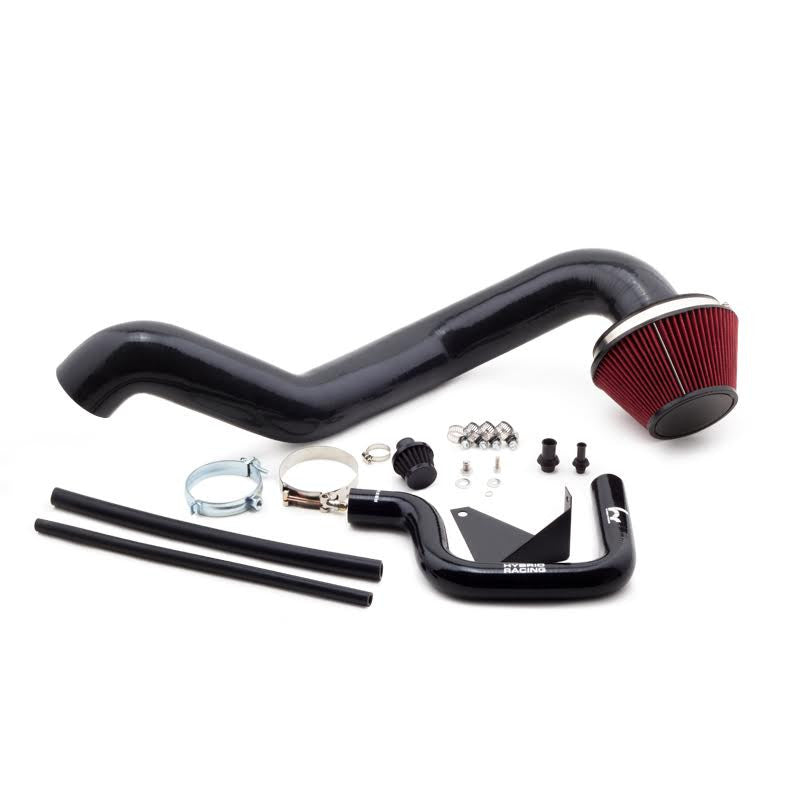

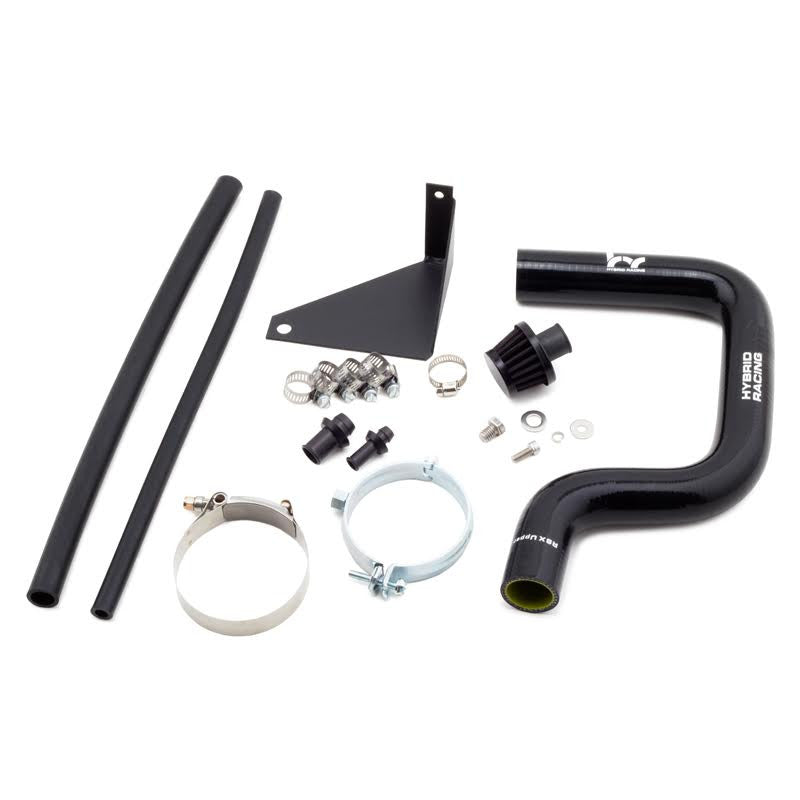

What's included?

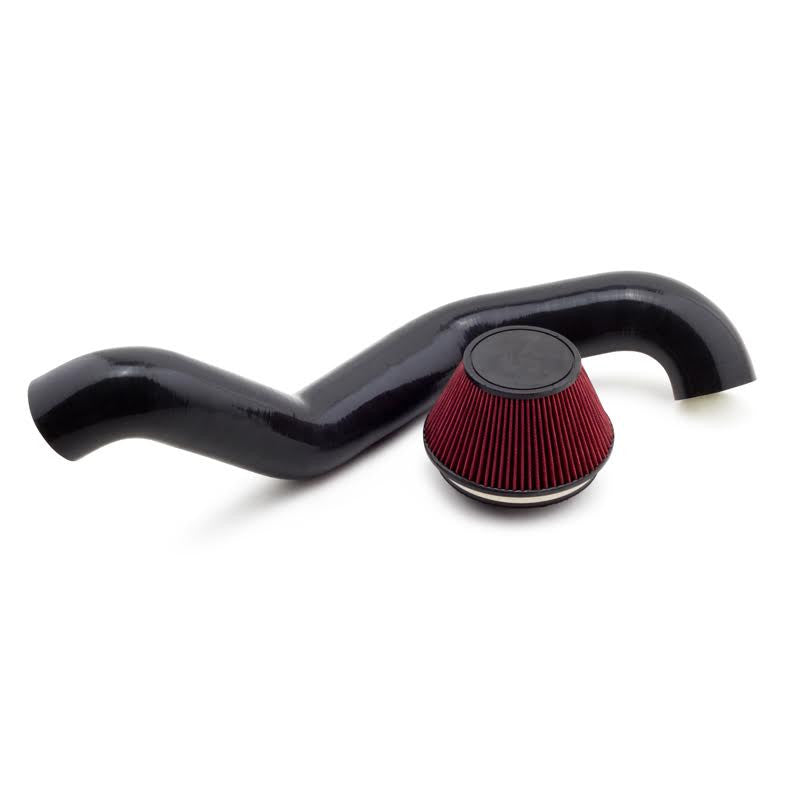

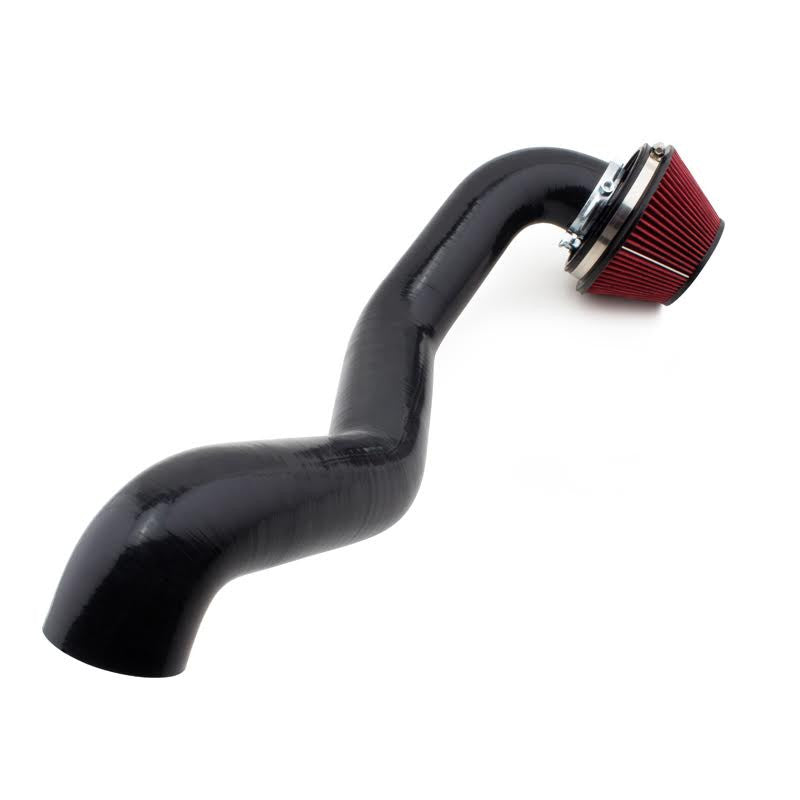

- x1 3" Hybrid Racing Silicone Cold Air Intake Tube
- x1 Velocity Stack Air Filter
- x1 Silicone upper radiator hose (for PRB style coolant neck)
- x1 Valve cover breather filter
- x1 Lower filter bracket
- x1 Anti-vibration clamp
- x1 Stainless T-bolt clamp
- x2 Silicone hoses for breather connections
- x2 Machined aluminum push-in fittings
- x5 Hose Clamps
- x2 Bolts
- x3 Washers
Fits:
02-06 Acura RSX / Honda Integra (without brake cooling ducts)
Must use RBC intake manifold & big bore throttle body
Modification to cars equipped with foglights may be required
01-05 Honda Civic Non-Si (K-Swapped)
K-Series engine swap required
Must use RBC intake manifold & big bore throttle body
Modification to the lower bracket may be required
Modification to cars equipped with foglights may be required
02-05 Honda Civic Si
Must use RBC intake manifold & big bore throttle body
Modification to the lower bracket may be required
Modification to cars equipped with foglights may be required
