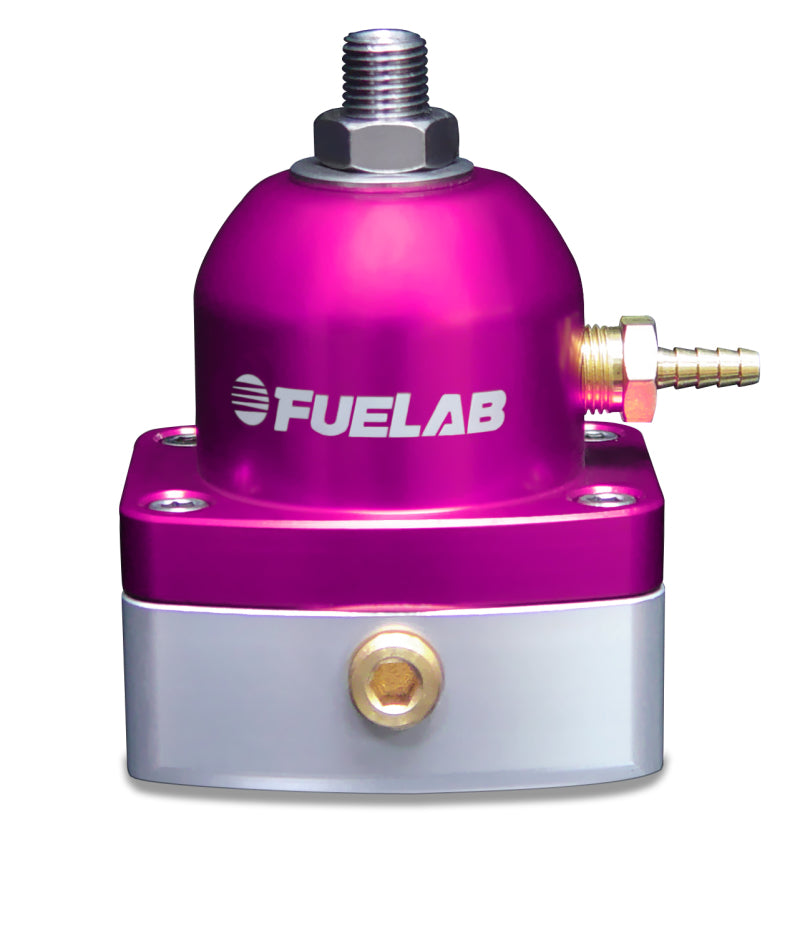

Fuelab 515 EFI Adjustable FPR 25-90 PSI (2) -6AN In (1) -6AN Return - Purple

  • $199.96
    Unit price per


Description

Fuelab 51502-4 515 Series Fuel Pressure Regulator


Products specifications
Color Purple
Range 25-90 psi
Size (2) -6AN Inlets, (1) -6AN Return
515 Series Adjustable Fuel Pressure Regulator
EFI
FUELAB 515 Series Fuel Pressure Regulators are designed with performance and flexibility in mind. They accept port style and non-port style union fittings without interference. Several configurations are available, supporting carbureted applications as low as 1 PSID to fuel injected applications up to 125 PSID. The 515 Series Fuel Pressure Regulator has a -6AN return port located on the bottom.

Fuel Pressure Regulator Features

Two -6AN or -10AN inlet ports and one -6AN return port
Gasoline, diesel, methanol, and ethanol fuel compatible
Billet Aluminum with anodize per military MIL-A-8625, Type II
Fine thread pitch for precise pressure adjustment
Versatile mounting bracket and stainless steel hardware
1/8 NPT gauge port with plug for external pressure gauge
1/8 NPT pressure reference port with barbed fitting
Backed by a 2-year limited warranty

Part #: 51502-4
