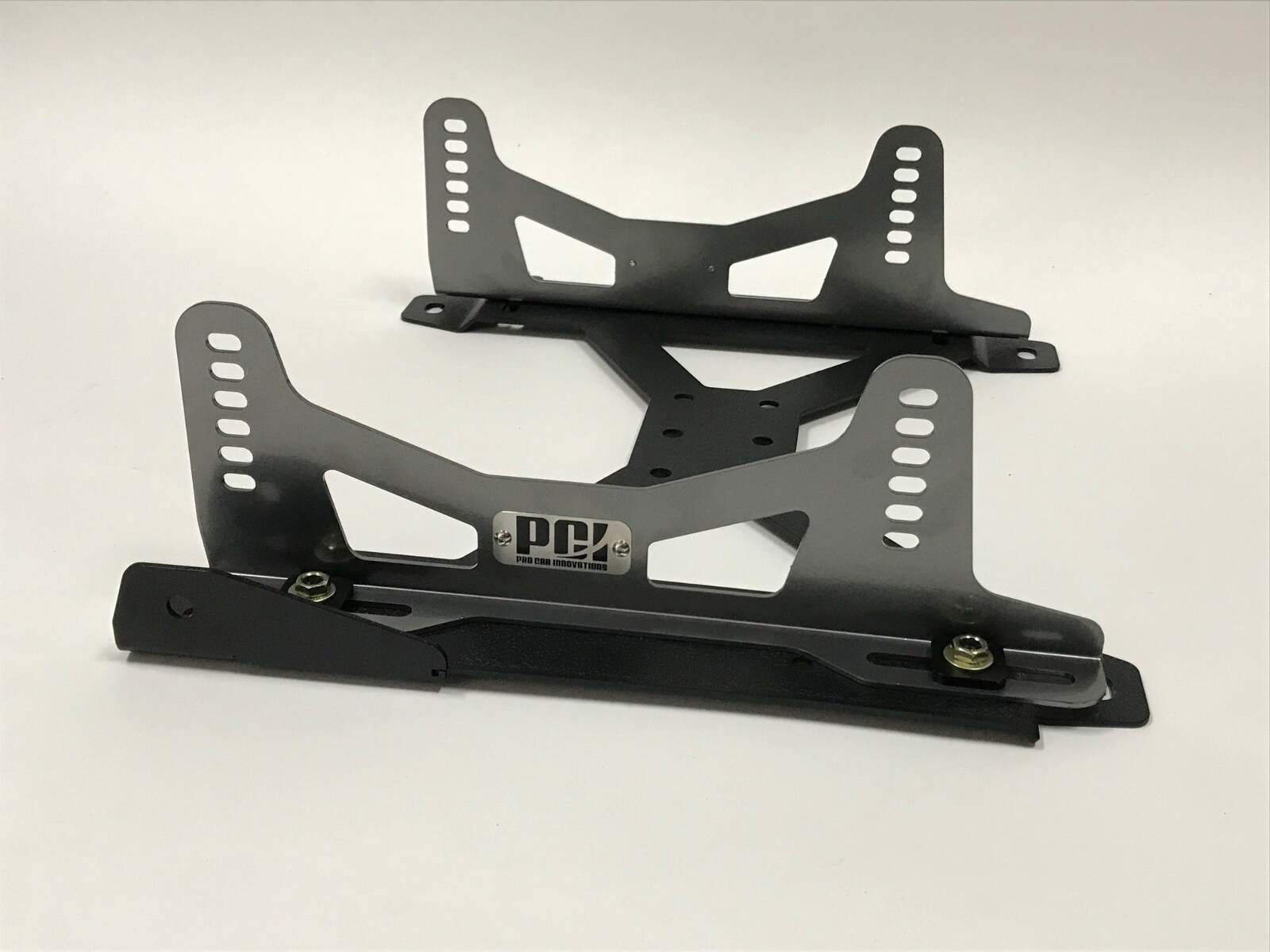

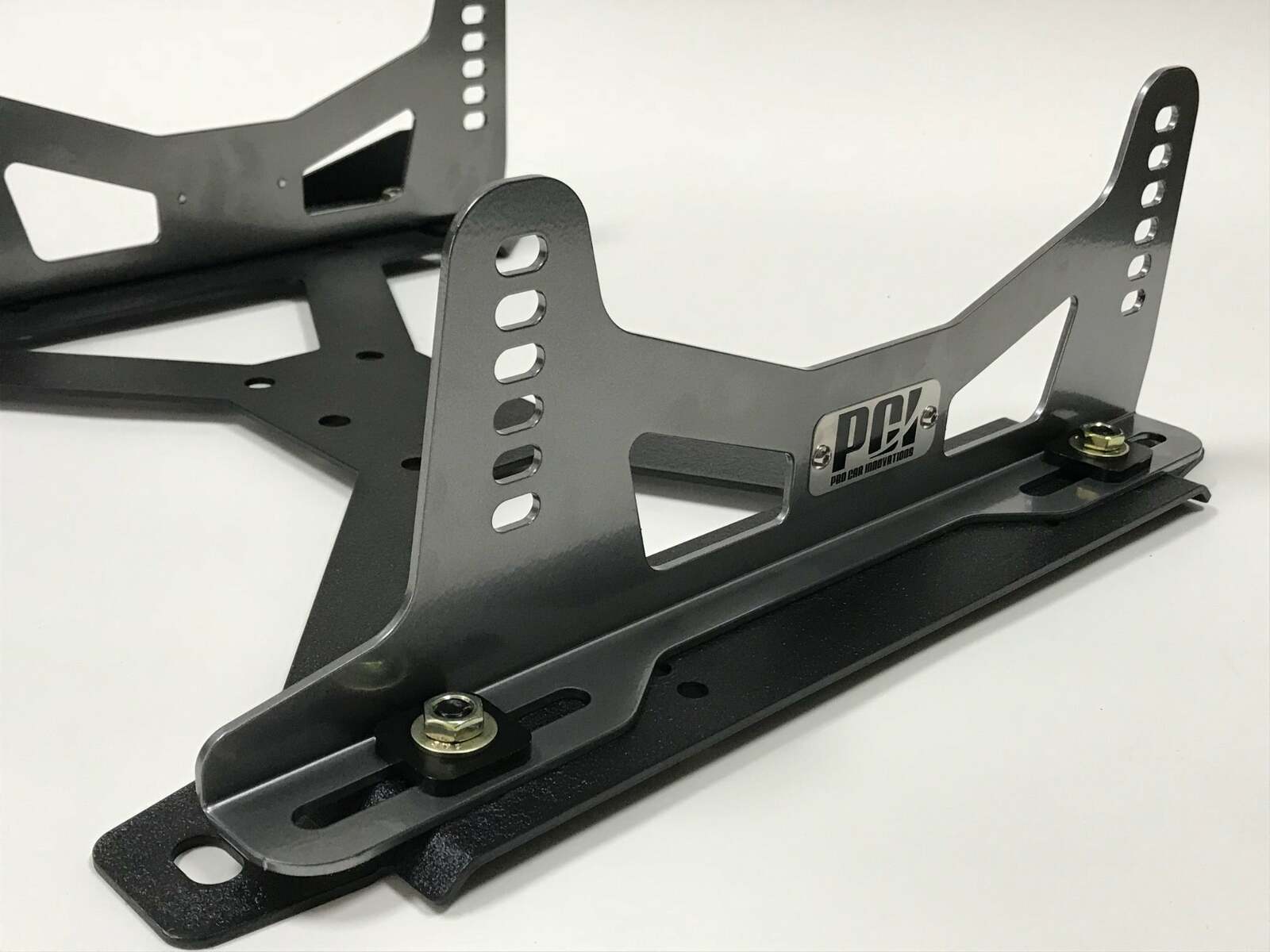

PCI ADJUSTABLE MOUNTS
Wondering how to mount that new race seat? Pro Car Innovations Adjustable Seat Mounts takes the guessing game out of this install. Finding the correct seat brackets can be almost impossible where most end up with a self-fabricated mount. PCI has invested the research in order to create an ingeniously crafted safe design that?s easily adjustable to accommodate multiple applications. The PCI Racing Spec Seat Mount Has the largest range of adjustment and lowest possible seat fitment of our seat mount line.
1/8? steel vs. 3/16? steel
Our mounts are laser cut and cnc formed completely from one piece for strength, stiffness and weight savings. With our design we can achieve the same strength if not more than 3/16? steel by having bends and altering the shape to areas where increased strength and stiffness is required. So don?t be fooled by thicker heavier steel is better. 3/16? steel is more widely used for the simplicity of design and manufacturing. When you weld on the mounting legs 3/16? steel is your only design option. Our mounts exceed the strength of the seat and floor they?re bolted to.
Features
Precision CNC laser cut and bent from one piece of 1/8? 3mm carbon steel

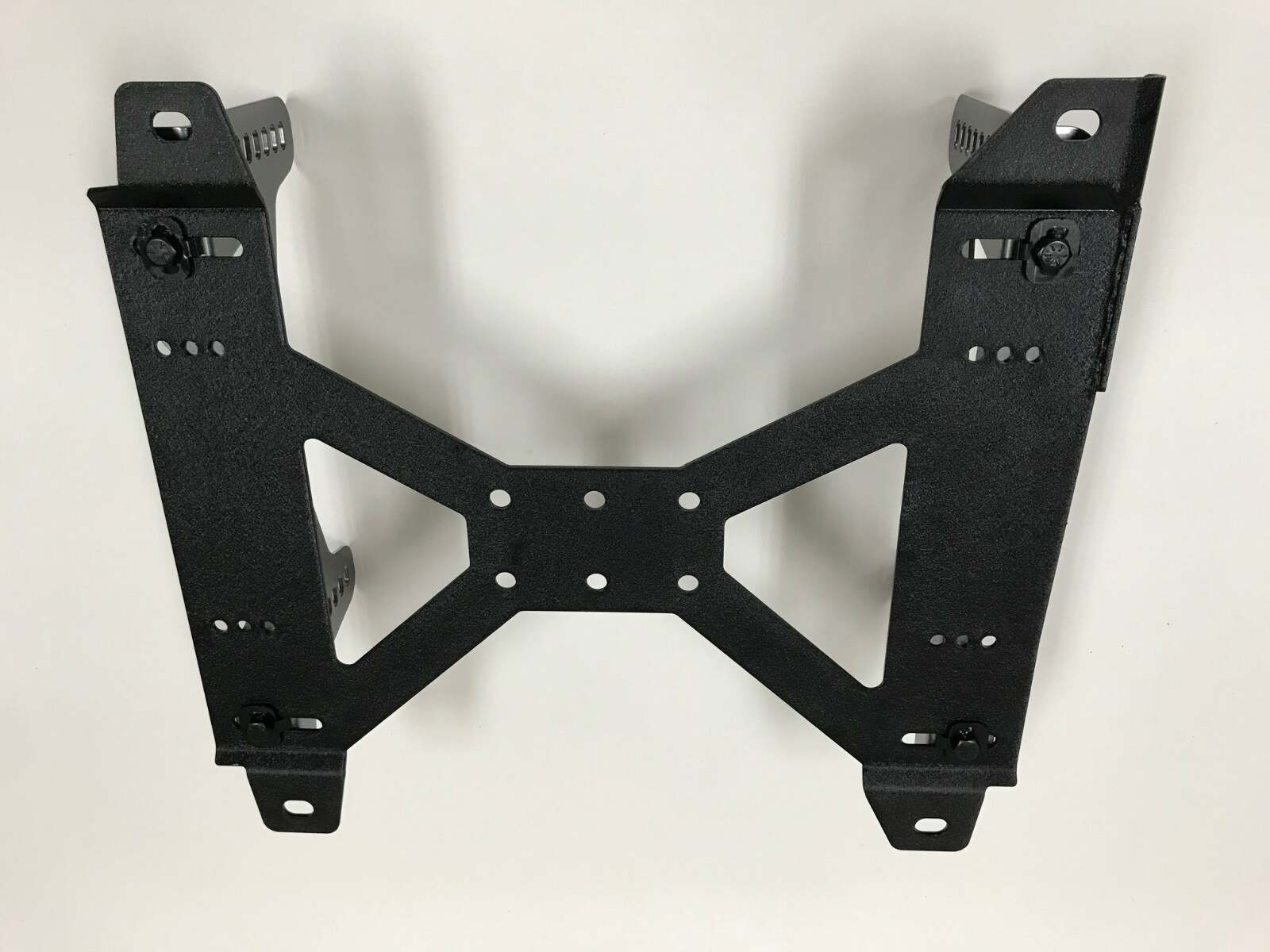

One piece mounting base design
Multi direction adjustability
5 and 6 point sub belt mounting locations

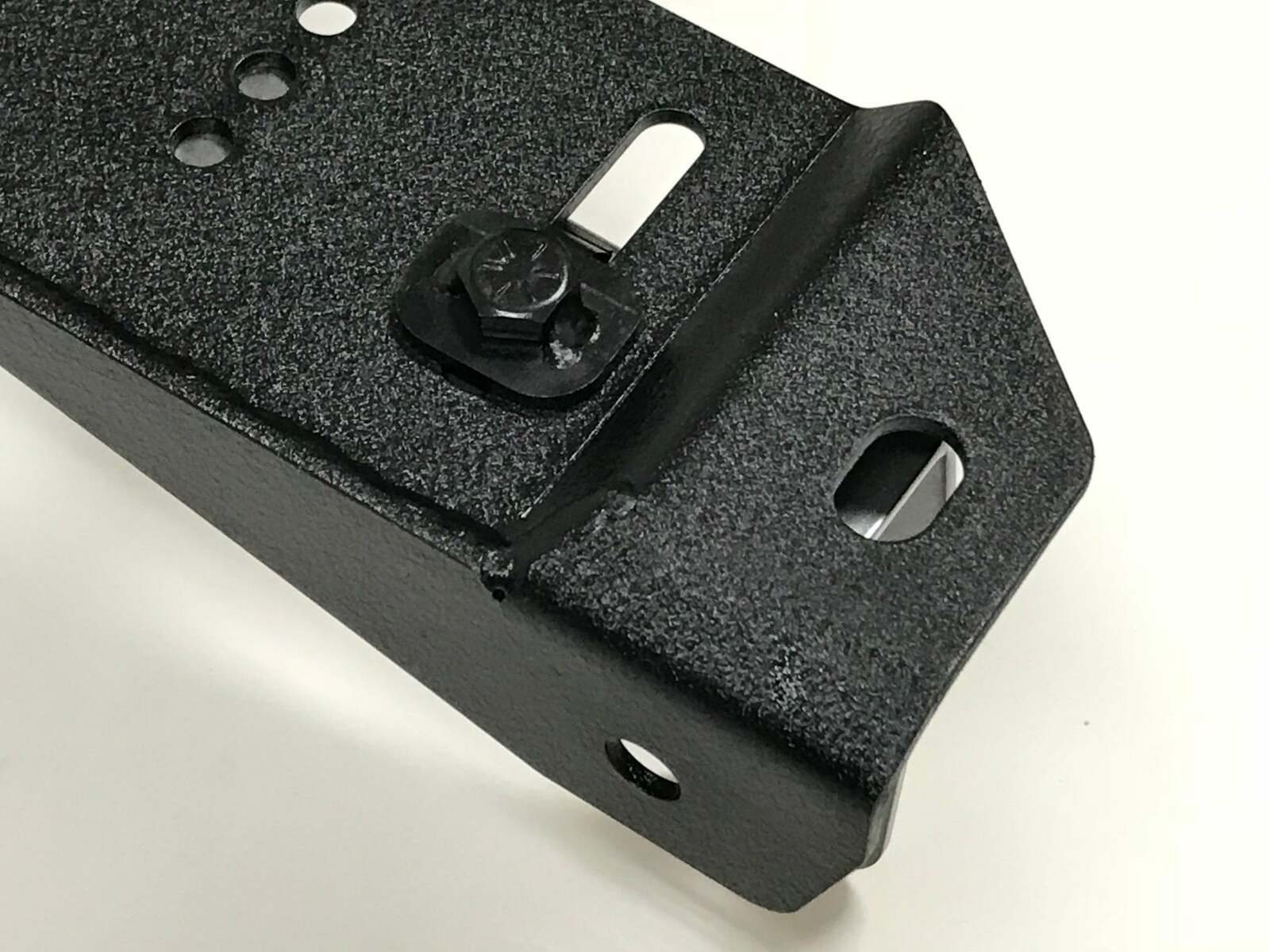

Single tool adjustments with bottom locking hardware
Zinc plated grade 8 hardware
Powder coated mounting base and side mounts
Stainless steel laser etched bolt on logo plates
1/4? x1.25? round black nylon side mount spacers included in kit
Benefits
CNC bent one piece design allows for use of lighter 1/8? steel vs. heavy 3/16?
Uniquely designed for each vehicle for the best possible fitment
Mounts to factory bolt locations with precise factory fitment
5 and 6 point sub belt mounting
Hassle free easy installation
Custom side mount options available
Specs
3mm carbon steel
CNC laser cut, CNC bent
Gloss black metallic powder coat
Zinc plated grade 8 hardware
12 5/8?? (320mm) to 19 1/2? (495mm) width adjustments for most applications. **All MX5 mounts are 1? narrower**
6?? (152mm) range front to back adjustment
All adjustable seat mounts will come standard with side mount SM-SIDE-A1 To order with a different side mount visit the side mount category to pick a different side mount. Upon check out add a message with the part number of the side mount you want with your kit.
Please contact sales@procarinnovations.com for any questions or applications not listed.
