Manley Forged I-Beam Connecting Rods Honda 93-01 H22 2.2L V-Tec 14417-4

$904.90
Unit price per

Description

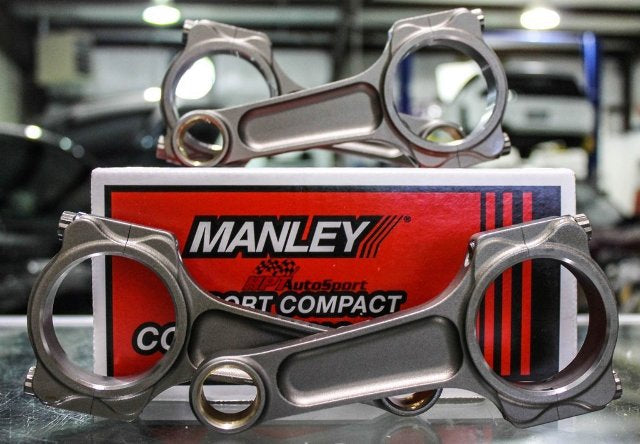

Manley Performance manufactures the finest steel connecting rods in the Sport Compact industry. These Pro Series connecting rods are forged from aircraft quality 4340 vacuum degassed material. Each rod is fully machined in the Manley Lakewood, NJ factory to the highest standards. The signature "Turbo Tuff" design combines the appropriate weight and rugged strength for ultimate horsepower applications. Each rod is shot peened after machining and magnafluxed. Bores are round and without taper. Bend and twist is tightly controlled. Cap fasteners are 3/8" APR 2000 cap screws.

On all Manley connecting rods, sets are weight matched to �?_ 1.5 grams, big and small end bores are final honed to a tolerance of �?_ .0002", critical bend and twist attributes are held to a minimum, and exacting attention is paid to every detail by the final inspection department; thus rendering a finished product that is second to none.

All Manley Performance I-Beam Rods are rated up to 1,000 horsepower with ARP 2000 fasteners, or 1,200+ with available ARP 625+ fasteners.

I-Beam Rod Specifications:

Center-to-Center : 5.636"
Big End Bore : 2.008"
Big End Width : .935"
Pin Diameter : .866" (22mm)
Pin Bore : .8671"
Weight : 614 grams

Part Number: 14417-4

Application:

1993-2001 Honda H22a-a4
